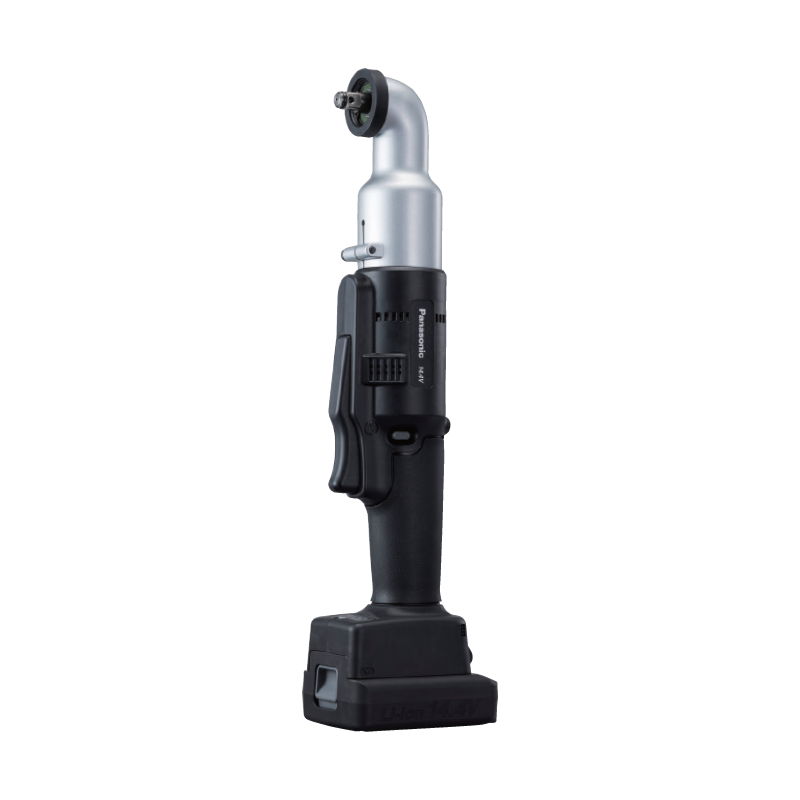

Cordless Shut-Off Angle Impact Wrench
Low Noise Impact Wrench
FEATURES
Precision You Can Trust
01

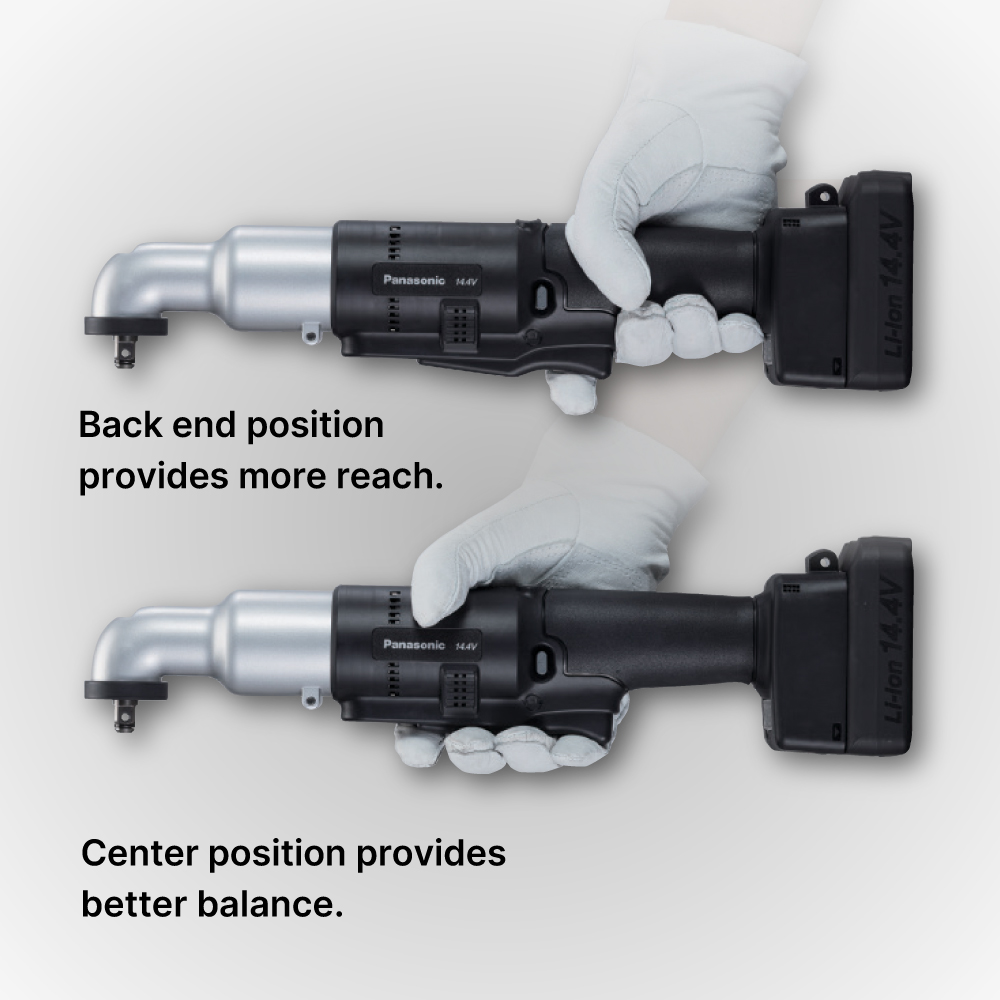

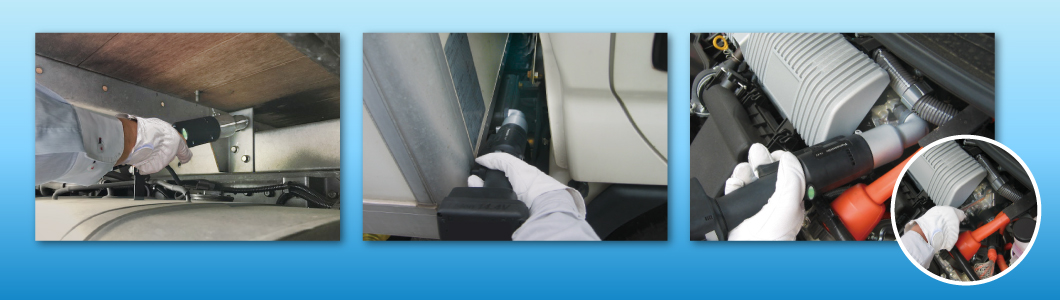

Compact and slim right angle tool
Efficient Performance with Cordless Convenience
Compact and slim right angle tool with advanced ergonomics to help improve your work efficiency
More Features
Explore Enhanced Functionality

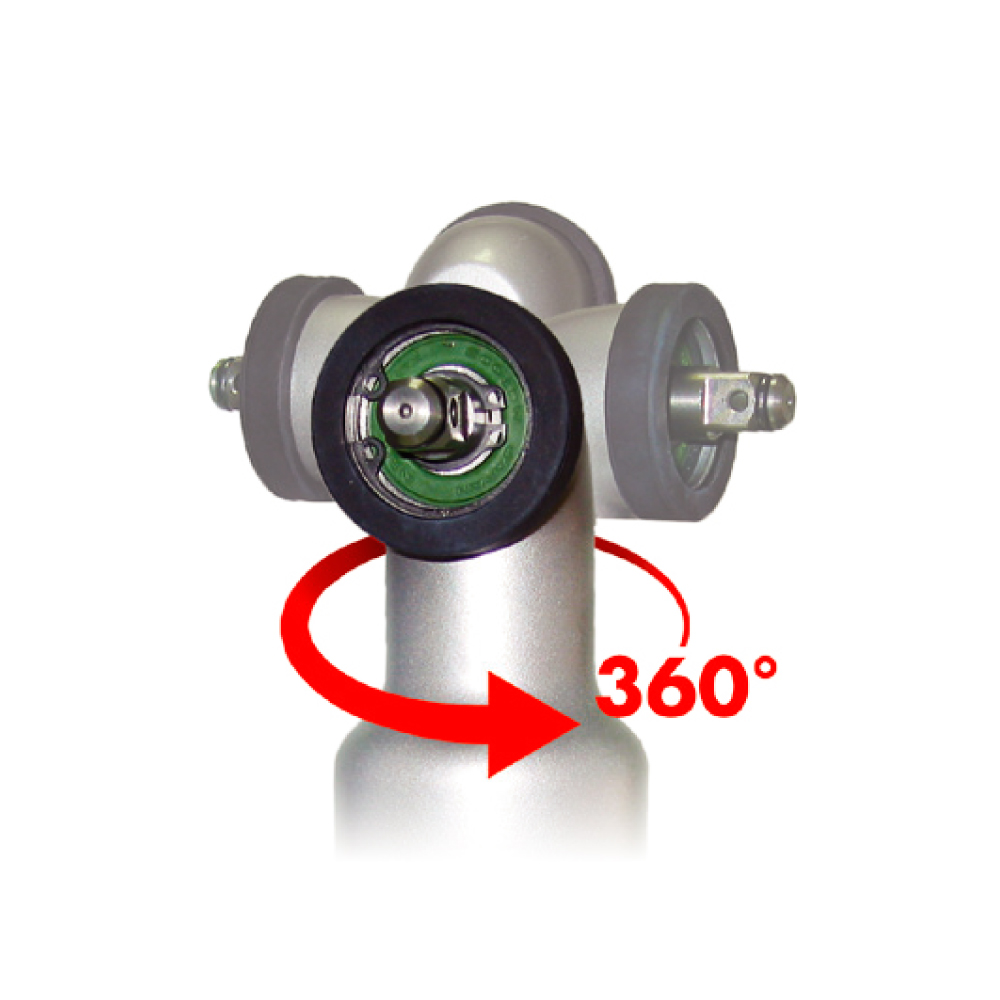

360° Rotating Head
(90°step size)

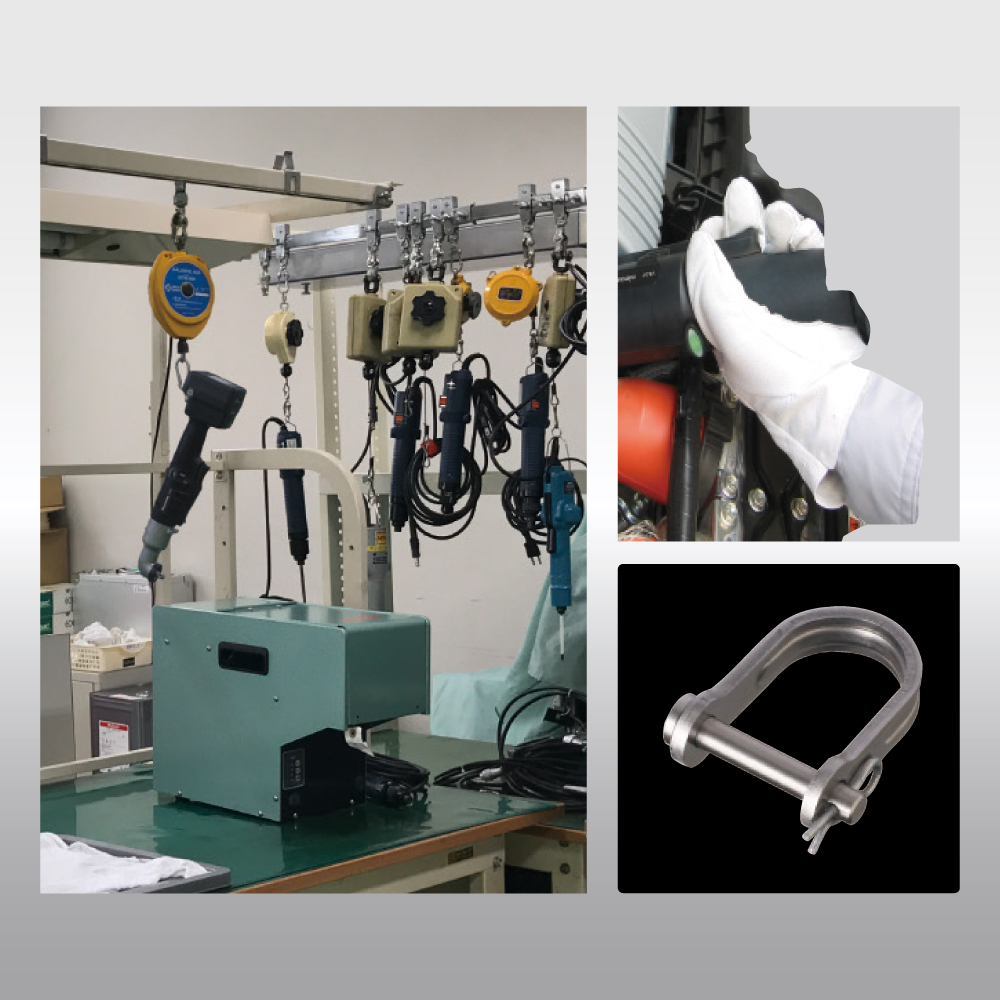

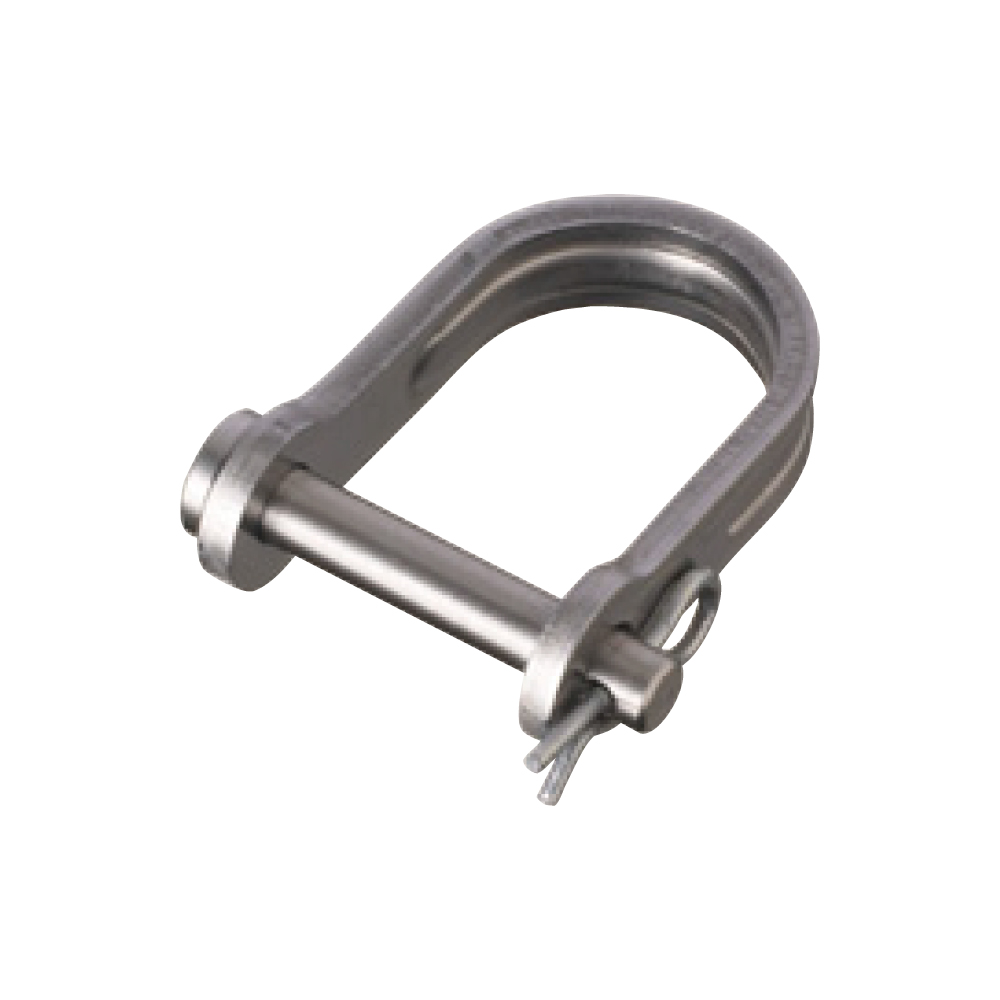

Tool Hanger
The tool can be hanged on the balancer.

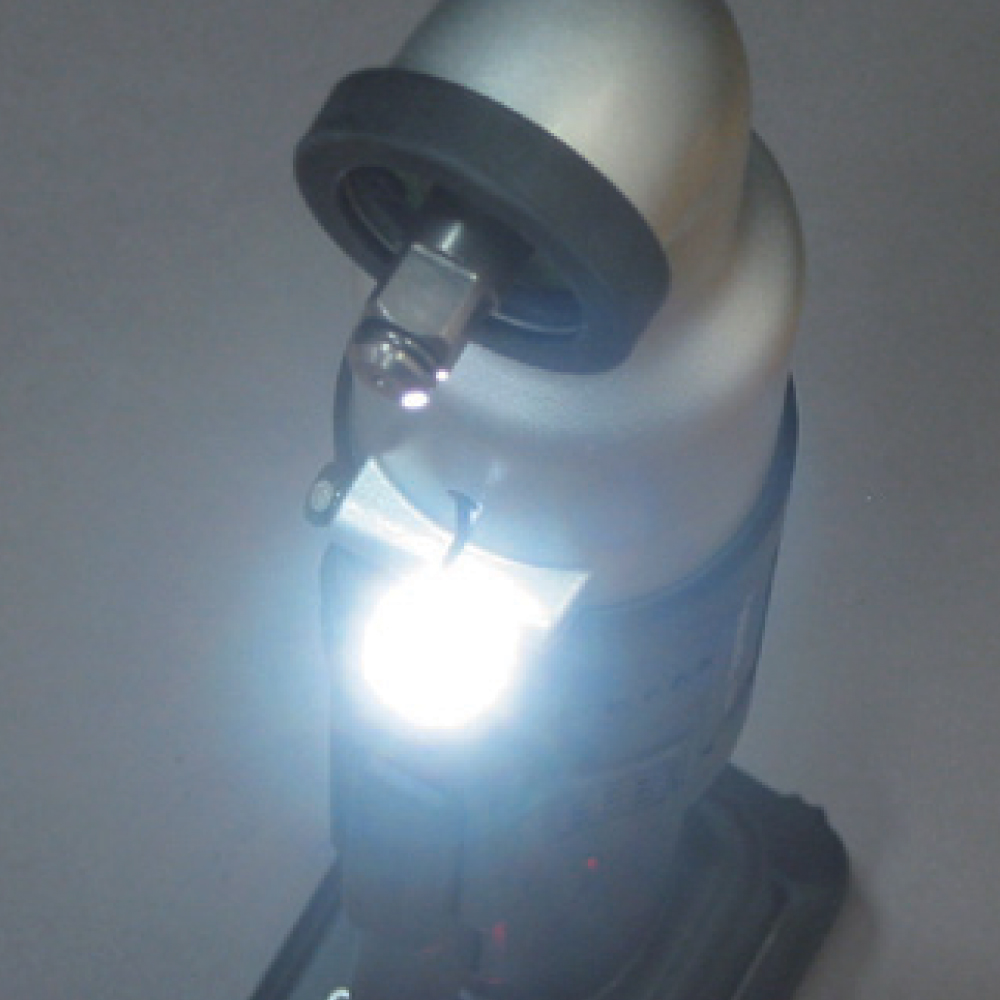

LED Light
For operations in dimly lit place.

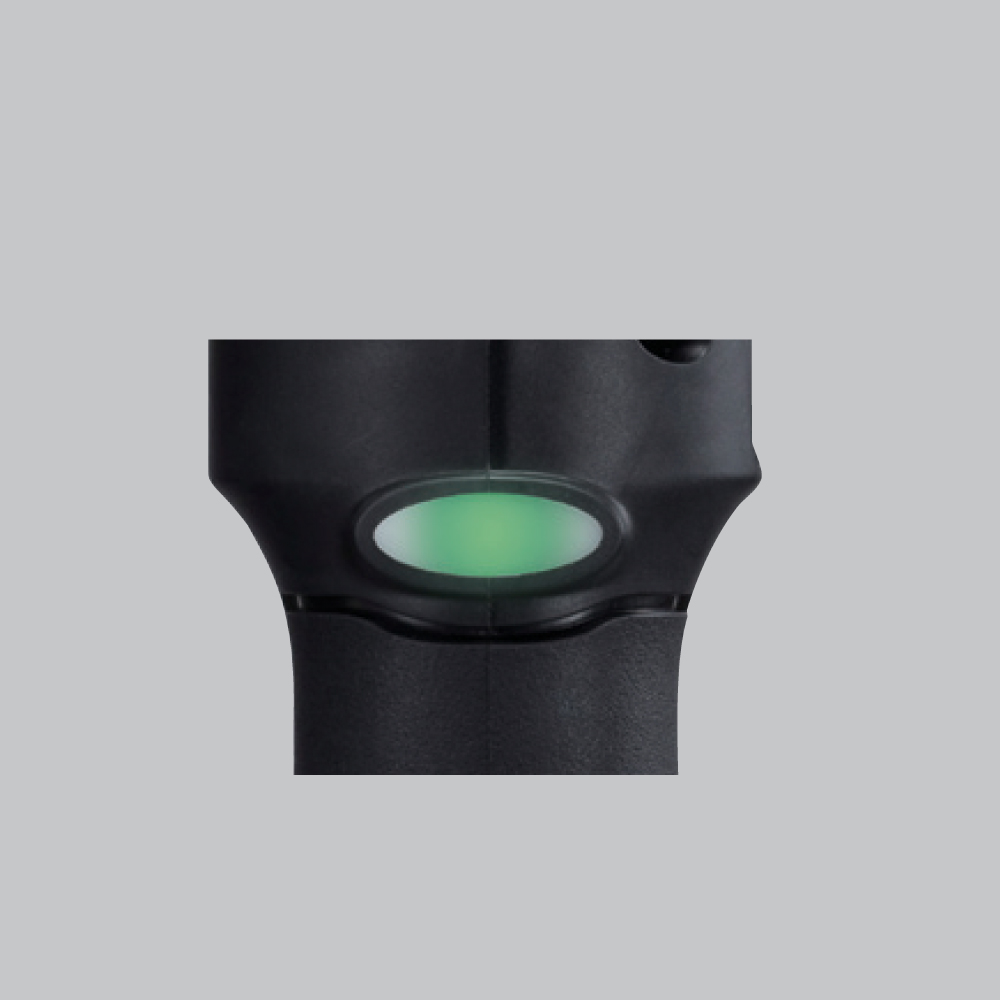

Tightening Confirmation Lamp
Green light indicates tightening is completed.

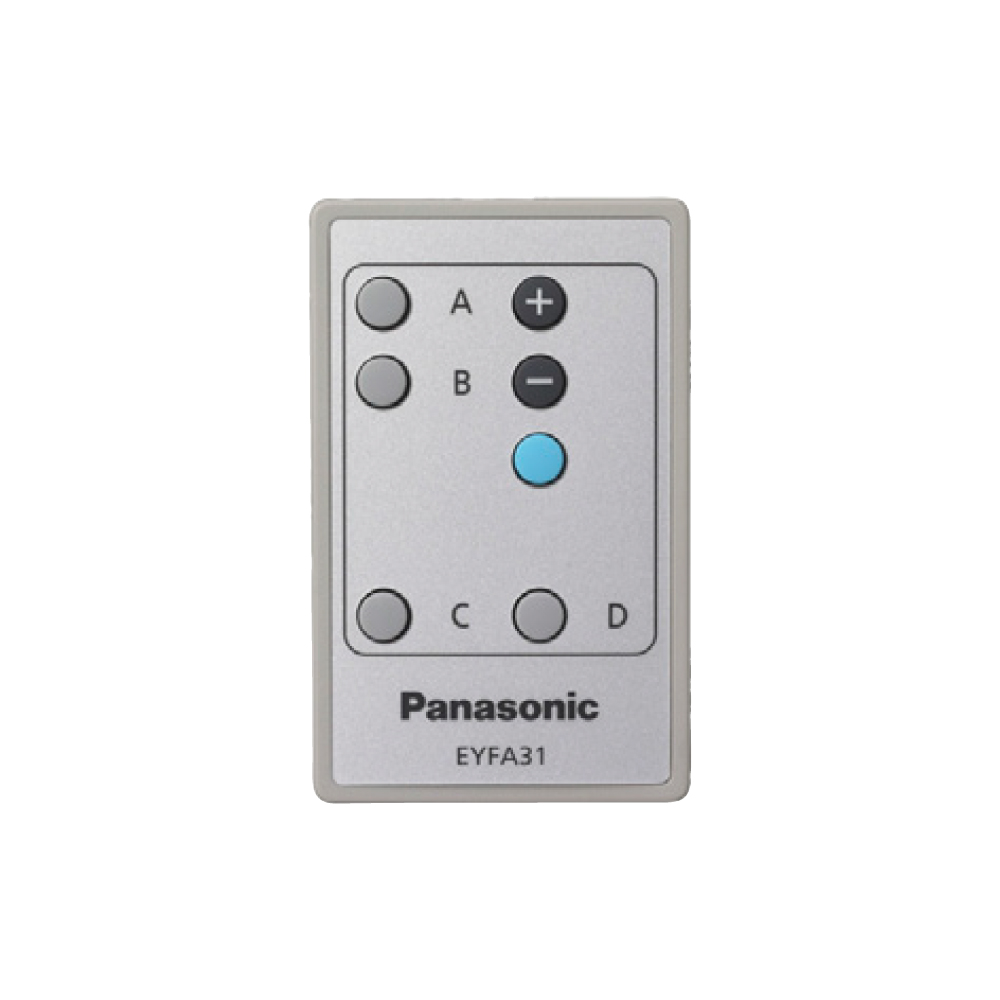

Remote Control
Tool setting can be set only by remote control.
PRODUCT SPECIFICATION
14.4V Shut-off Right Angle Impact Wrench
02
|
Cordless Right Angle Impact Wrench | ||||
| EYFME1C | |||||
14.4V
Brushless

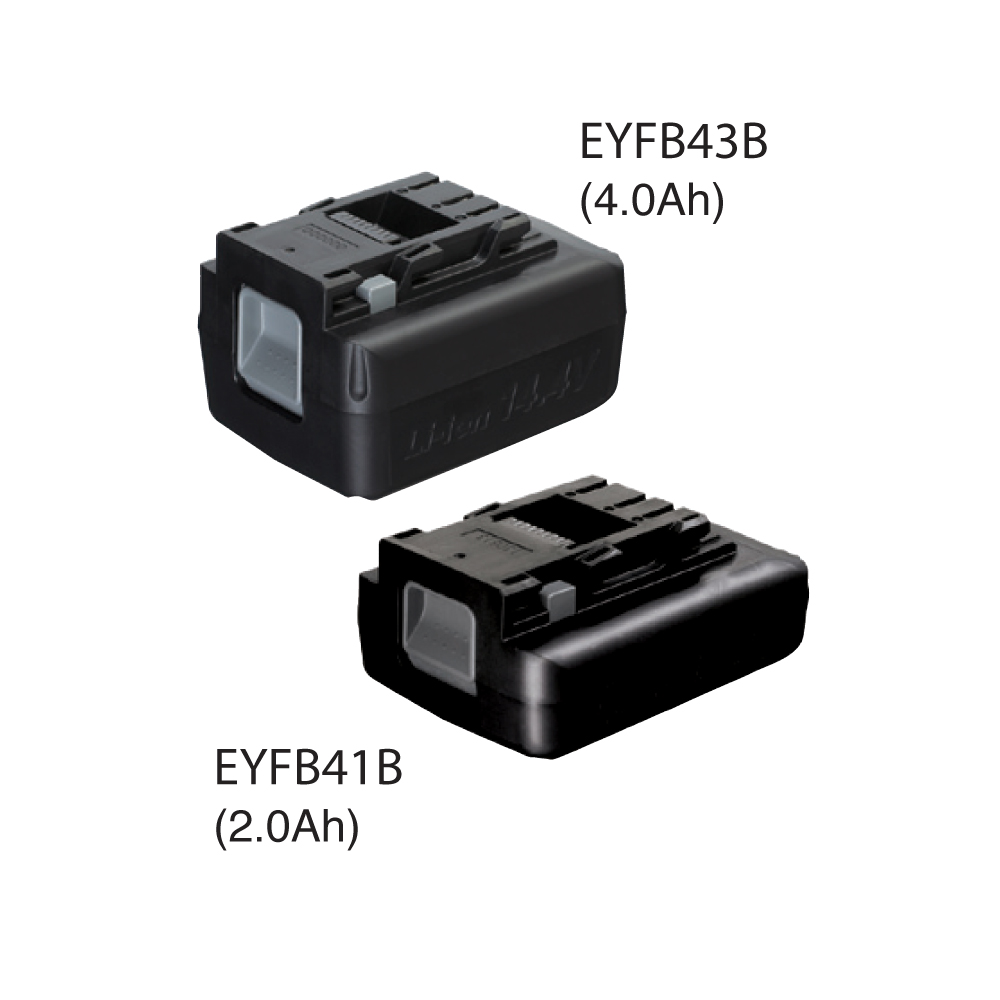

Motor 4.0Ah
2.0Ah
*Battery pack is not included |
|||||
| Chuck / Anvil type | 9.5mm Sq. drive Retainer ring and Pin-hole | ||||
|---|---|---|---|---|---|
| Application | M6 bolt (Tensile bolt), M8 bolt (Normal-Tensile bolt), M10 bolt (Normal bolt) | ||||
| Maximum torque | approx.80 N·m (M12 , F mode, fastening 3sec.) | ||||
| Shut-off range | approx. 10 ~ 53 N·m | ||||

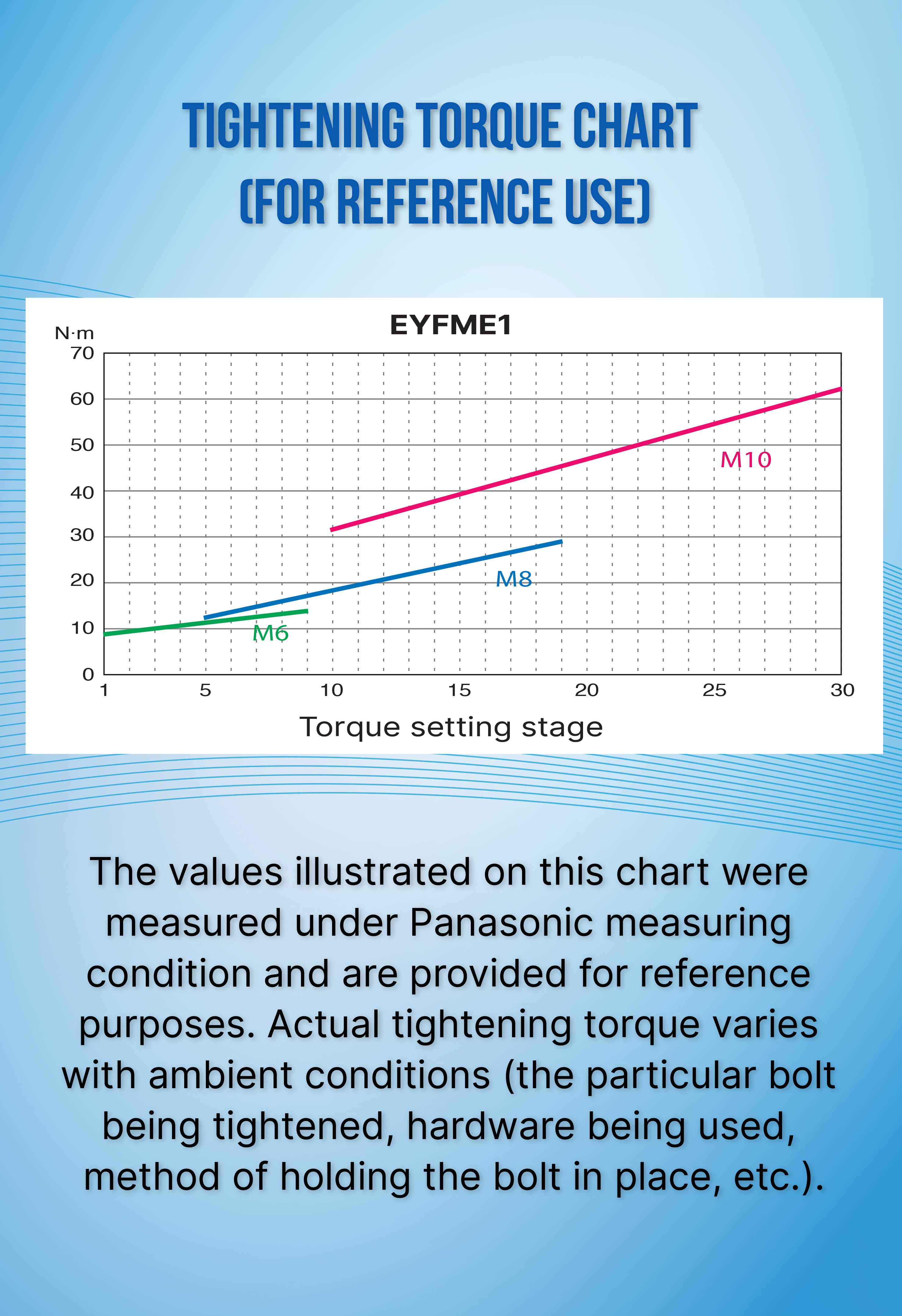

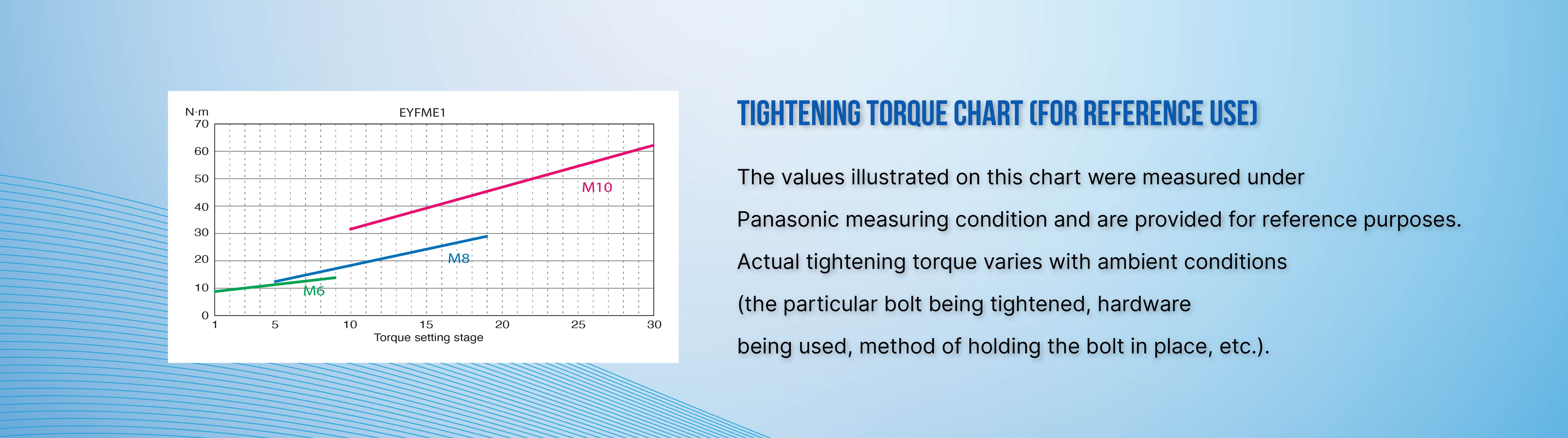

| Torque setting | 30 stage + F (without torque setting mode) | ||||
| Snug torque detection mode setting |
L1: For lighter loads during fastener run down L2: For prevailing torque during run down and varying joint rate applications | ||||
| No load speed (unit : rpm) | 0 ~ 2300 | ||||
| Impact per minute | 0 ~ 3500 | ||||
| Weight*1 (inc. battery) |
approx. 1.5kg (EYFB41B), approx. 1.7kg (EYFB43B) | ||||

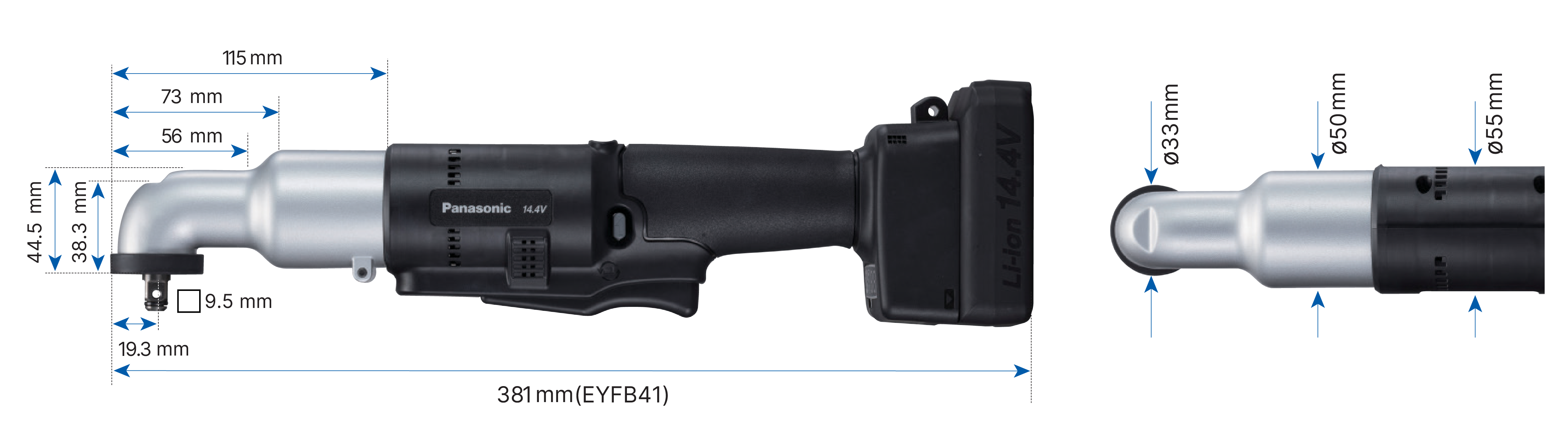

| Size | Length | 381mm (EYFB41B), 399mm (EYFB43B) | |||
| Height | approx. 96mm (Height of battery pack: approx. 101mm) | ||||
| Width | approx. 60mm (Width of battery pack: approx. 75mm) | ||||
| Function | Torque Adjustment | ✓ | |||
| Cross thread reduction | ✓ (The tool rotates approx. 360 degree in reverse before fastening starts. Possible to choose ON/OFF) | ||||
| Rundown error detecting | ✓ (Alert with Red light. Possible to set between 0 ~ 3 sec.. 0.1 sec. per stage) | ||||
| Maintenance interval alarm function | ✓ (Possible to set between 0 - 99hours. 1hour per stage) | ||||
| Retightening prevention function | ✓ (Possible to set between 0 ~ 0.9sec.. 0.1 sec. per stage) | ||||
| LED light | ✓ (Possible to choose from the 2 LED light modes. by ON/OFF switch or trigger switch interlocked) | ||||
| Buzzer | ✓ (Possible to choose from the 3 buzzer modes, No buzzer, buzzer with OK or buzzer with NOK) | ||||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp. NOK fastening: Red lamp) | ||||
| Battery indication lamp | ✓ (3 stage) | ||||
| Auto battery shut down | ✓ | ||||
| Work capacity / Fastening speed | <M10: 53 N·m, Stage: 25> (EYFB41B) approx. 120 pcs/pack, approx. 2.2 sec/1pcs (EYFB43B) approx. 210 pcs/pack, approx. 2.2 sec/1pcs |
||||
| Charging time |
(Battery Pack EYFB41, Charger EY0L82B) Usable Charge: approx. 35min., Full Charge: approx. 40min (Battery Pack EYFB43, Charger EY0L82B) Usable Charge: approx. 45min., Full Charge: approx. 60min |
||||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

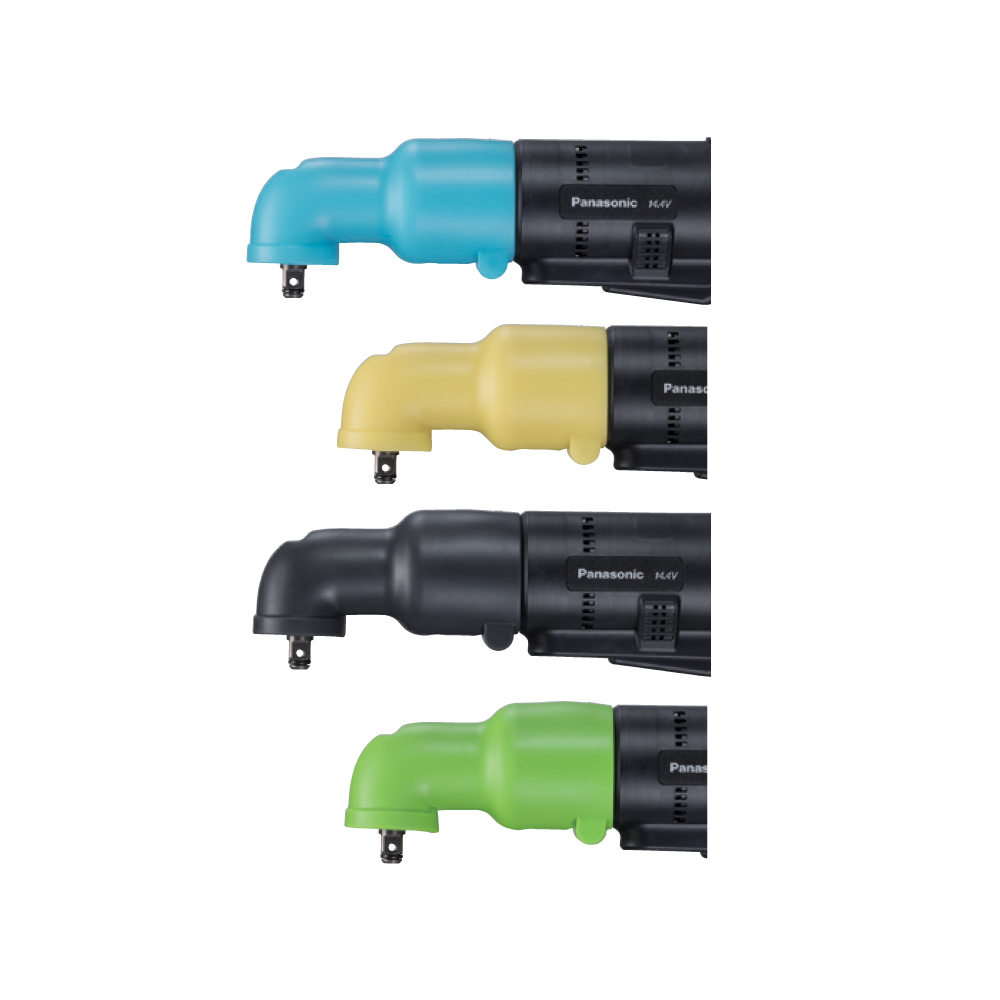

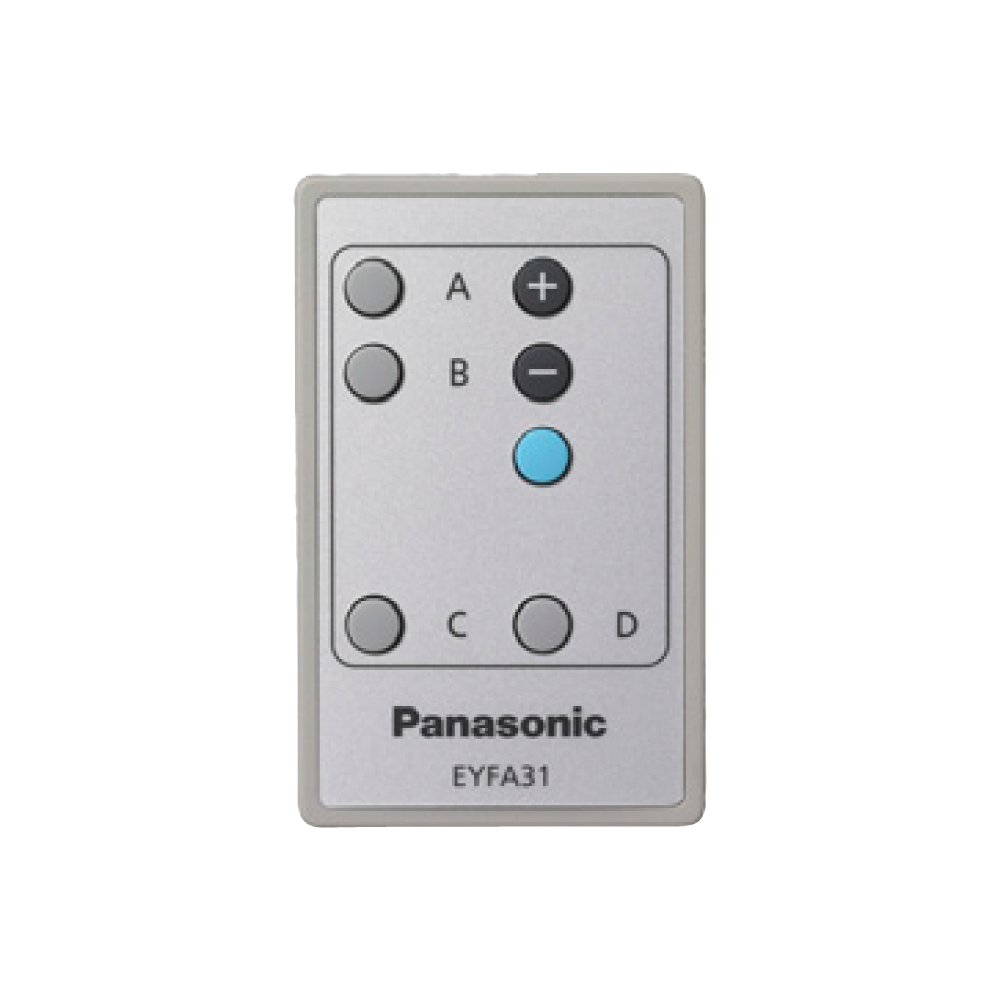

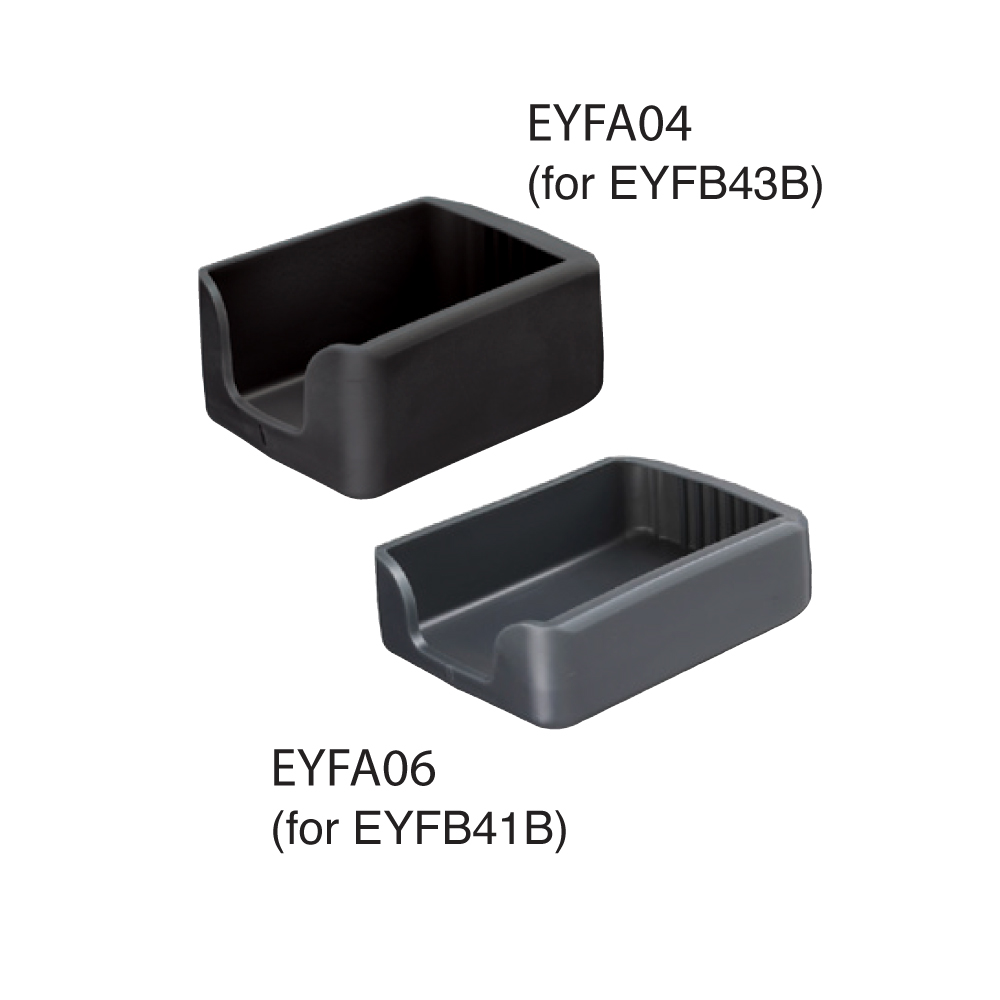

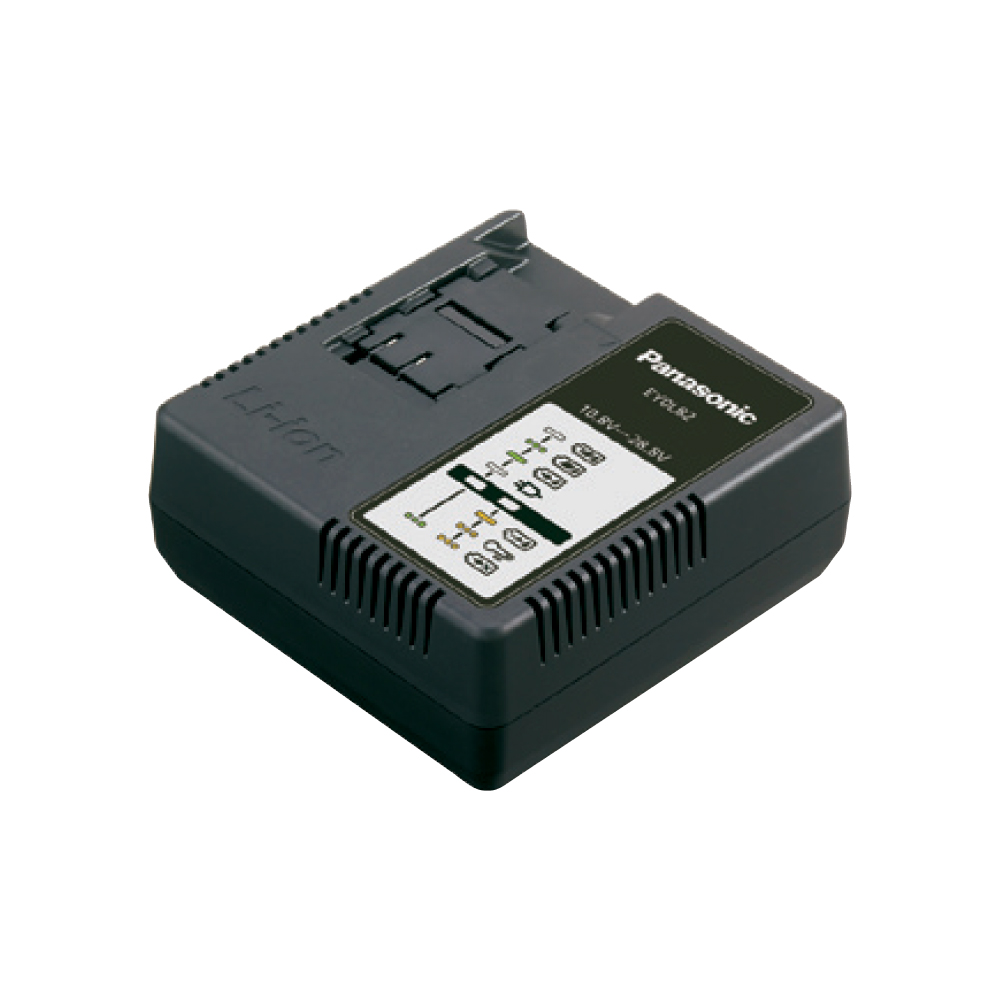

Optional Accessory
