Impact Driver & Wrench without Torque Control
PRODUCT SPECIFICATION
01
10.8V Impact Driver & Wrench without Torque Control
|

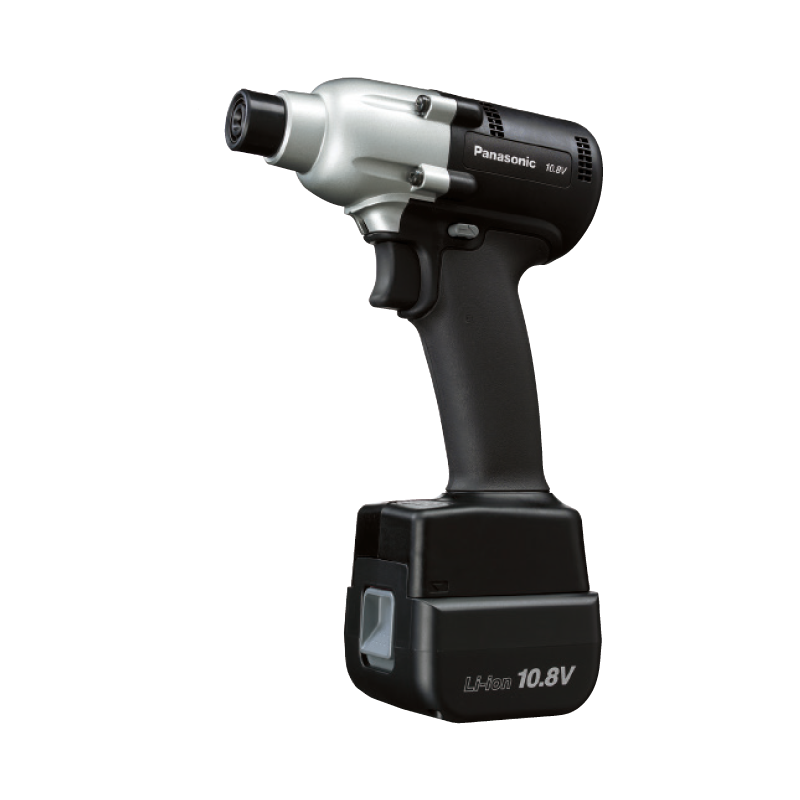

Cordless Impact Driver | Cordless Impact Driver / Wrench | ||
| EYFME1C | EYFLB2A / EYFLB2Q | EYFLB3A / EYFLB3J | ||
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
||
| Chuck / Anvil type | 1/4” Hex quick change |
A: 1/4” Hex quick change Q: 9.5mm Sq. drive Pin-hole |
A: 1/4” Hex quick change J: 12.7mm Sq. drive Pin-hole |
|
|---|---|---|---|---|
| Application |
Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) |
6 bolt (Tensile bolt) M8 bolt (Normal bolt) |
M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
|
| Maximum torque (F mode, fastening 3 sec.) |
approx. 40 N·m (M10 bolt) |
approx. 90 N·m (M14 bolt) |
approx. 120 N·m (M14 bolt) |
|
| No load speed (unit : rpm) | 0 ~ 2300 | |||
| Impact per minute | 0 ~ 4000 | 0 ~ 3600 | 0 ~ 3000 | |
| Weight*1 (inc. battery) |
EYFB30B | approx. 1.3kg | approx. 1.4kg | |
| EYFB32B | approx. 1.15kg | approx. 1.25kg | ||
| EYFB43B | — | — | ||
| EYFB41B | — | — | ||
| Size | Length | 158mm | A: 158mm / Q: 164mm | A: 158mm / J: 172mm |
| Height | 248mm (EYFB30B), 231mm (EYFB32B) | |||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | |||
| Function | LED light | ✓ (ON/OFF switch, Light off after five minutes automatically) | ||
| Battery indication lamp | ✓ (3 stage) | |||
| Auto battery shut down | ✓ | |||
| Work capacity / Fastening speed | <M6: 10 N·m> (EYFB30B) approx. 1150 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 770 pcs/pack approx. 0.7 sec/1pcs |
<M8: 23 N·m> (EYFB30B) approx. 740 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 500 pcs/pack approx. 0.8 sec/1pcs |
<M10: 43 N·m> (EYFB30B) approx. 480 pcs/pack approx. 0.9 sec/1pcs (EYFB32B) approx. 320 pcs/pack approx. 0.9 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
|||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.
|
|

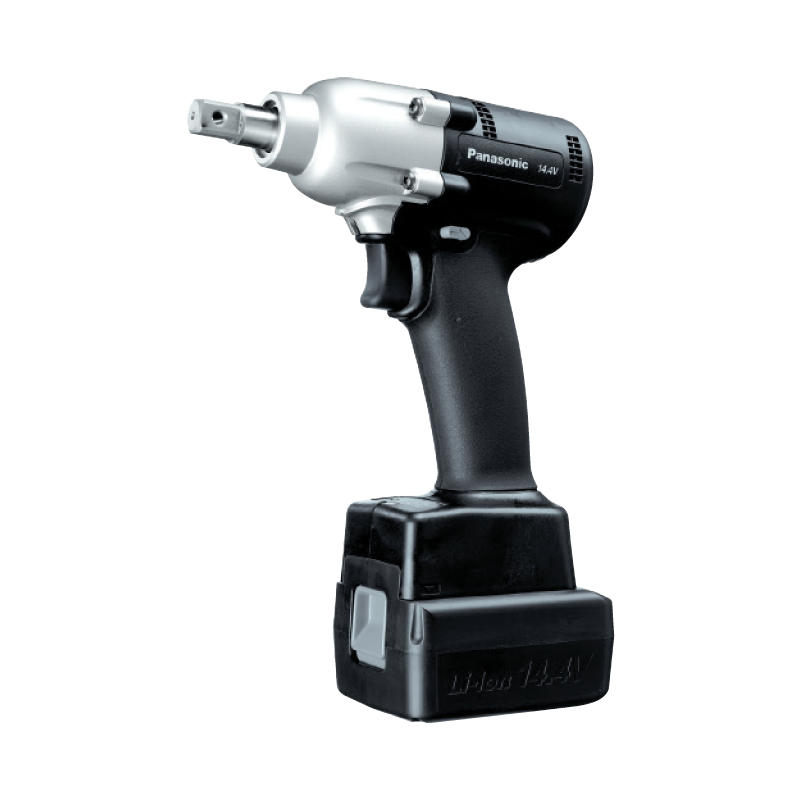

Cordless Impact Wrench | Cordless Oilpulse Driver | ||
| EYFMB1B / EYFMB1J | EYFLC1A | |||
14.4V
Brushless
Motor 4.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
|||
| Chuck / Anvil type |
B: 12.7mm Sq. drive Ball-detent J: 12.7mm Sq. drive Pin-hole |
1/4” Hex quick change | ||
|---|---|---|---|---|
| Application |
M10 bolt (Tensile bolt) M12 bolt (Normal-Tensile bolt) M14 bolt (Normal bolt) |
Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) |
||
| Maximum torque (F mode, fastening 3 sec.) |
approx. 185 N·m (M16 bolt) |
approx. 27 N·m (M8 bolt) |
||
| No load speed (unit : rpm) | 0 ~ 2300 | 0 ~ 3150 | ||
| Impact per minute | 0 ~ 3200 | 0 ~ 1850 | ||
| Weight*1 (inc. battery) |
EYFB30B | — | approx. 1.45kg | |
| EYFB32B | — | approx. 1.3kg | ||
| EYFB43B | approx. 1.5kg | — | ||
| EYFB41B | approx. 1.3kg | — | ||
| Size | Length | 172mm | 158mm | |
| Height | 248mm (EYFB43B), 231mm (EYFB41B) | 248mm (EYFB30B), 231mm (EYFB32B) | ||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | |||
| Function | LED light | ✓ (ON/OFF switch, Light off after five minutes automatically) | ||
| Battery indication lamp | ✓ (3 stage) | |||
| Auto battery shut down | ✓ | |||
| Work capacity / Fastening speed | <M12: 71 N·m>, Stage: 22 (EYFB43B) approx. 670 pcs/pack approx. 0.9 sec/1pcs (EYFB41B) approx. 350 pcs/pack approx. 0.9 sec/1pcs |
<M6: 10 N·m> (EYFB30B) approx. 720 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 480 pcs/pack approx. 0.7 sec/1pcs |
||
| Charging time |
(Battery pack EYFB43B, Charger EY0L82B) Usable Charge: approx. 45 min. Full Charge: approx. 60 min (Battery Pack EYFB41B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

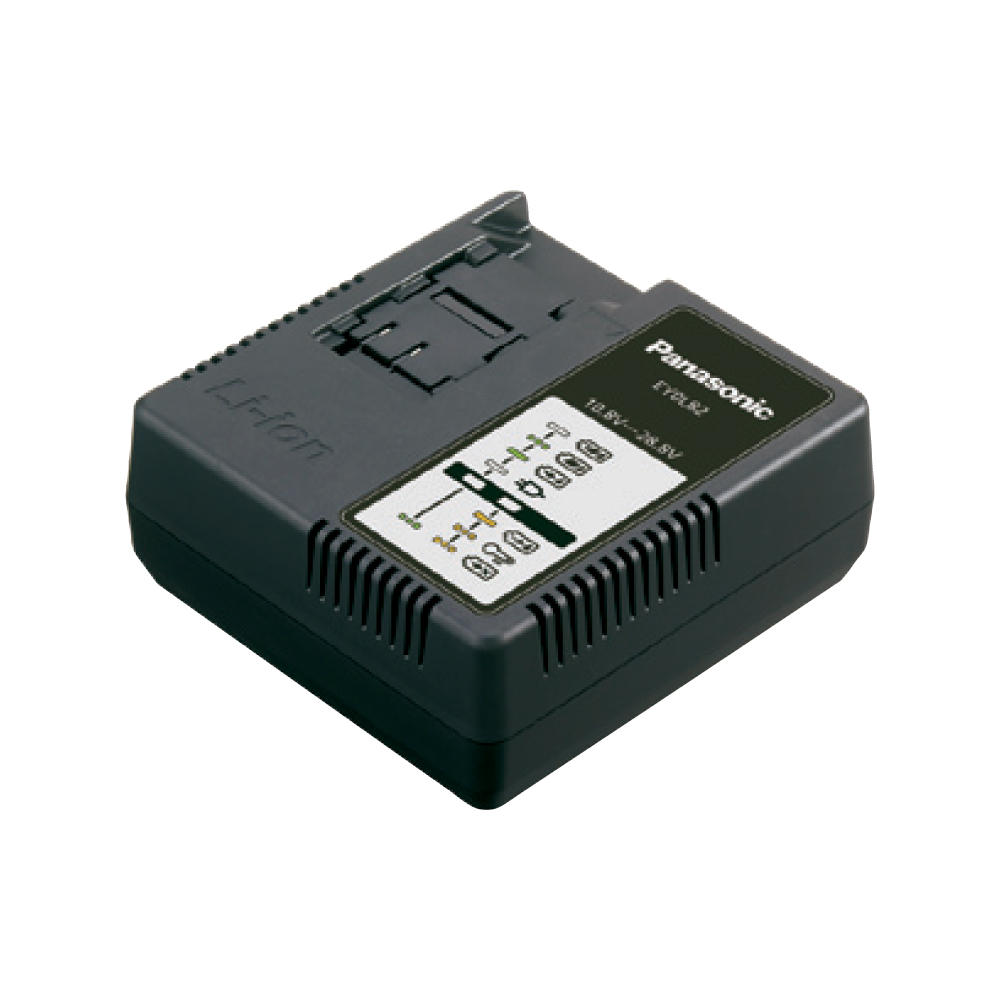

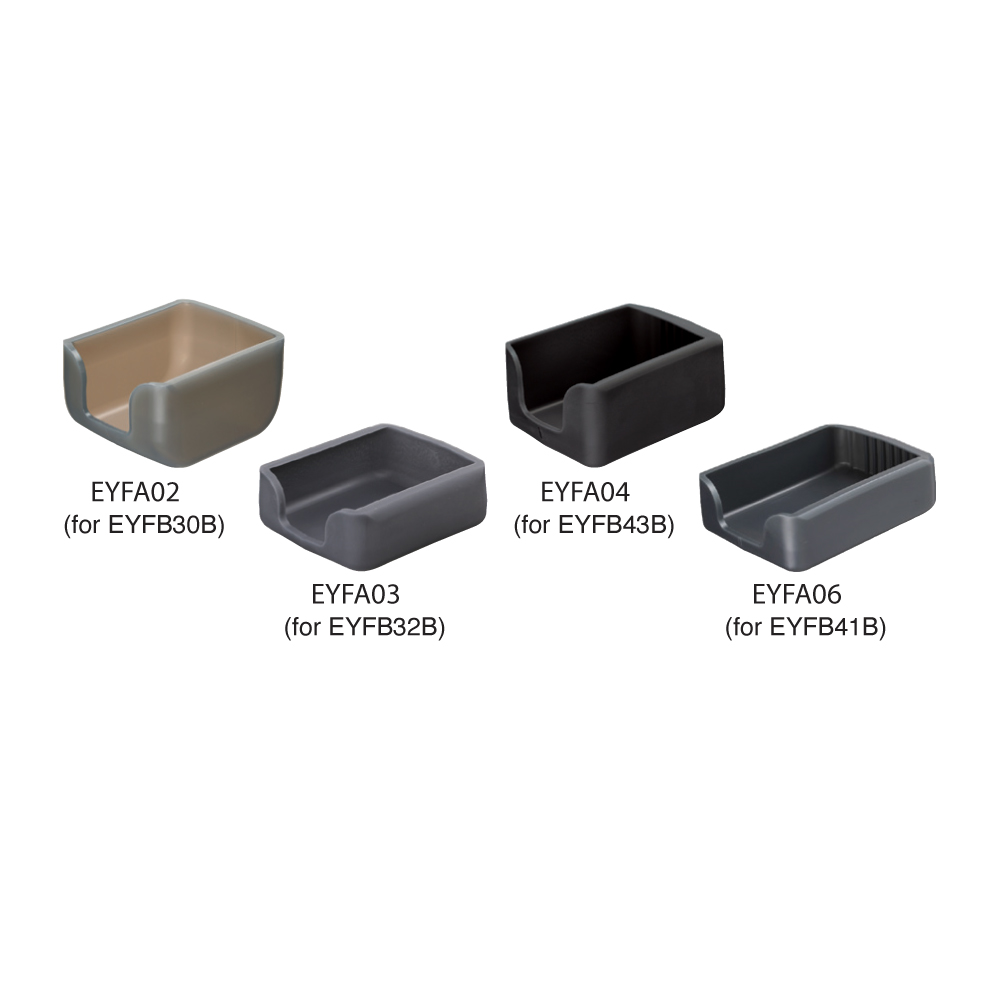

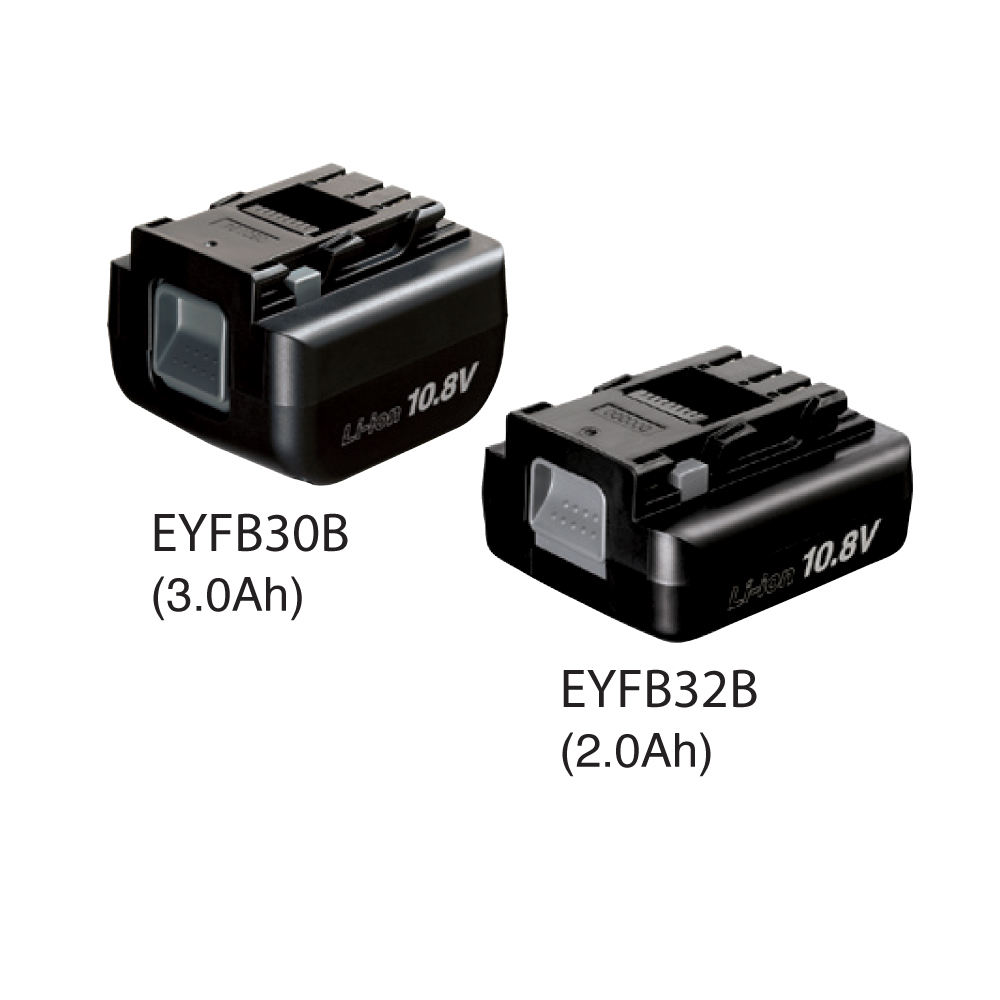

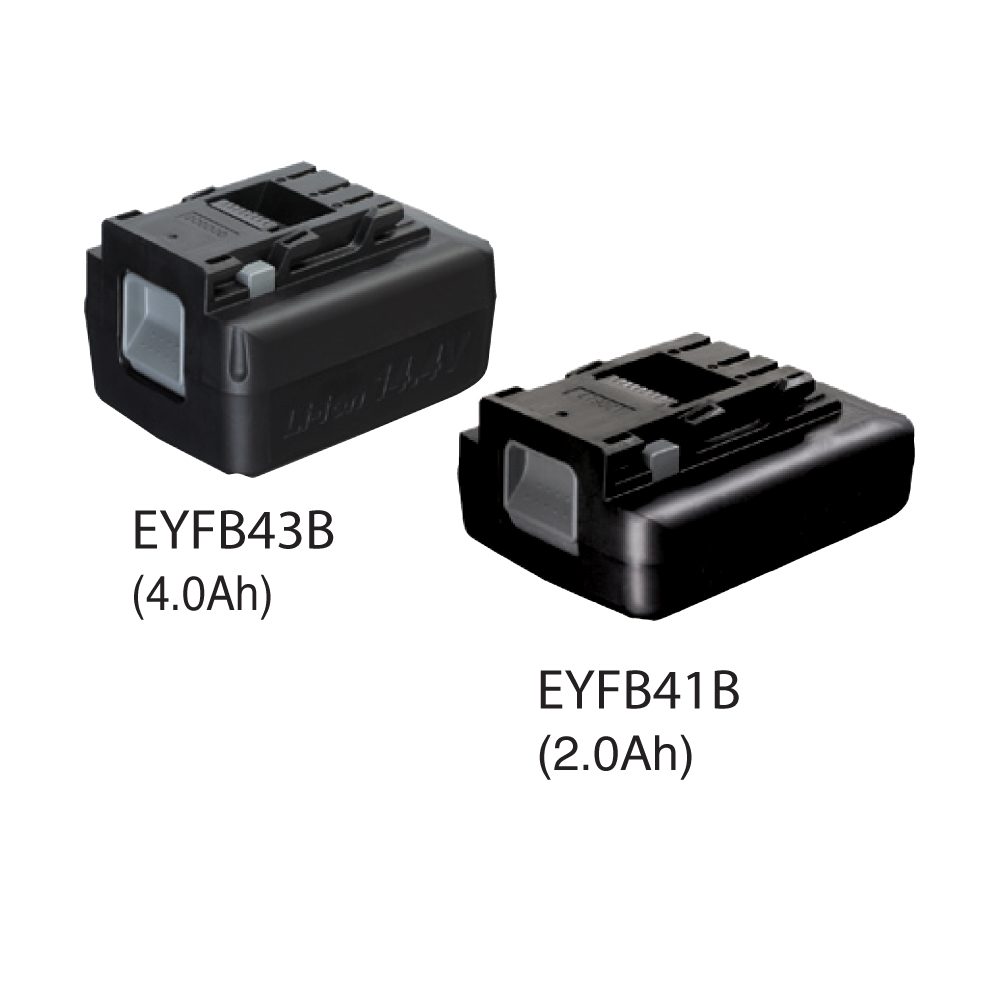

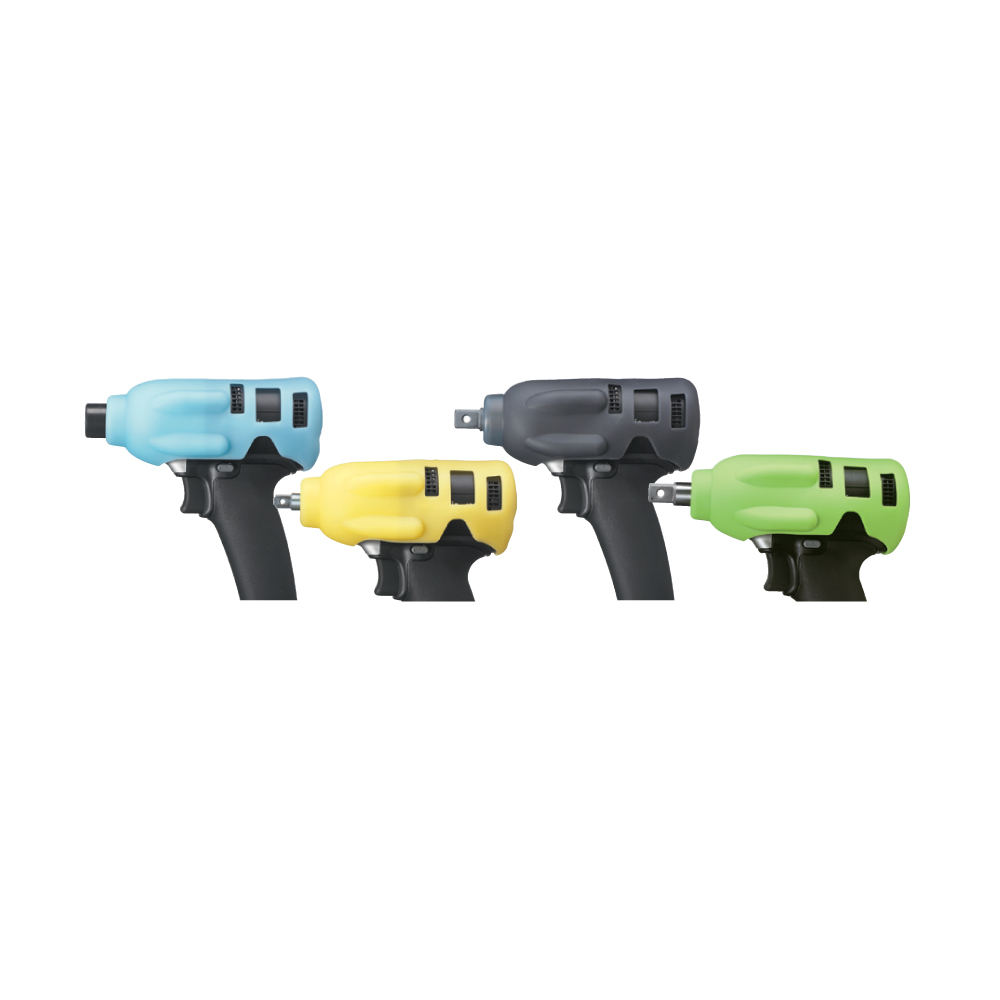

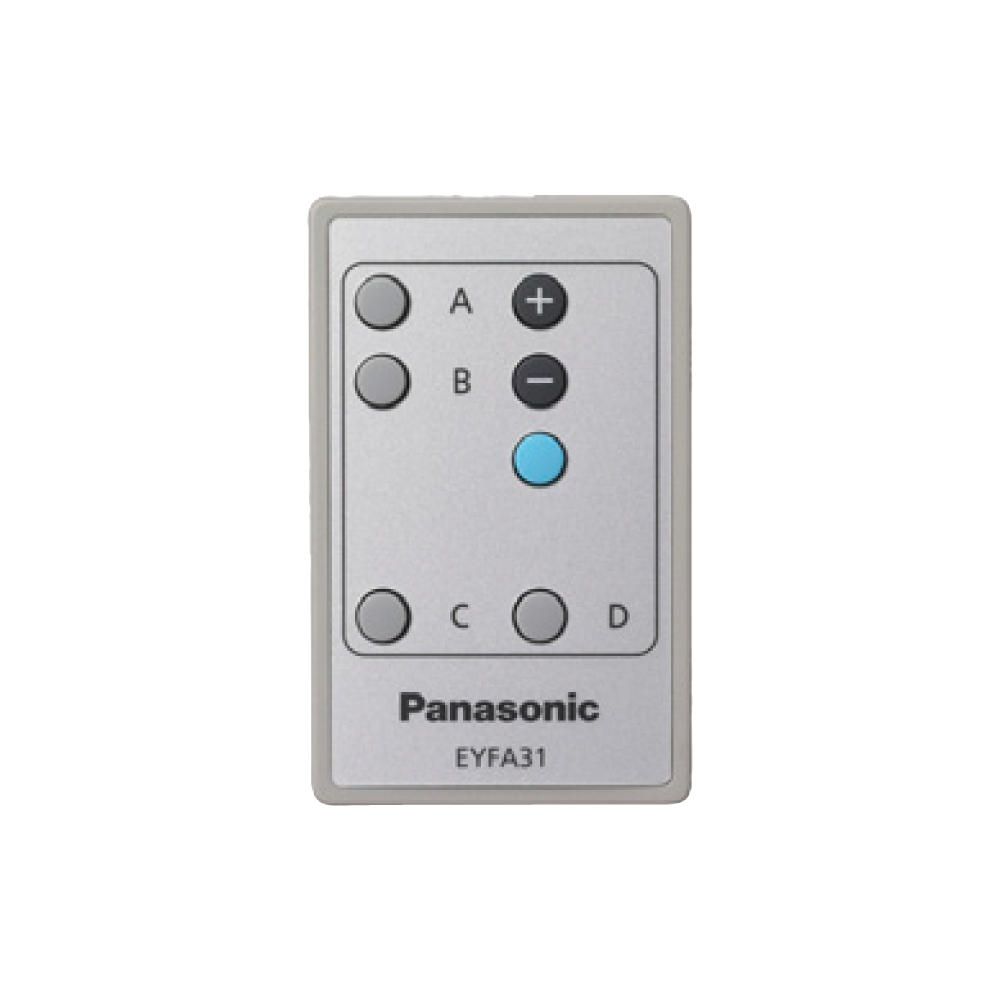

Optional Accessory
