Low Noise Impact Wrench
Low Noise Impact Wrench
Realize serial and continuous fastening with
reduced noise of metal hammer blows!

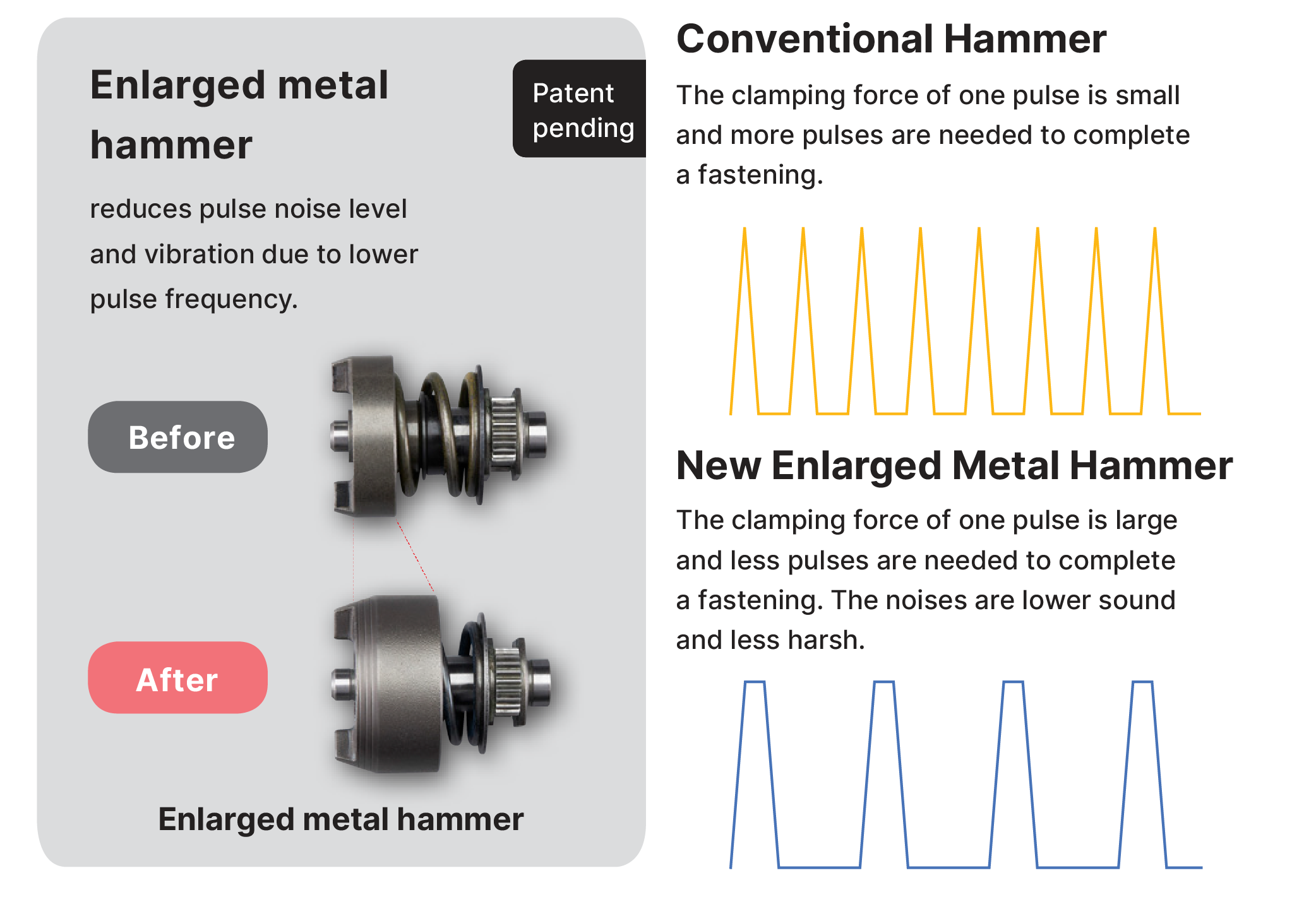

Panasonic New Mechanical Pulse Technology for Lower Noise
FEATURES
01

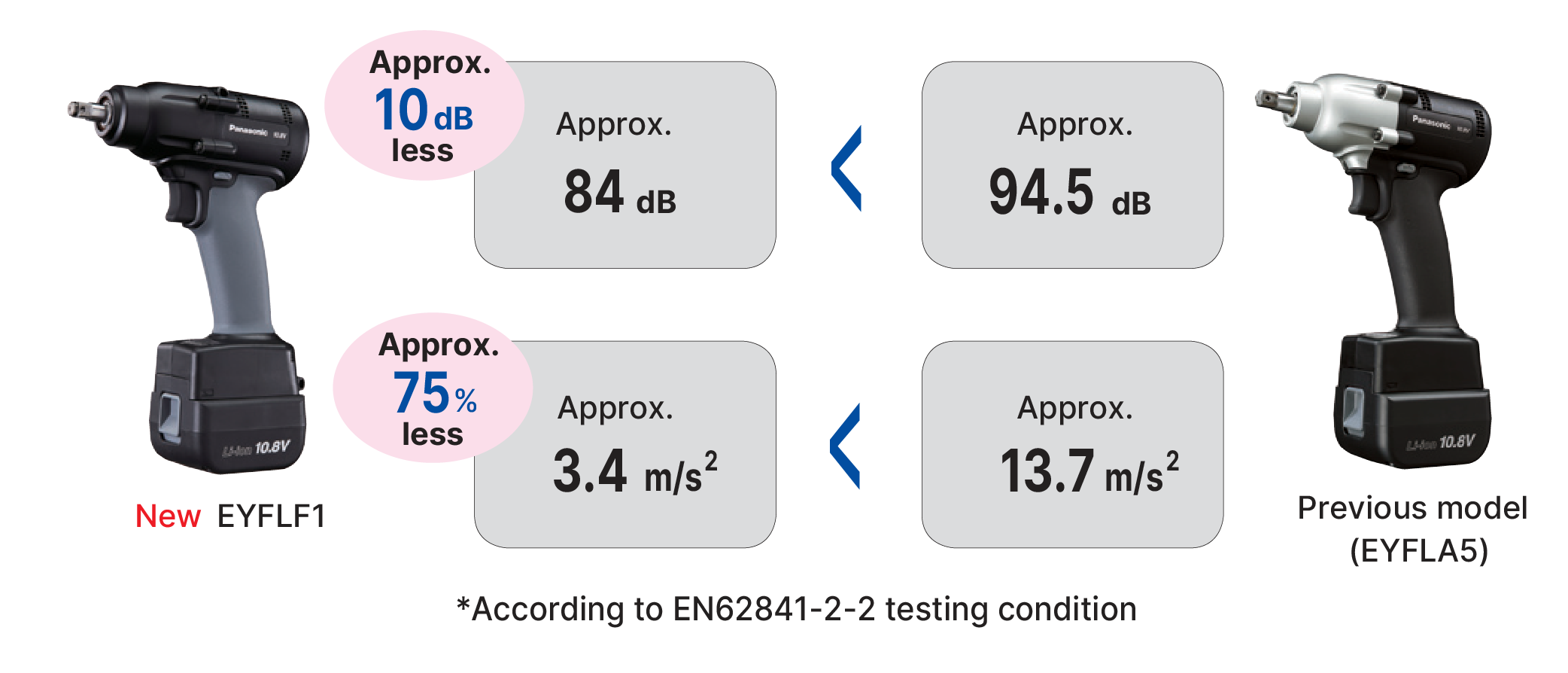

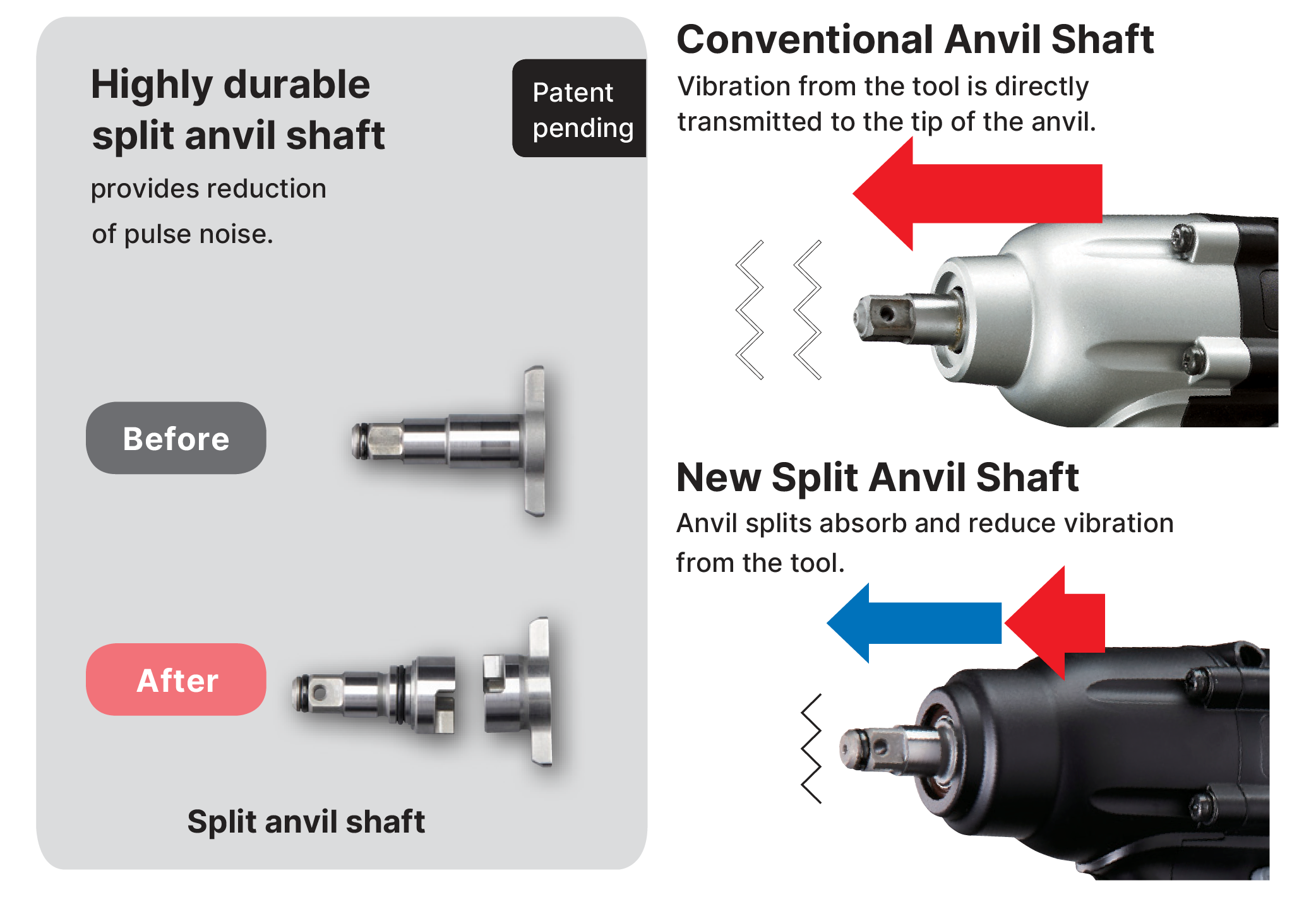

Less noise and vibration for improved working environment

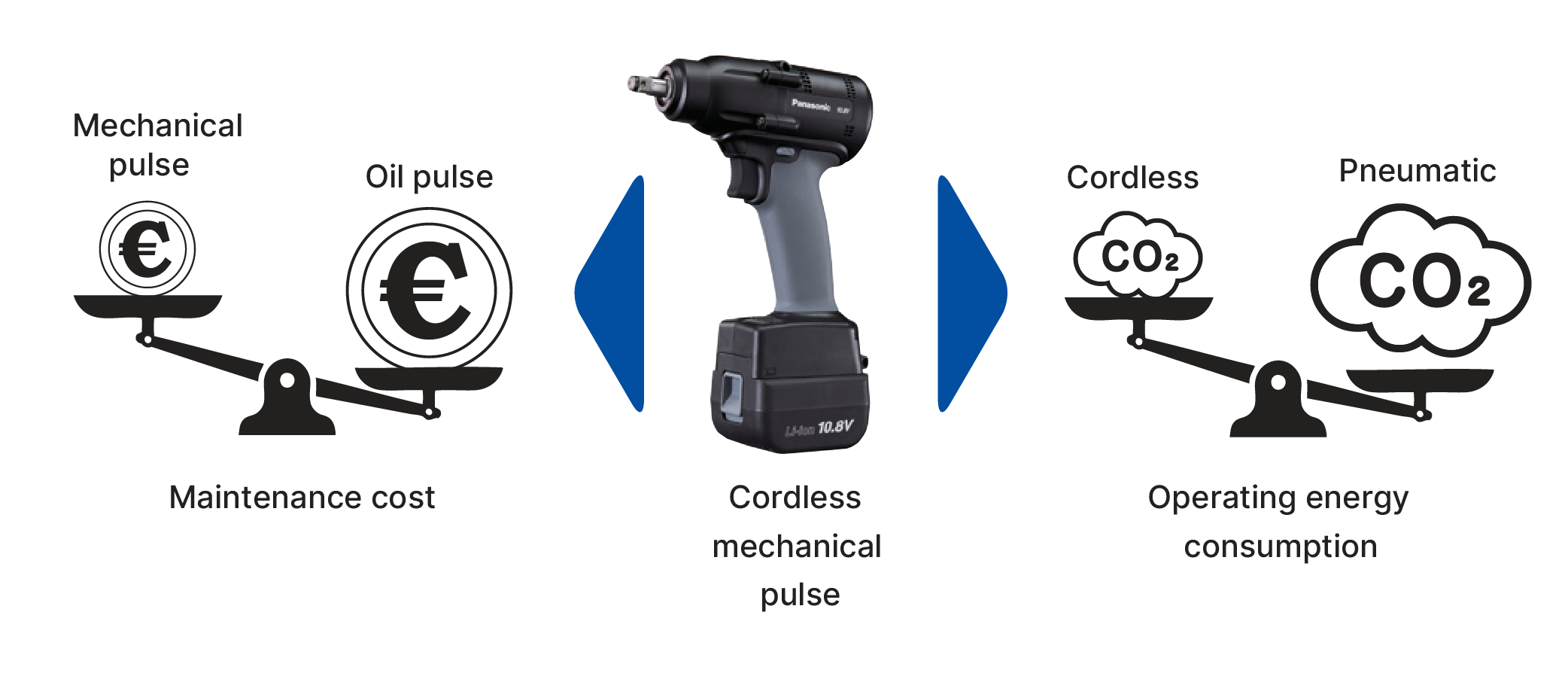

Less running cost, eco-friendly
Increased productivity with serial fastening capability

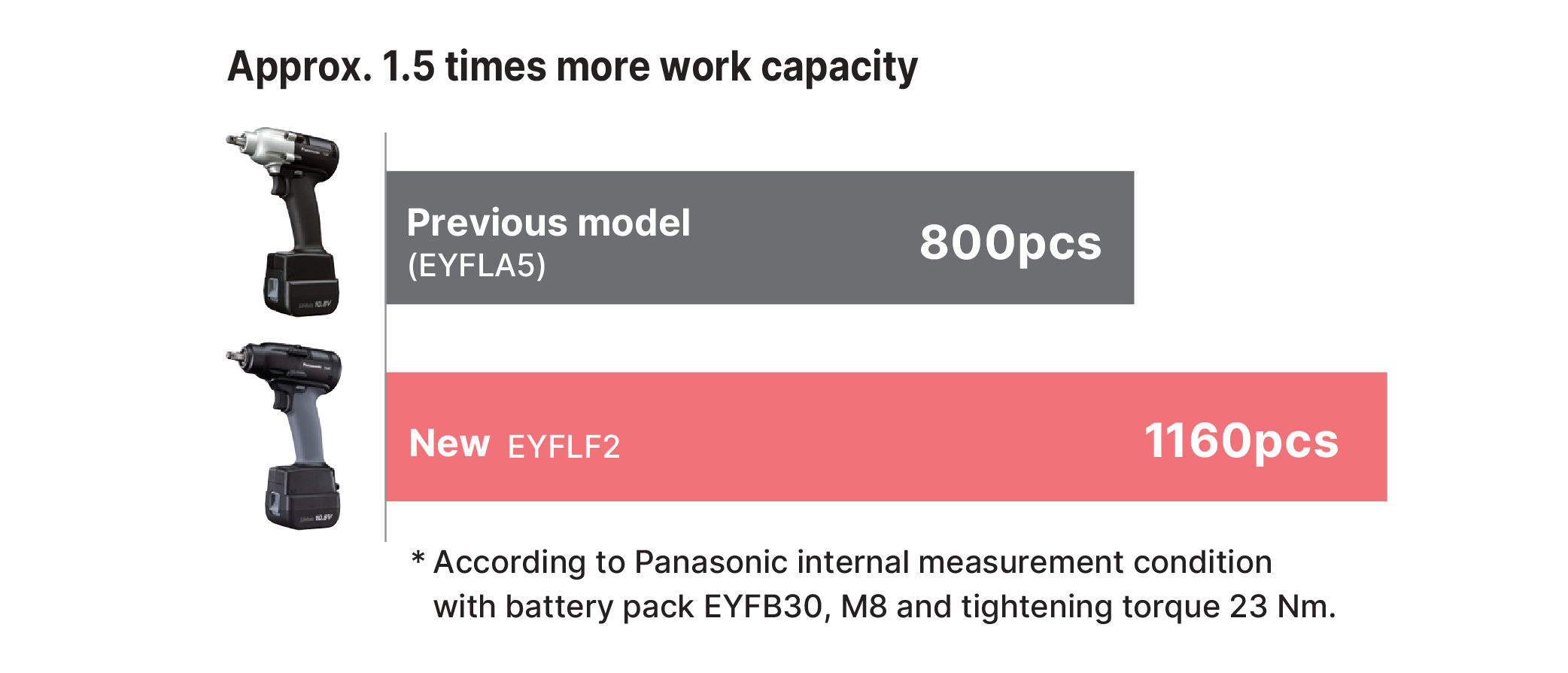

More work capacity per one charge by improved mechanical pulse efficiency
Optional settings for
preventing cross thread fastening
Advanced Fastening Features
PRODUCT SPECIFICATION
02

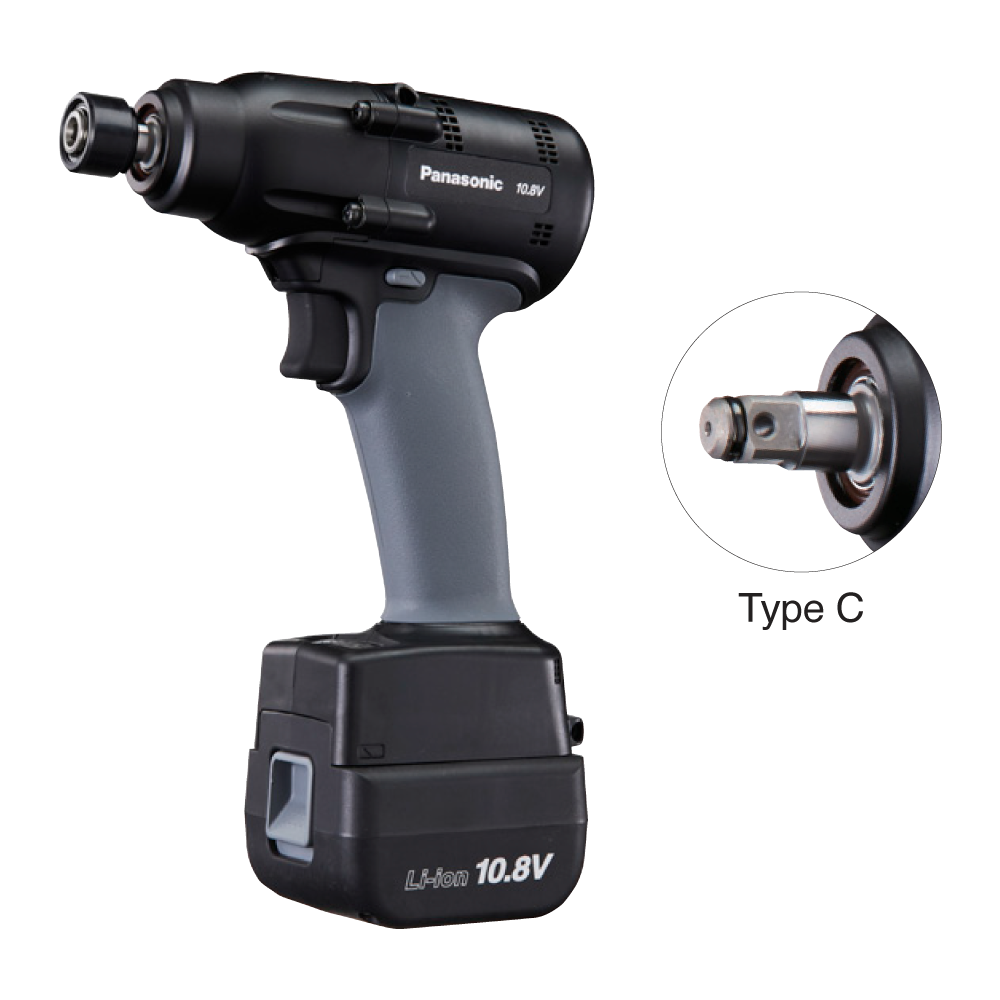

10.8V Low Noise Precision Shut-off Impact Driver & Wrench
|
Cordless Impact Driver & Wrench | ||||
| EYFLF1XA | EYFLF1XC | EYFLF2XA | EYFLF2XC | ||
10.8V
Low Noise Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Low Noise Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
||||
| Chuck / Anvil type |
A:1/4” Hex quick change, C:9.5mm Sq. drive Retainer ring and Pin-hole |
||||
|---|---|---|---|---|---|
| Application |
Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) |
|||
| Maximum torque (F mode, fastening 3 sec.) | approx. 30 N·m (M10 bolt) | approx. 40 N·m (M10 bolt) | approx. 70 N·m (UFT-M14 bolt) | approx. 100 N·m (M14 bolt) | |

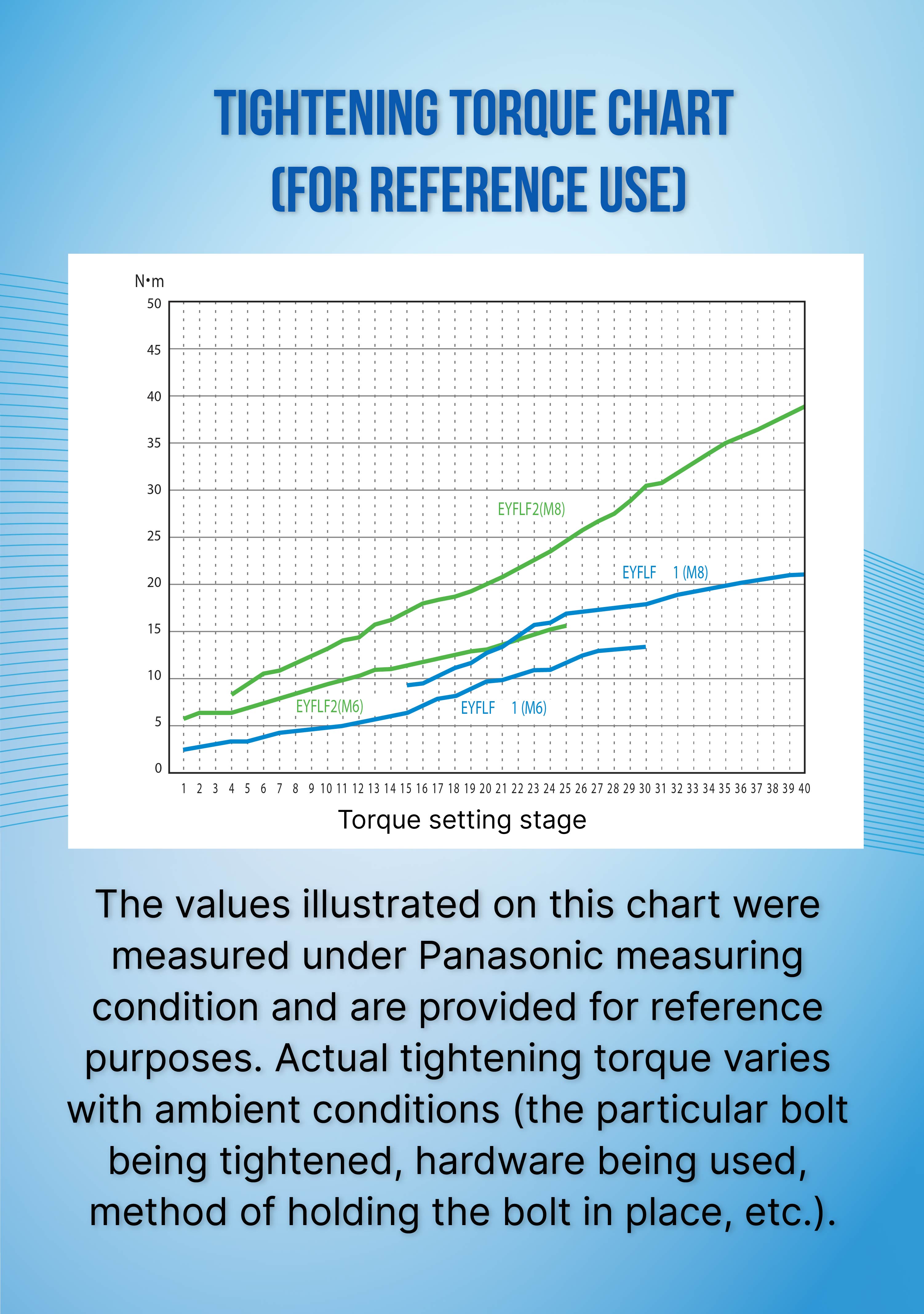

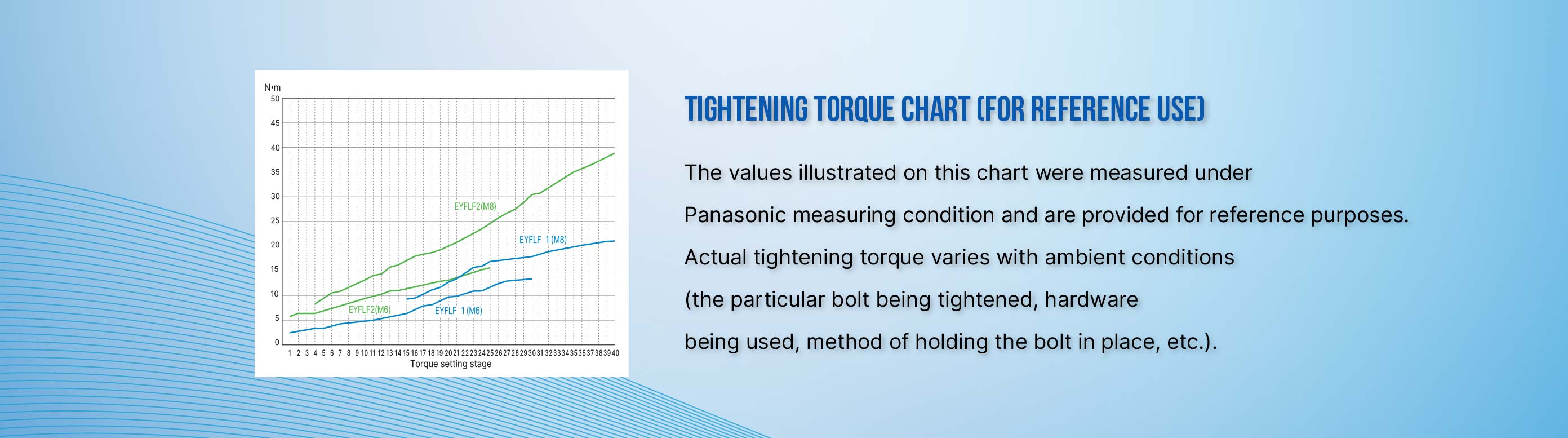

| Shut-off range | approx. 3 ~ 20 N·m | approx. 6 ~ 35 N·m | |||
| Torque setting | 40 stage + F (without torque setting mode) | ||||
| Snug torque detection mode setting | 7 stages (L1 ~ L7) | ||||
| No load speed (unit : rpm) |
stage1~4: 0~ 650 stage5~14: 0~950 stage15~19: 0~1200 stage20~40•F: 0~1800 |
stage1~3: 0~1450 stage4~40•F: 0~1800 |
|||
| Impact per minute |
stage1~19: 0～1300 stage20~40•F: 0～1800 |
0～2250 | |||
| Weight*1 (inc. battery) |

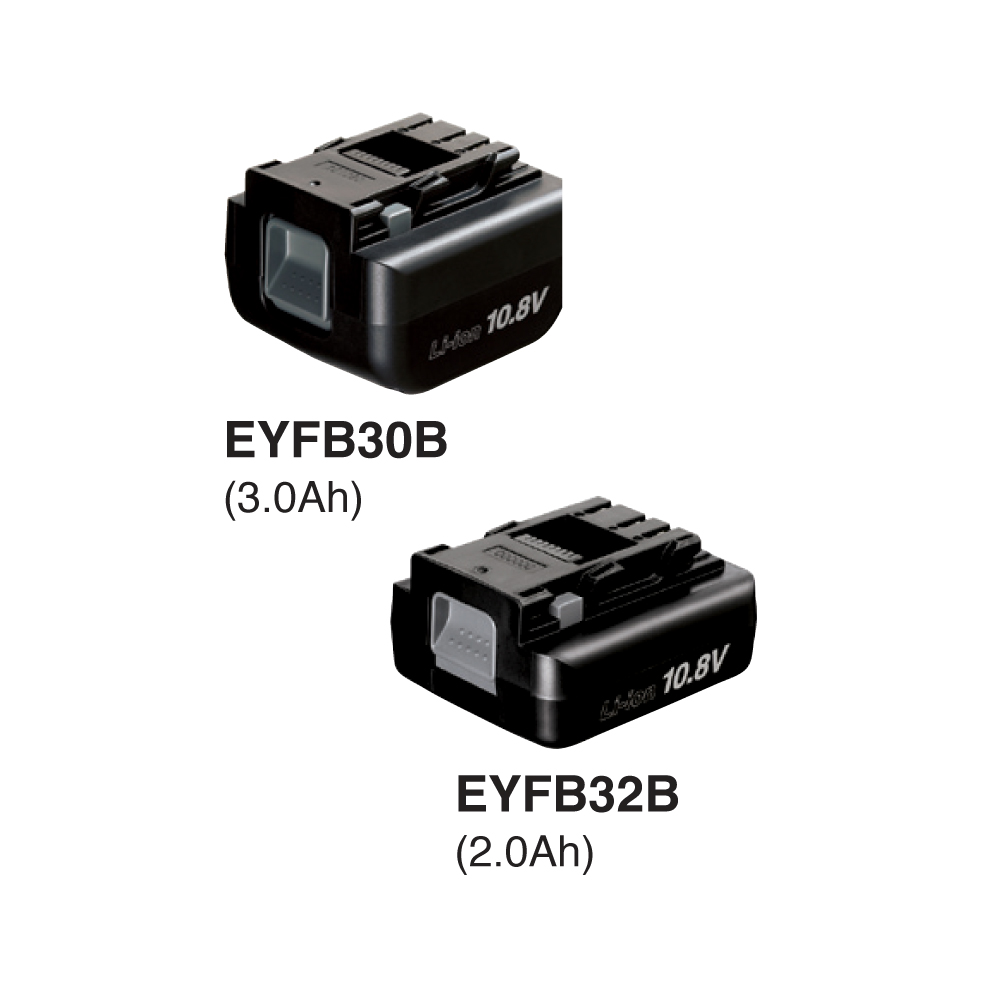

EYFB30B | approx. 1.45kg | |||
| EYFB32B | approx. 1.3kg | ||||
| Size | Length | 166mm | 167mm | 166mm | 167mm |
| Height | 249mm (EYFB30B), 231mm (EYFB32B) | ||||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | ||||
| Vibration | 2.6m/s2 | 3.4m/s2 | 4.2m/s2 | 3.4m/s2 | |
| Function | LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | |||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | ||||
| Battery indication lamp | ✓ (3 stages) | ||||
| Auto battery shutdown | ✓ | ||||
| Advanced fastening features | ✓ (For details of the feature, Please refer to page 7) | ||||

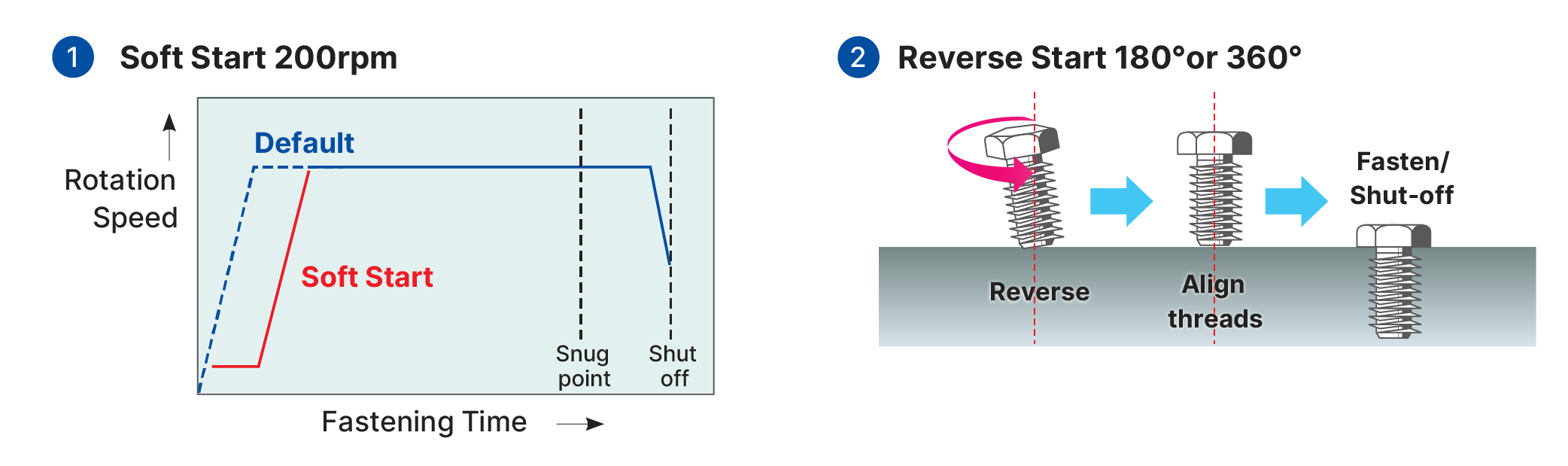

| Soft start | ✓ (200 rpm or less) | ||||
| Cross thread reduction | ✓ (180°or 360°reverse start) | ||||

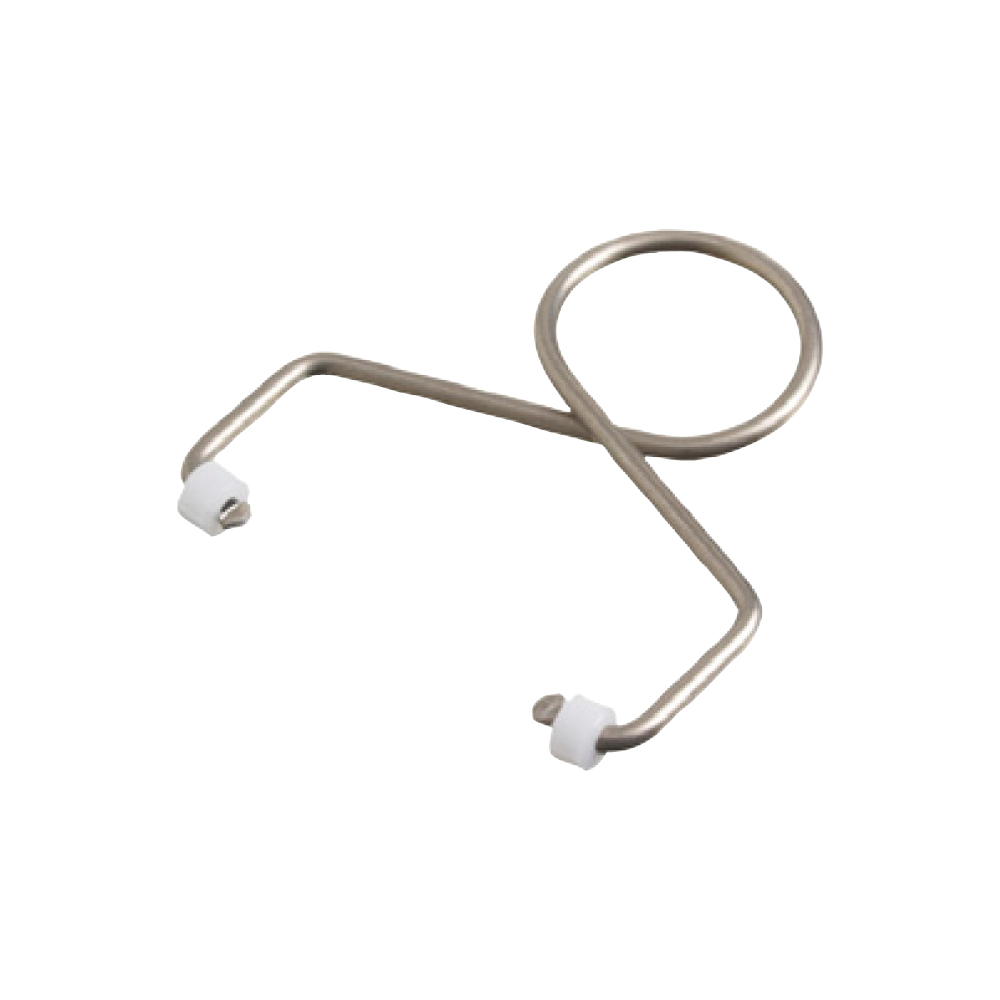

| Tool hanger | ✓ | ||||
| Work capacity / Fastening speed | <M6: 10 N·m, Stage: 21> (EYFB30B) approx. 1290 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 780 pcs/pack approx. 0.8 sec/1pcs |
<M6: 10 N·m, Stage: 20> (EYFB30B) approx. 1630 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 840 pcs/pack approx. 0.7 sec/1pcs |
<M8: 23 N·m, Stage: 25> (EYFB30B) approx. 800 pcs/pack approx. 1.2 sec/1pcs (EYFB32B) approx. 500 pcs/pack approx. 1.2 sec/1pcs |
<M8: 23 N·m, Stage: 20> (EYFB30B) approx. 1160 pcs/pack approx. 0.9 sec/1pcs (EYFB32B) approx. 590 pcs/pack approx. 0.9 sec/1pcs |
|
| Charging time |

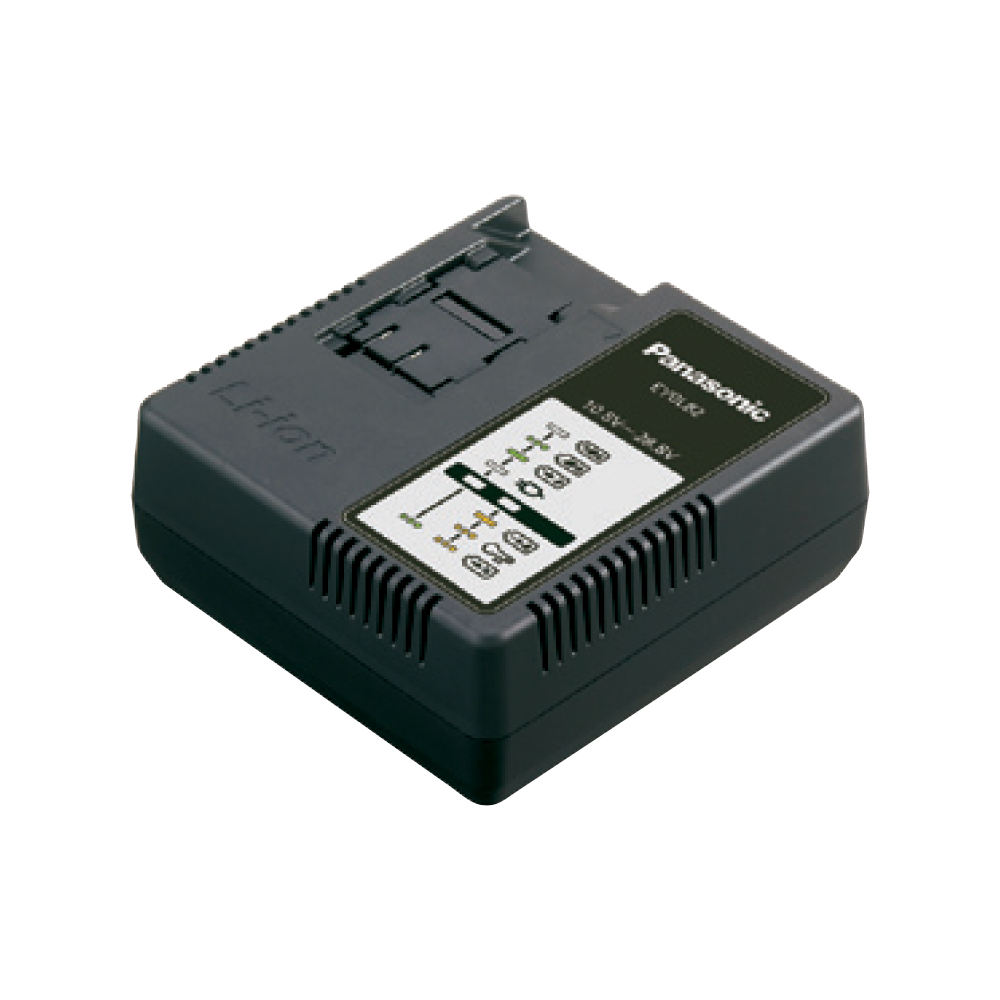

(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
||||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.
|
|
Cordless Impact Driver & Wrench | ||||
| EYFLG1XA | EYFLG1XC | EYFLG2XA | EYFLG2XC | ||
10.8V
Low Noise Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Low Noise Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
||||
| Chuck / Anvil type |
A:1/4” Hex quick change, C:9.5mm Sq. drive Retainer ring and Pin-hole |
||||
|---|---|---|---|---|---|
| Application |
Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal-Tensile bolt) |
|||
| Maximum torque (F mode, fastening 3 sec.) | approx. 30 N·m (M10 bolt) | approx. 40 N·m (M10 bolt) | approx. 70 N·m (M14 bolt) | approx. 100 N·m (M14 bolt) | |
| Shut-off range | — | — | |||
| Torque setting | — | ||||
| Snug torque detection mode setting | — | ||||
| No load speed (unit : rpm) |
0~1800 | ||||
| Impact per minute | 0~1800 | 0～2250 | |||
| Weight*1 (inc. battery) |
EYFB30B | approx. 1.45kg | |||
| EYFB32B | approx. 1.25kg | ||||
| Size | Length | 166mm | 167mm | 166mm | 167mm |
| Height | 249mm (EYFB30B), 231mm (EYFB32B) | ||||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | ||||
| Vibration | 2.6m/s2 | 3.4m/s2 | 4.2m/s2 | 3.4m/s2 | |
| Function | LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | |||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | ||||
| Battery indication lamp | ✓ (3 stages) | ||||
| Auto battery shutdown | ✓ | ||||
| Advanced fastening features | ✓ (For details of the feature, Please refer to page 7) | ||||
| Soft start | ✓ (200 rpm or less) | ||||
| Cross thread reduction | ✓ (180°or 360°reverse start) | ||||
| Tool hanger | ✓ | ||||
| Work capacity / Fastening speed |
<M6: 10 N·m (EYFB30B) approx. 1290 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 780 pcs/pack approx. 0.8 sec/1pcs |
<M6: 10 N·m (EYFB30B) approx. 1630 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 840 pcs/pack approx. 0.7 sec/1pcs |
<M8: 23 N·m (EYFB30B) approx. 800 pcs/pack approx. 1.2 sec/1pcs (EYFB32B) approx. 500 pcs/pack approx. 1.2 sec/1pcs |
<M8: 23 N·m (EYFB30B) approx. 1160 pcs/pack approx. 0.9 sec/1pcs (EYFB32B) approx. 590 pcs/pack approx. 0.9 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
||||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

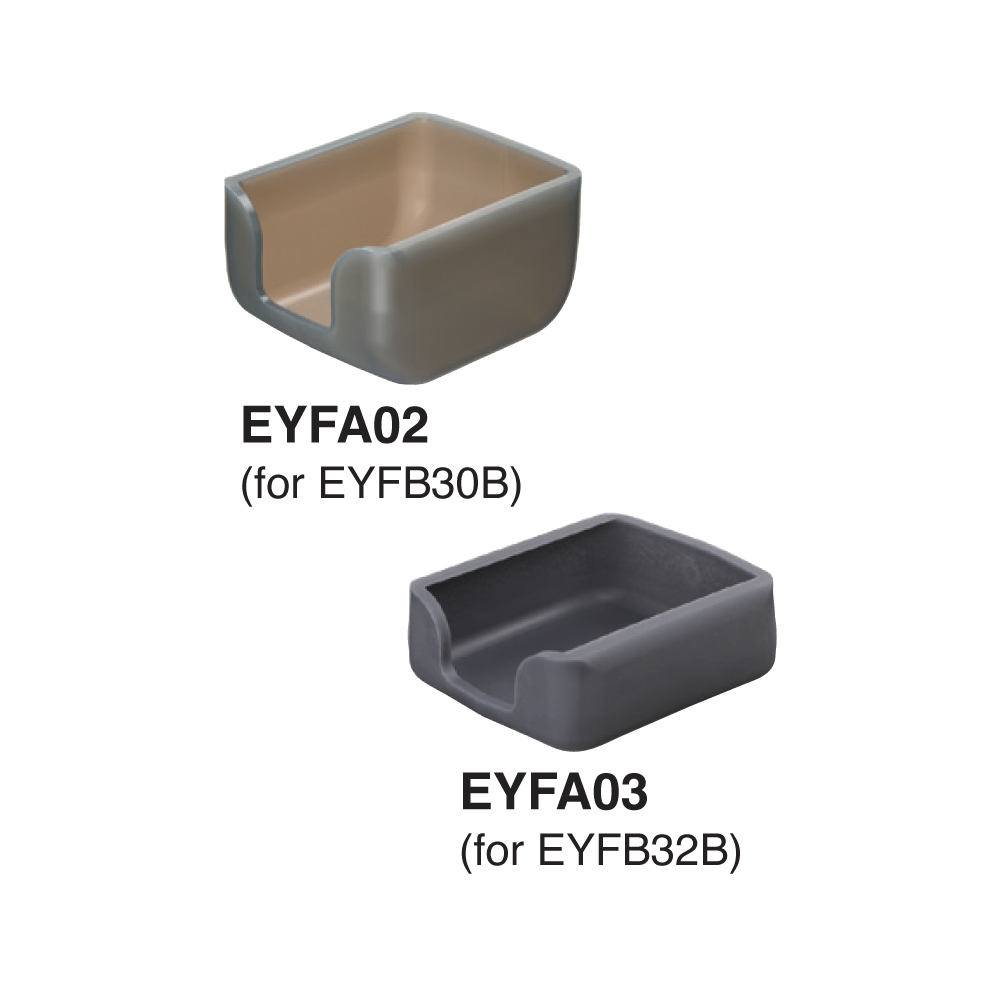

Optional Accessory
