Precision Shut-Off Impact Wrench
Precision Shut-Off Impact Wrench
Precision fastening quality utilizing Encoder Sensor and newly developed 7 stages Snug Torque Detection Mode
CONCEPT
01
FEATURES
Cutting-Edge Technology for Superior Fastening Performance
02
Advanced Impact Torque Control with 3 new technologies
01

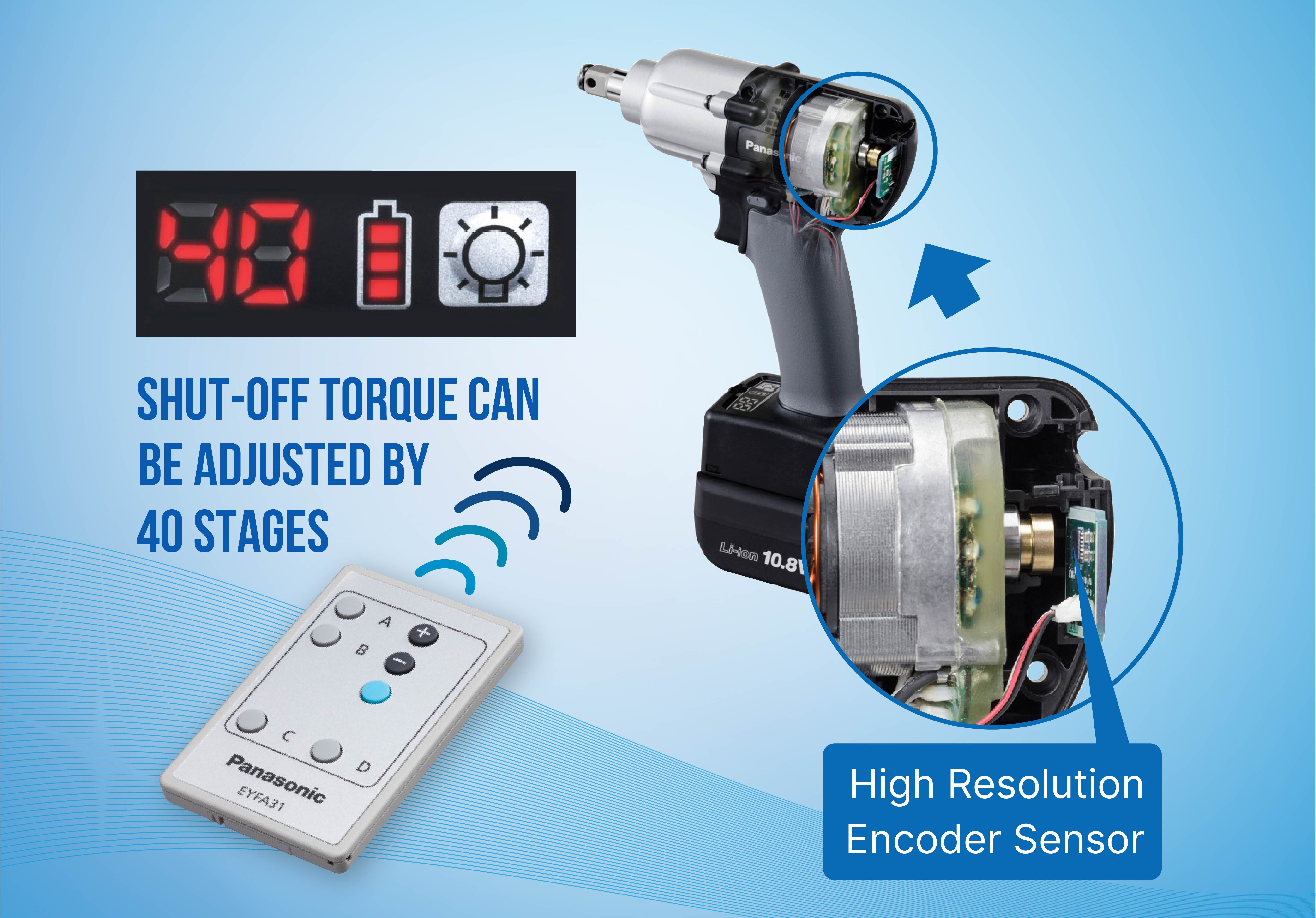

High Resolution Encoder Sensor
Encoder sensor monitors motor’s rotation angle precisely and simulates snug torque accurately.
02

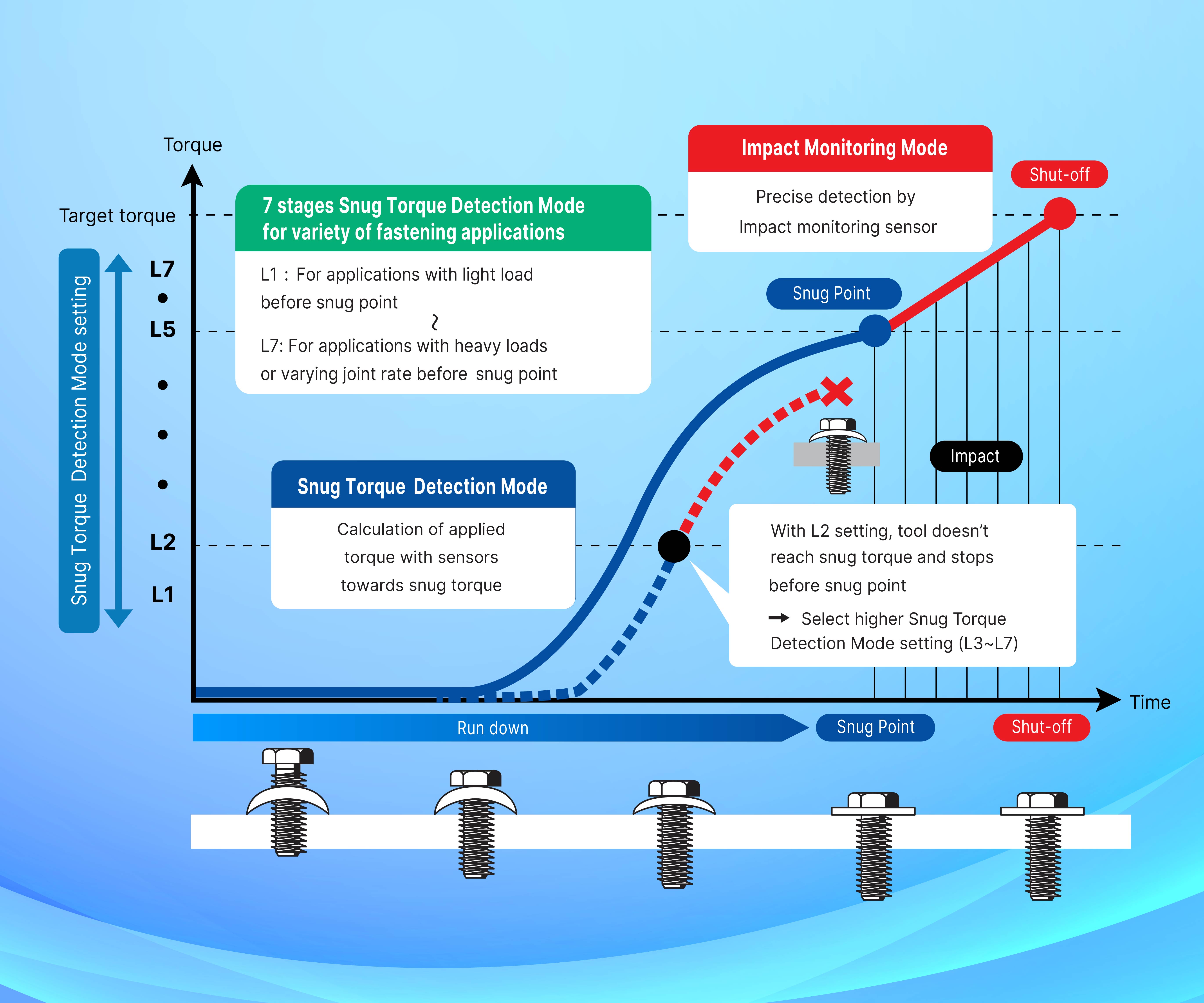

7 stages Snug Torque Detection Mode
Precise Snug Torque Detection Mode enables accurate fastening on variety of joints with large snug torque.
03

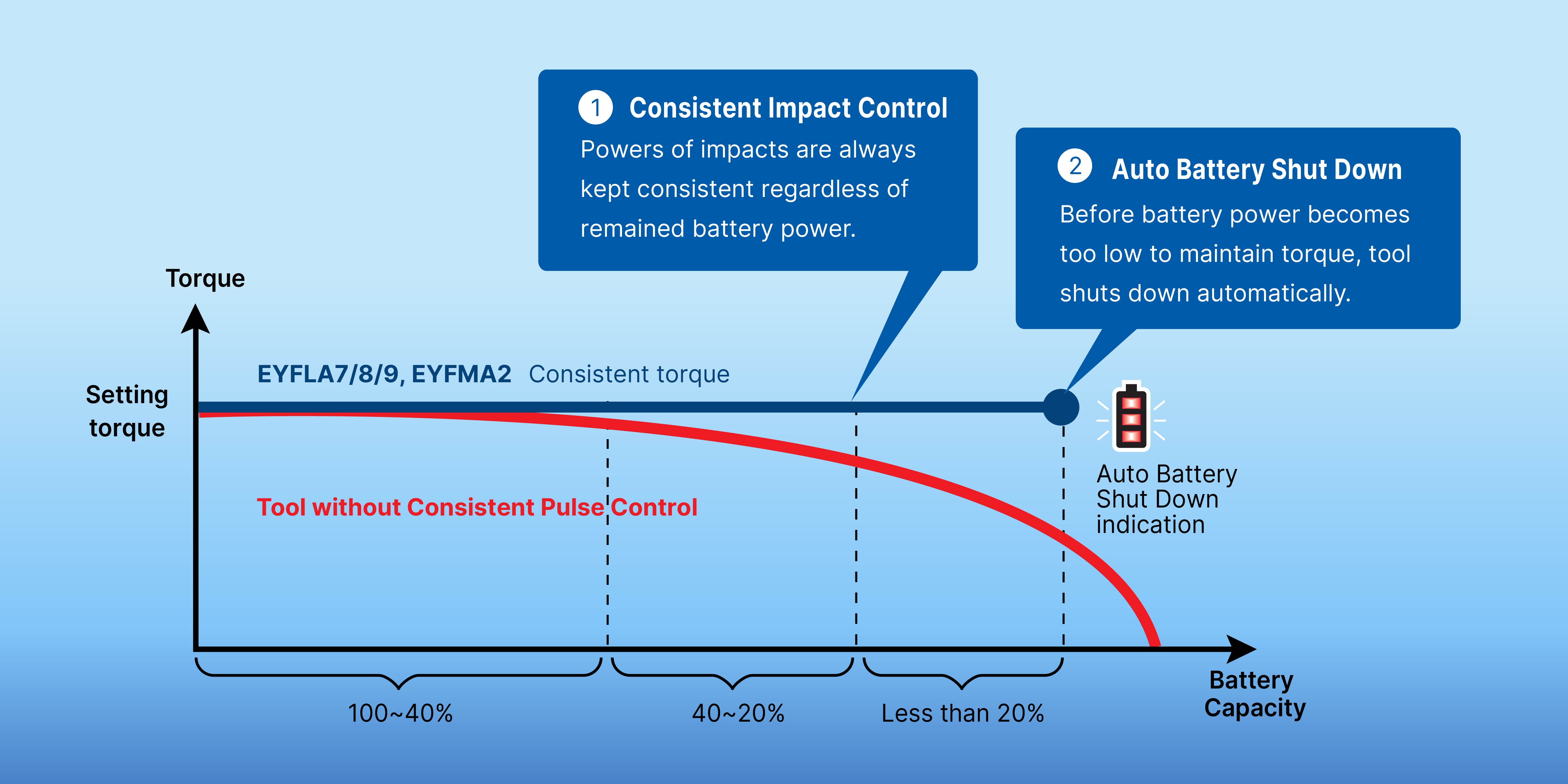

Consistent Impact Control
Powers of impacts are always kept consistent regardless of remained battery capacity.
High Efficiency Double Hammer Block
(EYFLA9, EYFMA2 only)
Reduce Vibration, Increase Comfort

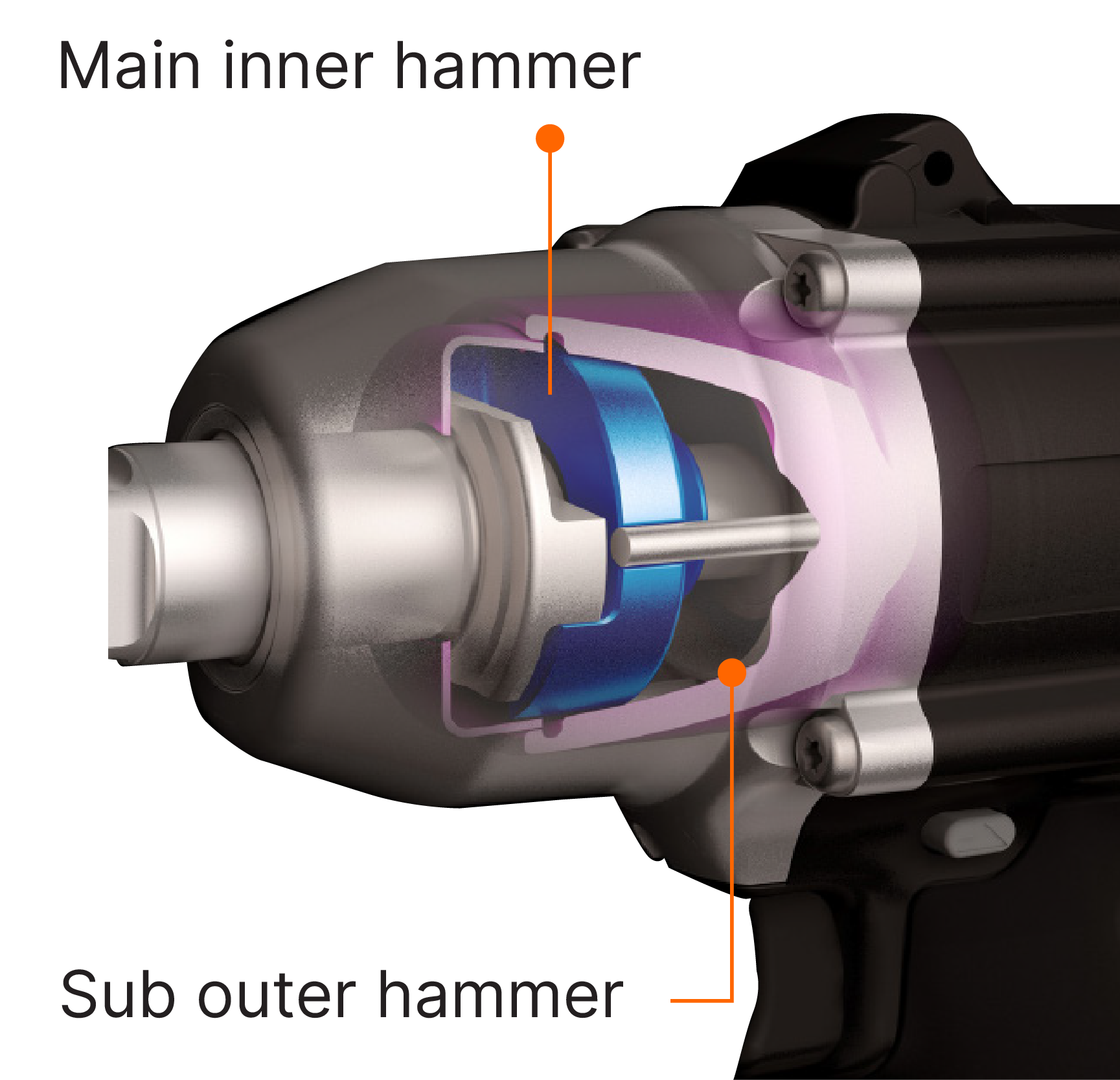

Newly developed Double Hammer lock reduces tool’s vibration, and thus operator’s fatigue and reflection noise from work material.

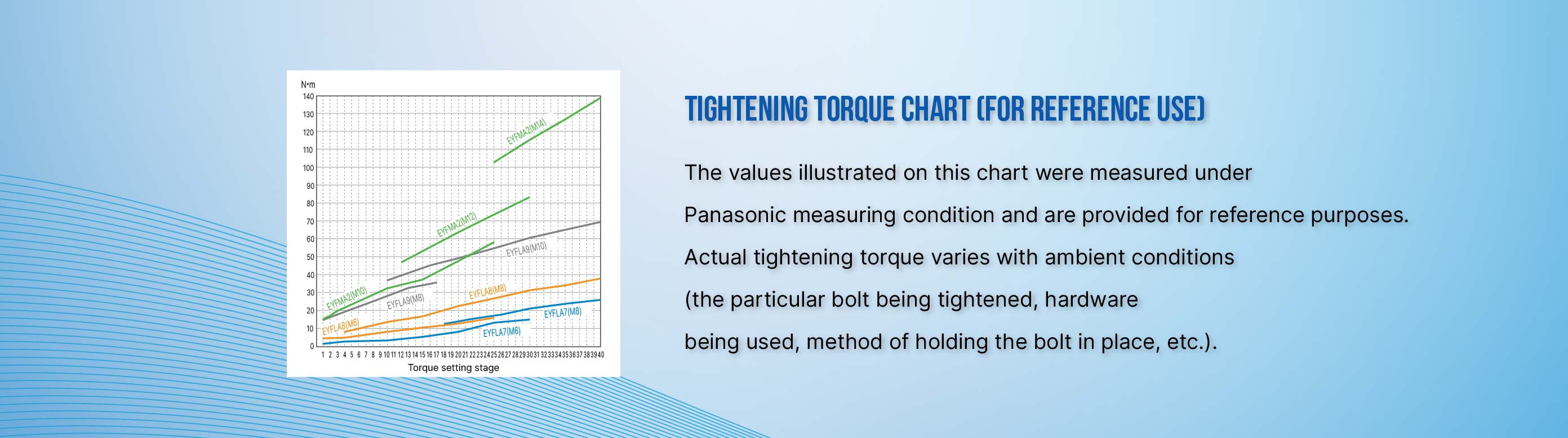

Calibration Data
(only for reference purpose) Model number: EYFMA2C
| Bolt Size | Torque setting |
1 | 2 | 3 | 4 | 5 | 26 | 27 | 28 | 29 | 30 | Average | Accuracy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M10 | 1 | 14.2 | 16.1 | 14.8 | 14.7 | 15 | ~ | 15.3 | 15.1 | 15.1 | 15.1 | 15.3 | 15.1 | 9.7% |
| 10 | 31.1 | 31.8 | 31.0 | 31.7 | 31.8 | 32.0 | 31.7 | 30.7 | 32.2 | 30.6 | 31.5 | 5.4% | ||
| M12 | 15 | 15 | 55 | 55 | 55 | 55 | 56 | 55 | 55 | 55 | 55 | 55 | 1.7% | |
| 25 | 80 | 81 | 82 | 81 | 82 | 83 | 82 | 83 | 82 | 81 | 82 | 3.5% | ||
| M14 | 30 | 117 | 118 | 113 | 117 | 118 | 118 | 119 | 117 | 118 | 116 | 117 | 4.3% | |
| 40 | 131 | 132 | 134 | 134 | 136 | 134 | 134 | 134 | 133 | 137 | 134 | 3.9% |
*The values in this chart were measured under Panasonic measuring condition and are provided only for reference purpose. Actual tightening torque may vary with ambient conditions.
Safety for consistent torque
Maintaining Torque Integrity with Battery Monitoring

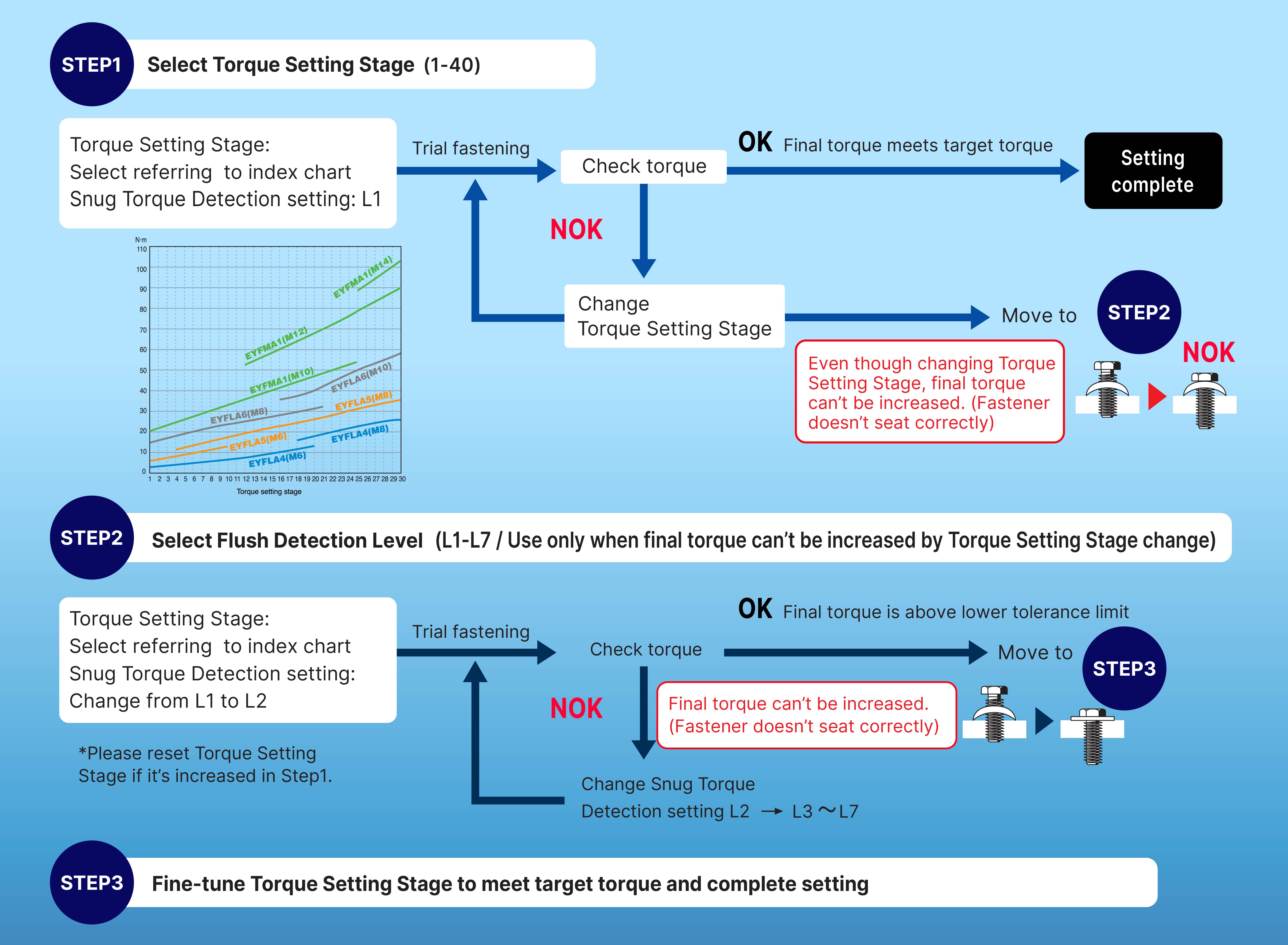

How to set
More Features
Tightening Confirmation Lamp

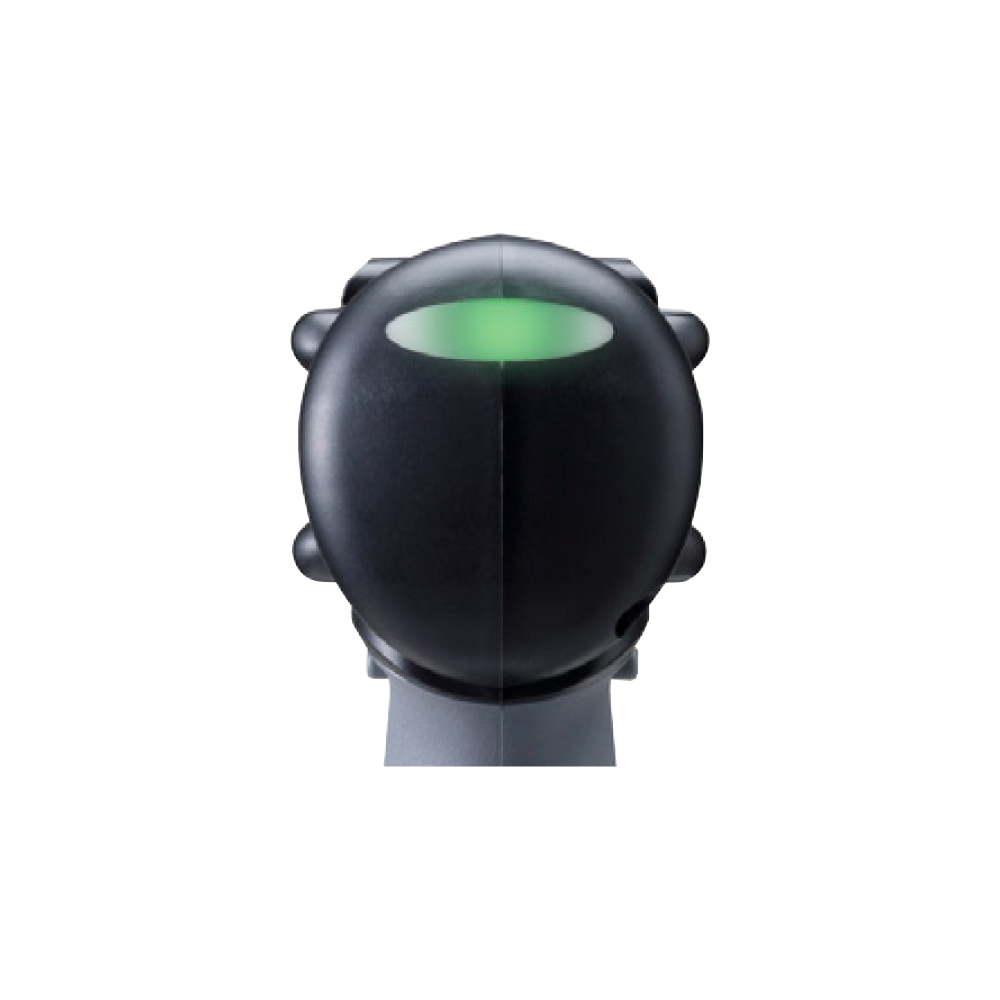

Green light indicates tightening is Completed.
Needle Bearings

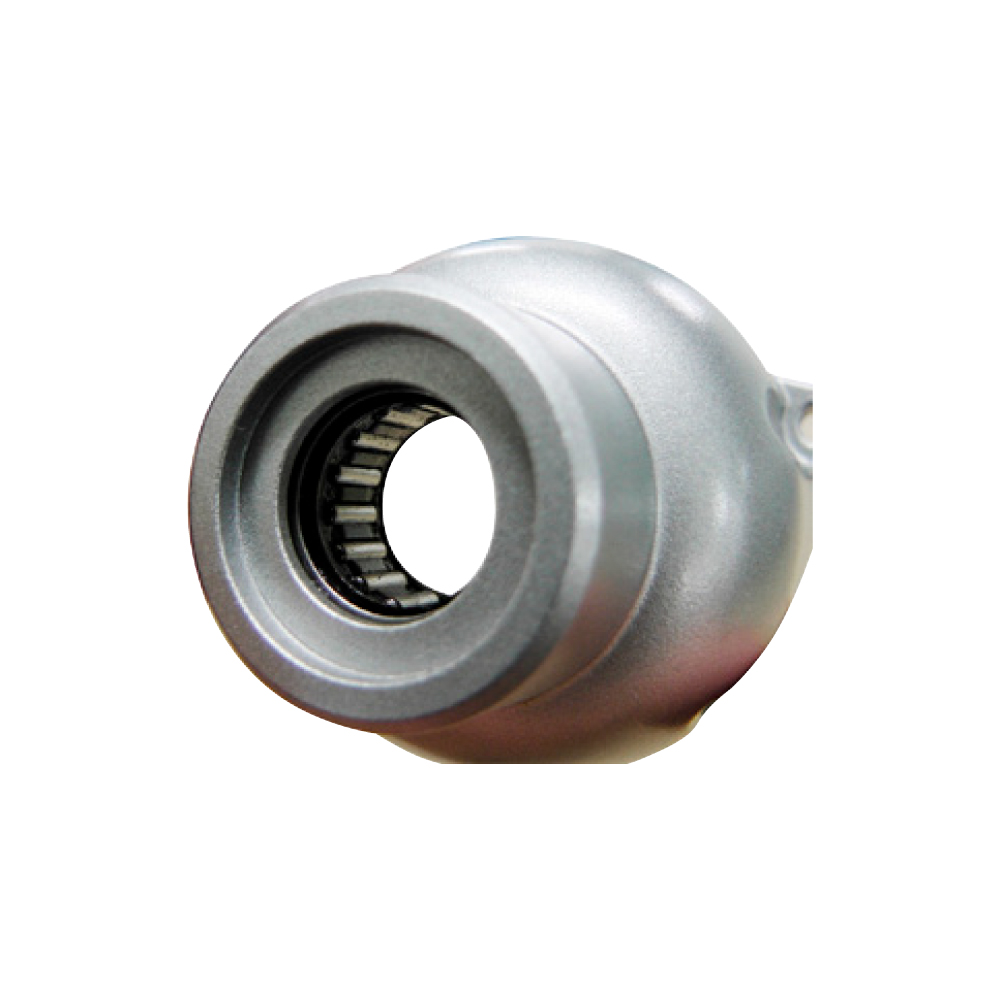

Needle Bearings on the output shaft reduce the vibration and realize longer life.

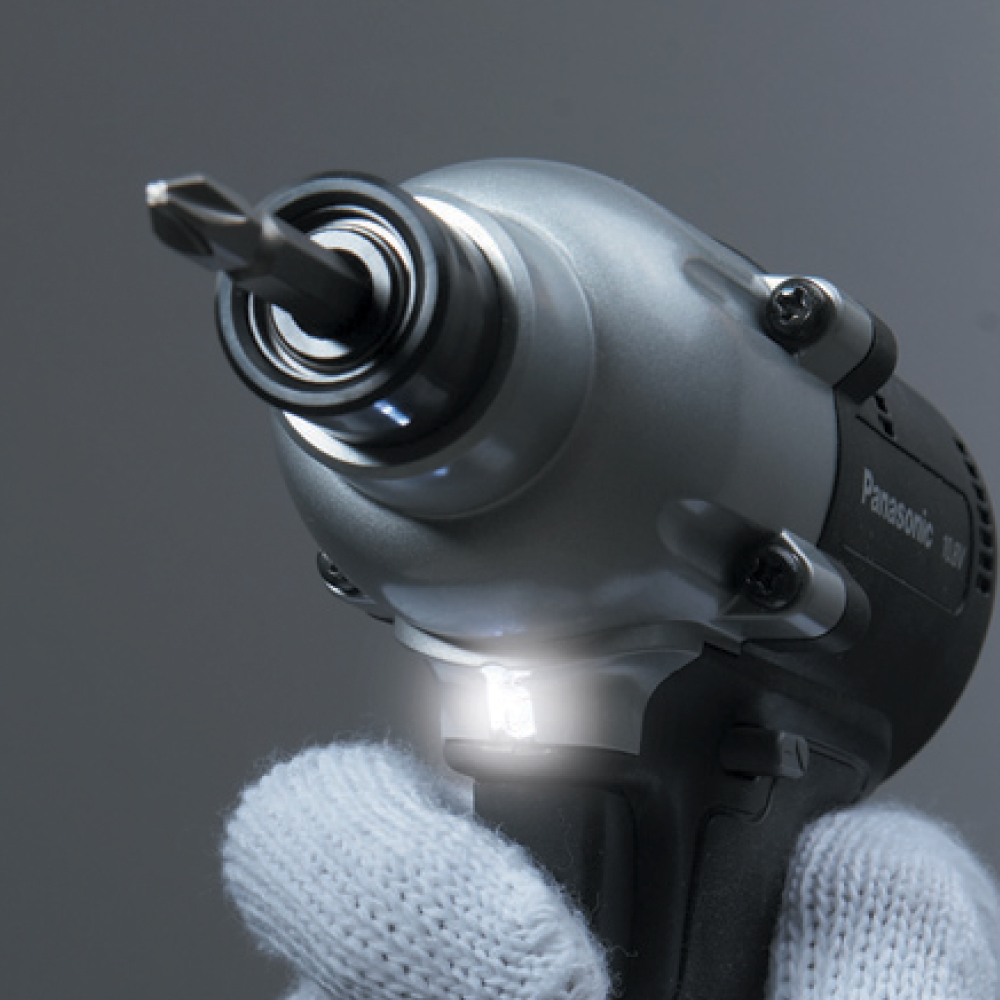

LED Light
For operations in dimly lit place.

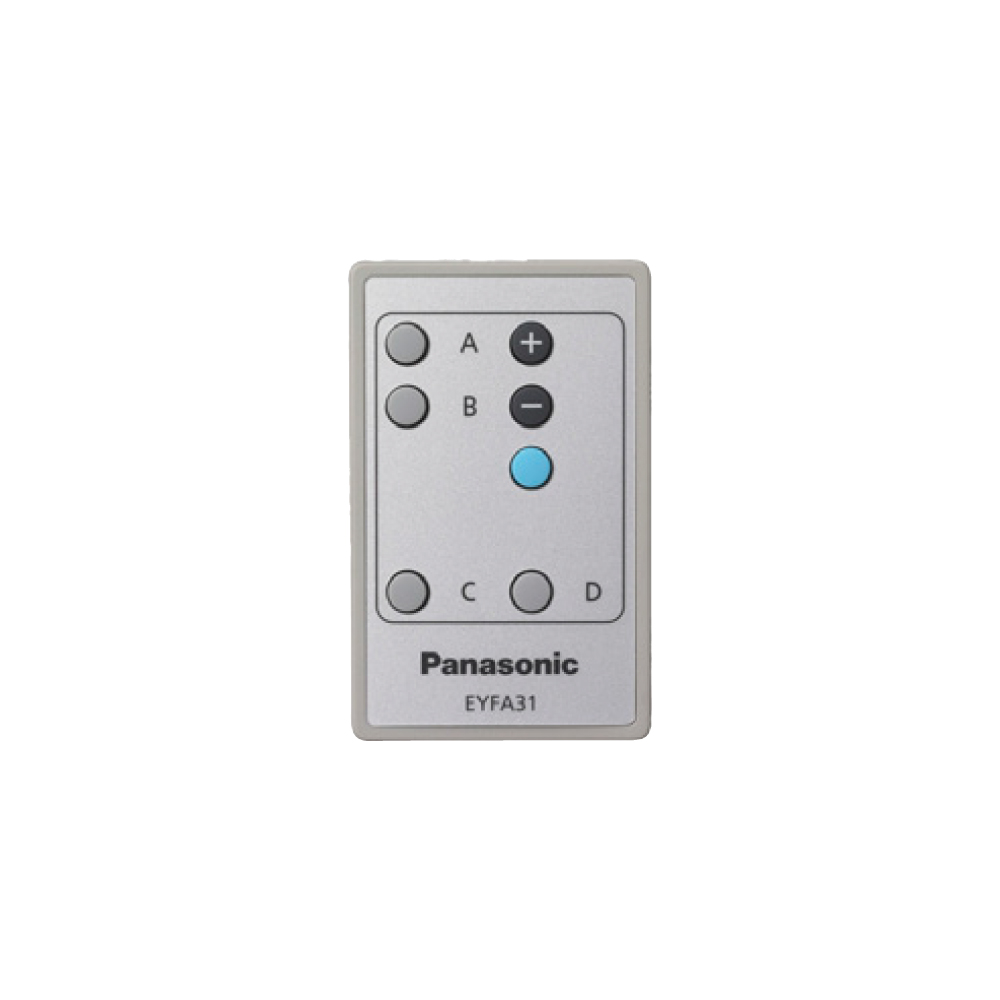

Remote Control

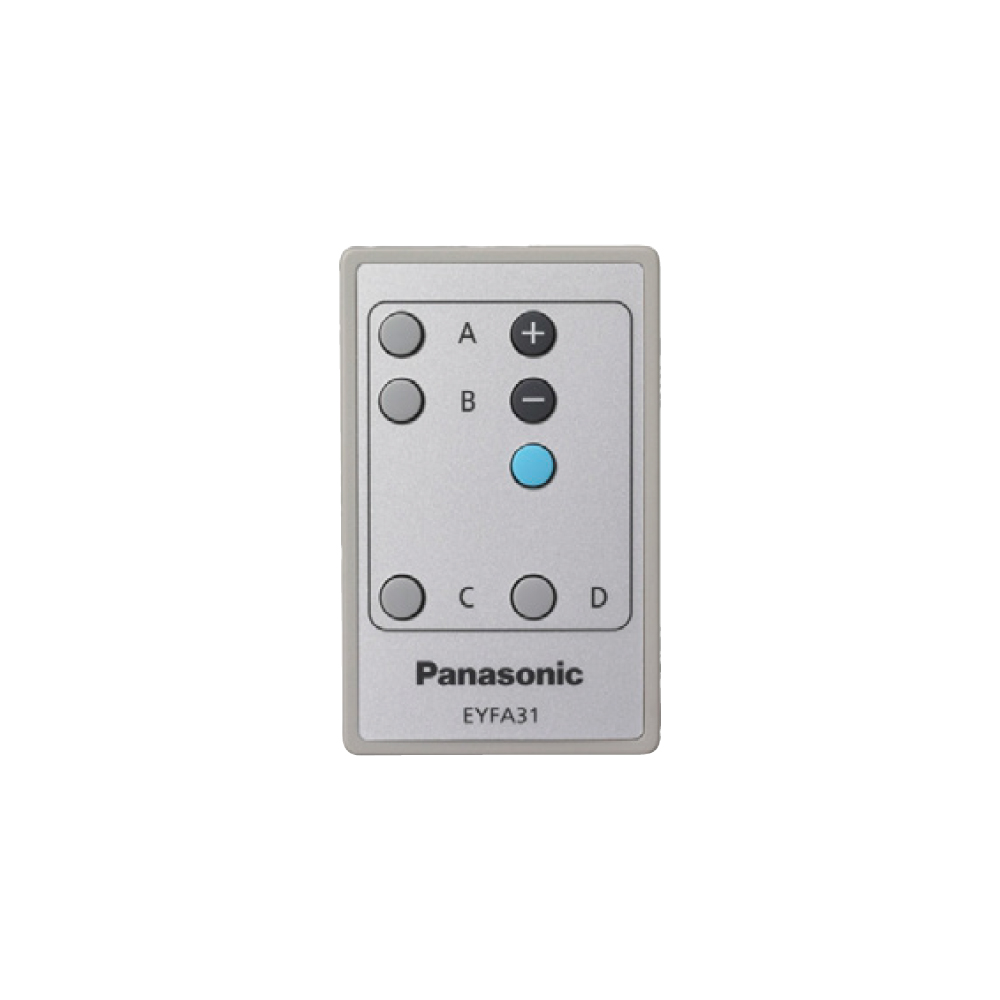

Tool setting can be set only by remote control.

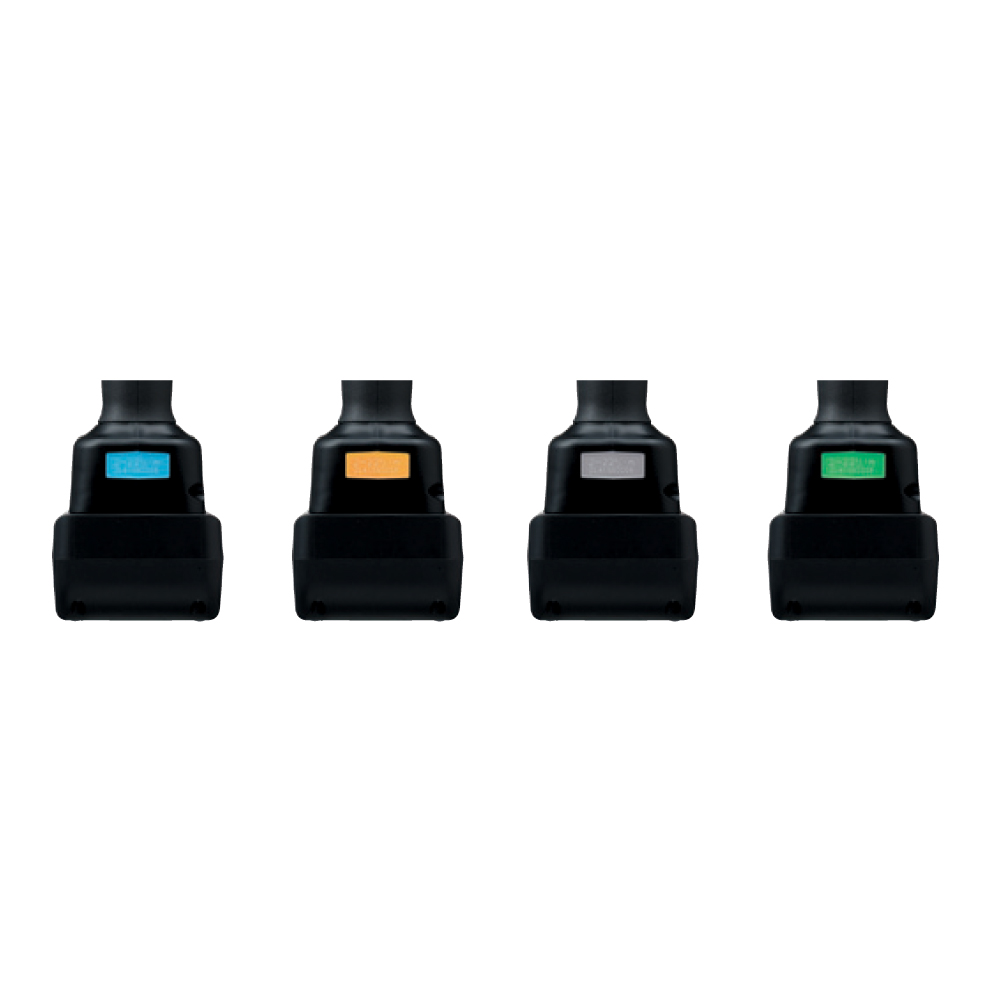

Color Plate for Differentiation
Each tool model is color coded for easy indentification.
PRODUCT SPECIFICATION
03

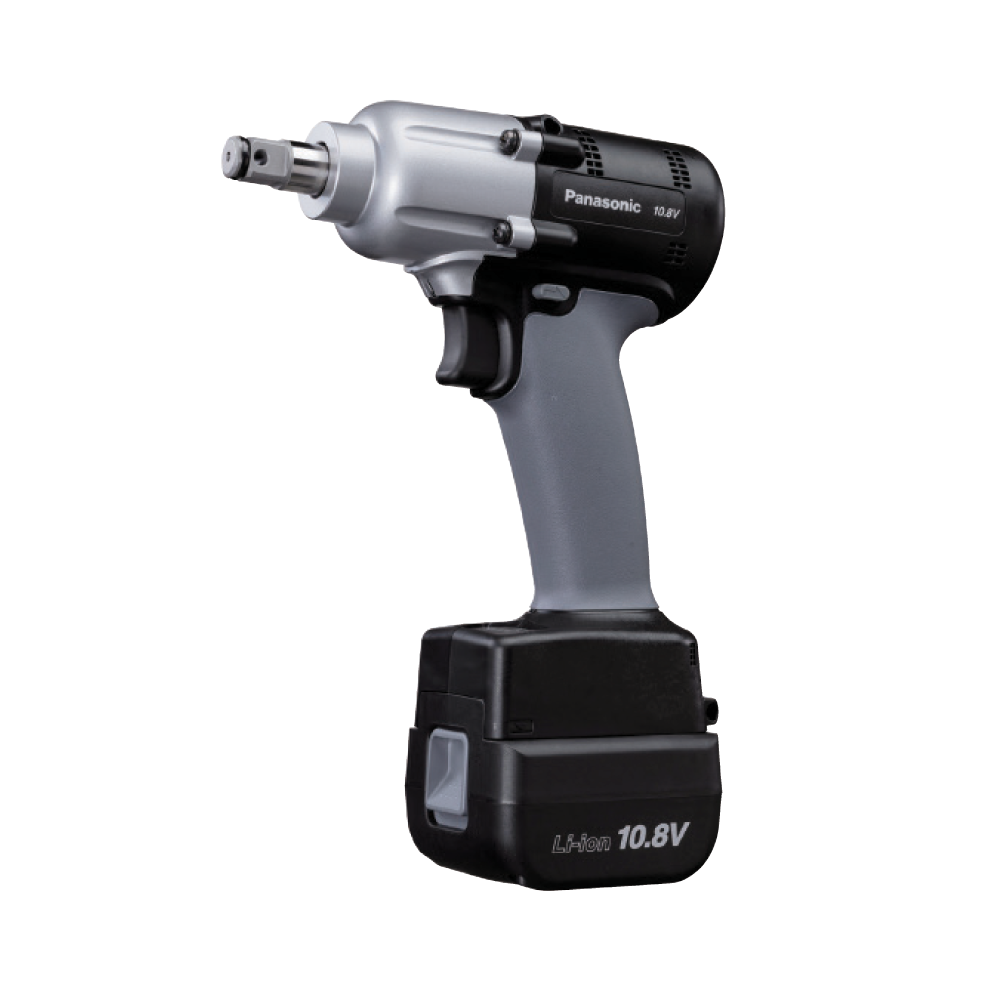

10.8V/ 14.4V Precision Shut-off Impact Driver & Wrench
Applicable bit size for quick change chuck
|

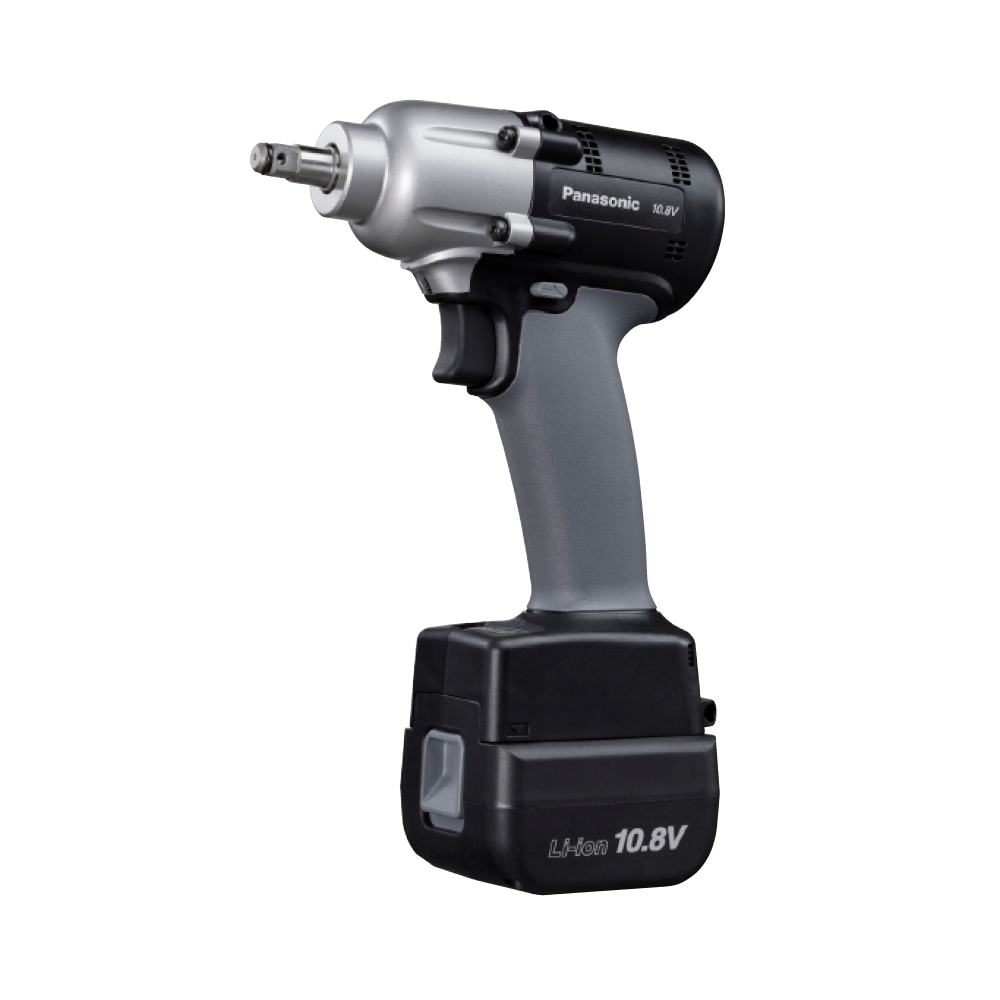

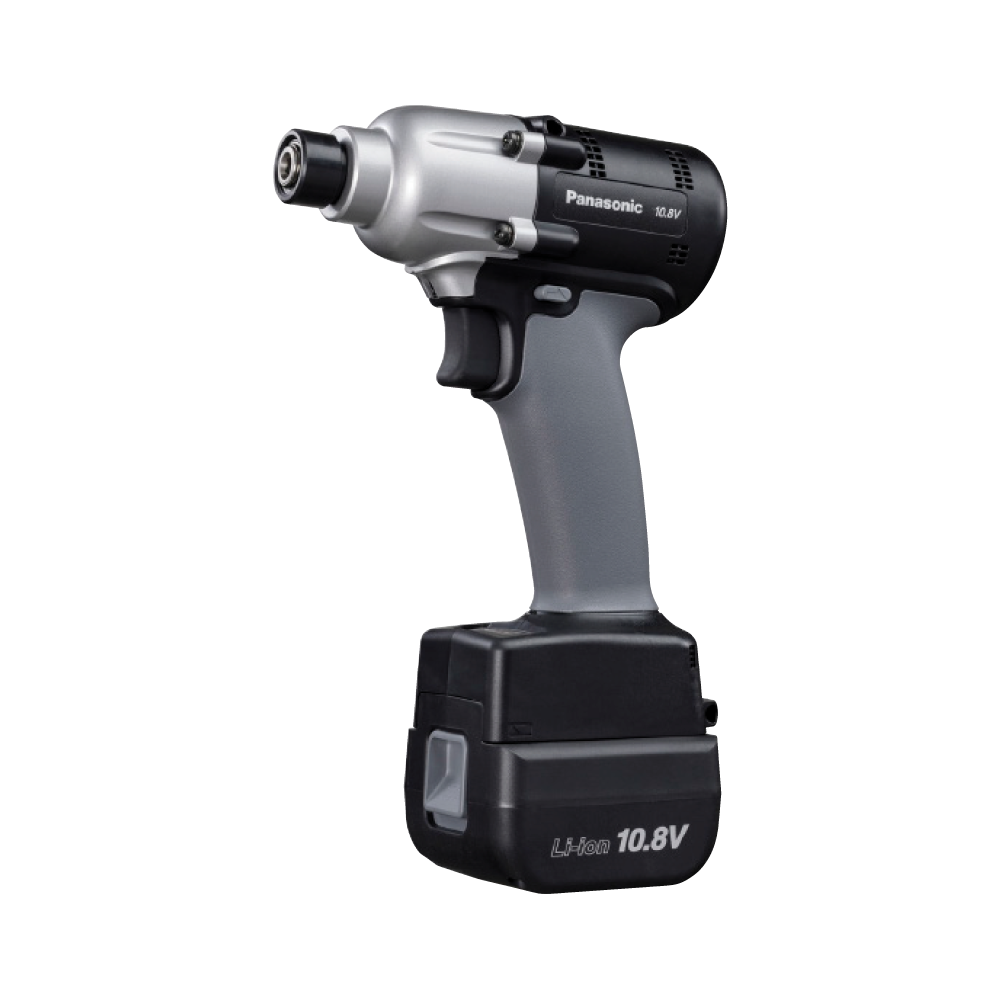

Cordless Impact Driver | Cordless Impact Wrench | ||
| EYFLA7A | EYFLA8A | EYFLA8C | ||
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
||
| Chuck / Anvil type | 1/4” Hex quick change | 1/4” Hex quick change | 9.5mm Sq. drive Retainer ring and Pin-hole | |
|---|---|---|---|---|
| Application | Screw M5•M6 (Normal—Tensile bolt) M8 bolt (Normal bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal—Tensile bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal—Tensile bolt) |
|
| Maximum torque (F mode, fastening 3 sec.) | approx. 35 N·m (M10 bolt) | approx. 80 N·m (M14 bolt) | approx. 80 N·m (M14 bolt) | |
| Shut-off range | approx. 3 ~ 22 N·m | approx. 6 ~ 30 N·m | approx. 6 ~ 30 N·m | |
| Torque setting | 40 stage + F (without torque setting mode) | |||
| Snug torque detection mode setting | 7 stages (L1 ~ L7) | |||
| No load speed (unit : rpm) |
stage1: 0~950, stage2: 0~1250 stage3: 0~1450, stage4~8: 0~1550 stage9~40-F: 0~2300 |
stage1: 0~1300, stage2: 0~1450 stage3: 0~1550, stage4~F: 0~2300 |
||
| Impact per minute | stage1: 0~1800, stage2: 0~2250 stage3: 0~2500, stage4~8: 0~2950 stage9~40-F: 0~3600 |
stage1: 0~2400, stage2: 0~2500 stage3: 0~2800, stage4~40-F: 0~3300 |

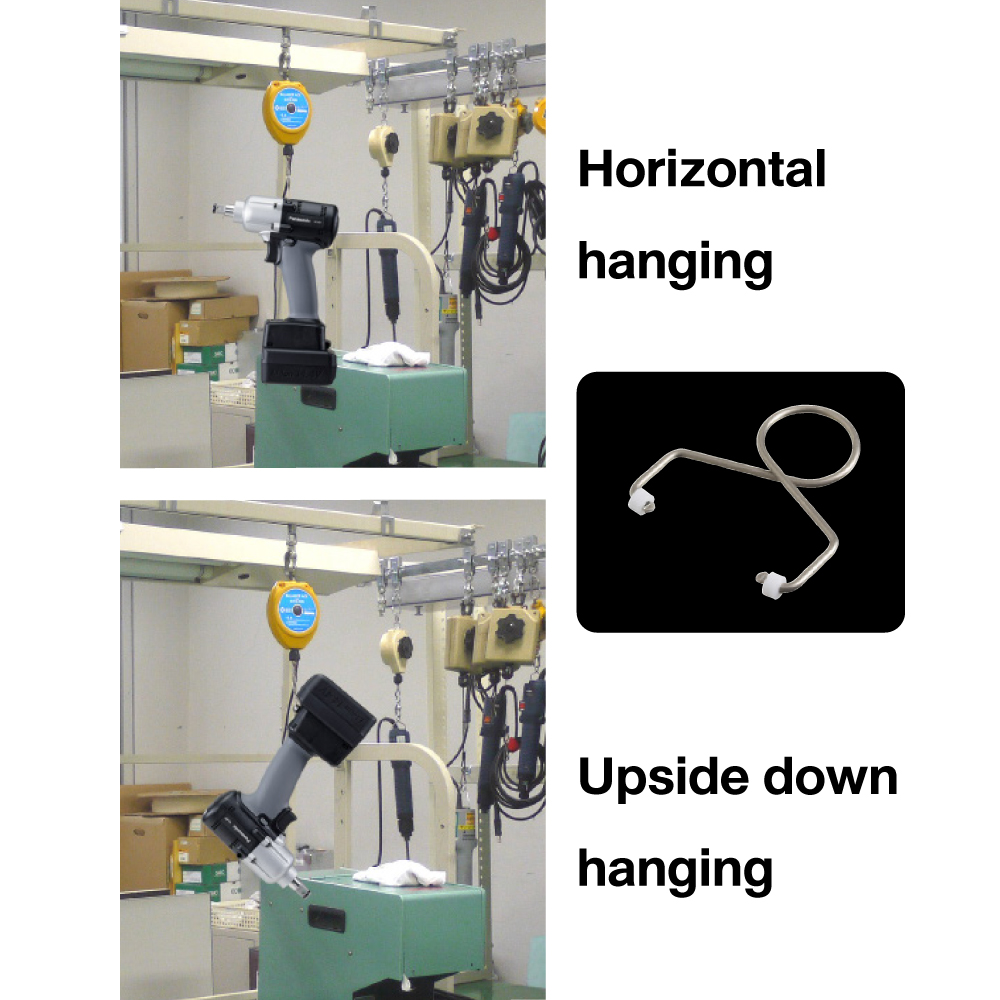

||
| Weight (inc. battery) |
EYFB30B | approx. 1.3kg | approx. 1.35kg | approx. 1.35kg |
| EYFB32B | approx. 1.15kg | approx. 1.15kg | approx. 1.15kg | |
| EYFB43B | — | — | — | |
| EYFB41B | — | — | — | |
| Size | Length | 153mm | 153mm | 162mm |
| Height | 249mm (EYFB30B), 231mm (EYFB32B) | |||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | |||
| Vibration | 5.2m/s² | 7.0m/s² | 6.3m/s² | |
| Function | LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | ||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | |||
| Battery indication lamp | ✓ (3 stages) | |||
| Auto battery shutdown | ✓ | |||
| Advanced fastening features | ✓ (For details of the feature, Please refer to page 7) | |||
| Tool hanger | ✓ | |||
| Work capacity / Fastening speed | <M6: 10 N·m, Stage: 22> (EYFB30B) approx. 1200 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 800 pcs/pack approx. 0.7 sec/1pcs |
<M8: 23 N·m, Stage: 22> (EYFB30B) approx. 800 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 540 pcs/pack approx. 0.8 sec/1pcs |
<M8: 23 N·m, Stage: 22> (EYFB30B) approx. 800 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 540 pcs/pack approx. 0.8 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EYOL82B) Usable charge: approx. 35 min. Full charge: approx. 45 min. (Battery Pack EYFB32B, Charger EYOL82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min. |
|||
Applicable bit size for quick change chuck
|
Cordless Impact Wrench | ||
| EYFLA9C | EYFMA2C | ||
10.8V
Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
14.4V
Brushless
Motor 4.0Ah
2.0Ah
*Battery pack is not included |
||
| Chuck / Anvil type | 12.7mm Sq. drive Retainer ring and Pin-hole | 12.7mm Sq. drive Retainer ring and Pin-hole | |
|---|---|---|---|
| Application | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal-Tensile bolt) M14 bolt (Normal bolt) |
|
| Maximum torque (F mode, fastening 3 sec.) | approx. 120 N·m (M14 Tensile bolt) | approx.185 N·m(M16 Tensile bolt) | |
| Shut-off range | approx. 20 ~ 60 N·m | approx. 25 ~ 120 N·m | |
| Torque setting | 40 stages + F (without torque setting mode) | ||
| Snug torque detection mode setting | 7 stages (L1 ~ L7) | ||
| No load speed (unit : rpm) |
0 ~ 2300 | 0 ~ 2300 | |
| Impact per minute | 0 ~ 2800 | 0 ~ 28900 | |
| Weight (inc. battery) |
EYFB30B | approx. 1.45kg | — |
| EYFB32B | approx. 1.3kg | — | |
| EYFB43B | — | approx. 1.6kg | |
| EYFB41B | — | approx. 1.4kg | |
| Size | Length | 172mm | |
| Height | 250mm (EYFB30B), 232mm (EYFB32B) 250mm (EYFB43B), 232mm (EYFB41B) | ||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | ||
| Vibration | 5.1m/s² | 6.9m/s² | |
| Function | LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | |
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | ||
| Battery indication lamp | ✓ (3 stages) | ||
| Auto battery shutdown | ✓ | ||
| Advanced fastening features | ✓ (For details of the feature, Please refer to page 7) | ||
| Tool hanger | ✓ | ||
| Work capacity / Fastening speed | <M10: 43 N·m, Stage: 15> (EYFB30B) approx. 540 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 150 pcs/pack approx. 0.7 sec/1pcs |
<M12: 71 N·m, Stage: 22> (EYFB43B) approx. 510 pcs/pack approx. 0.8 sec/1pcs (EYFB41B) approx. 270 pcs/pack approx. 0.8 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
(Battery pack EYFB43B, Charger EY0L82B) Usable Charge: approx. 45 min. Full Charge: approx. 60 min (Battery Pack EYFB41B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
|

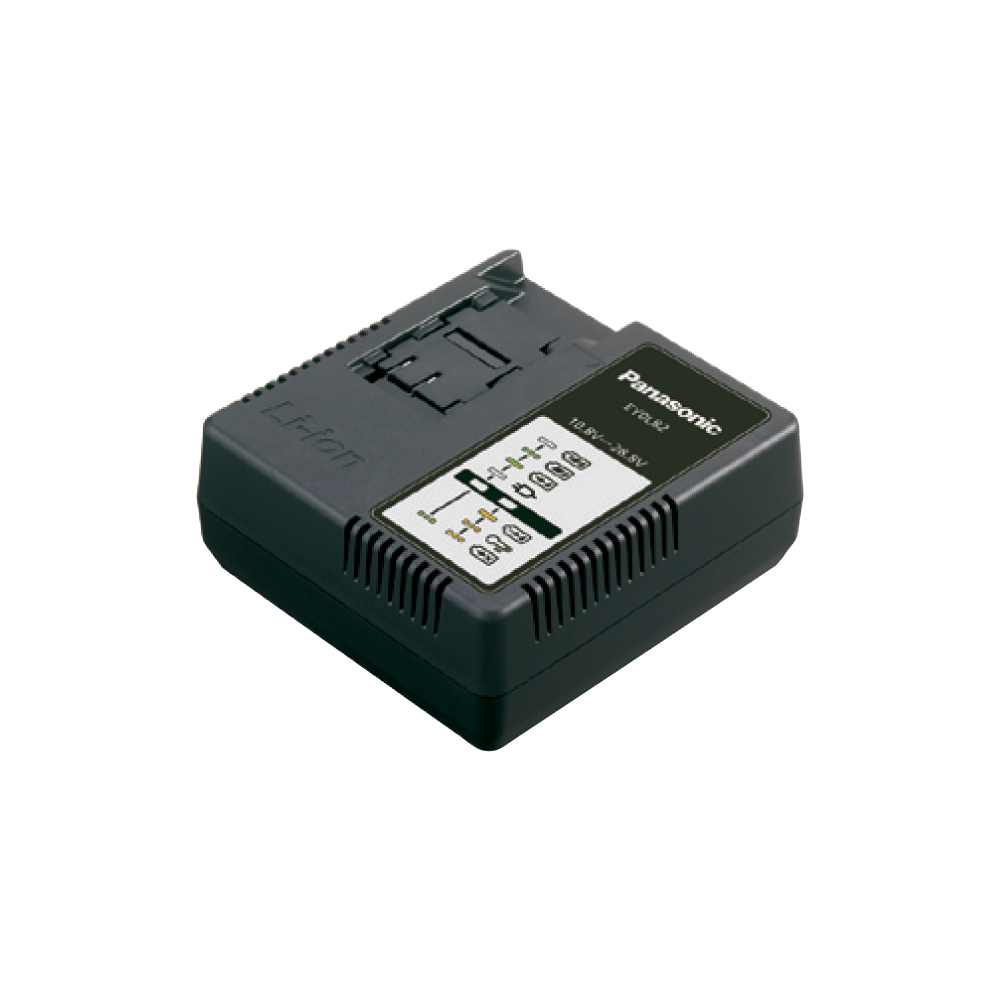

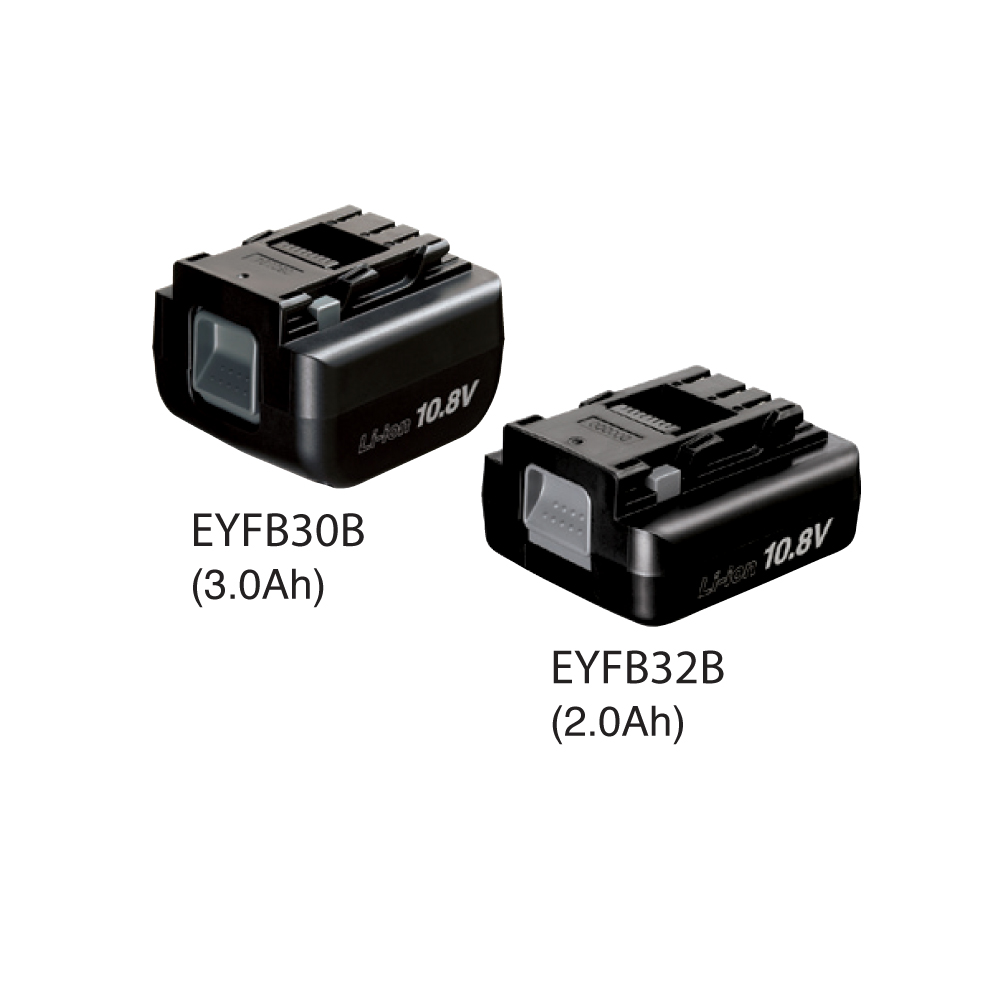

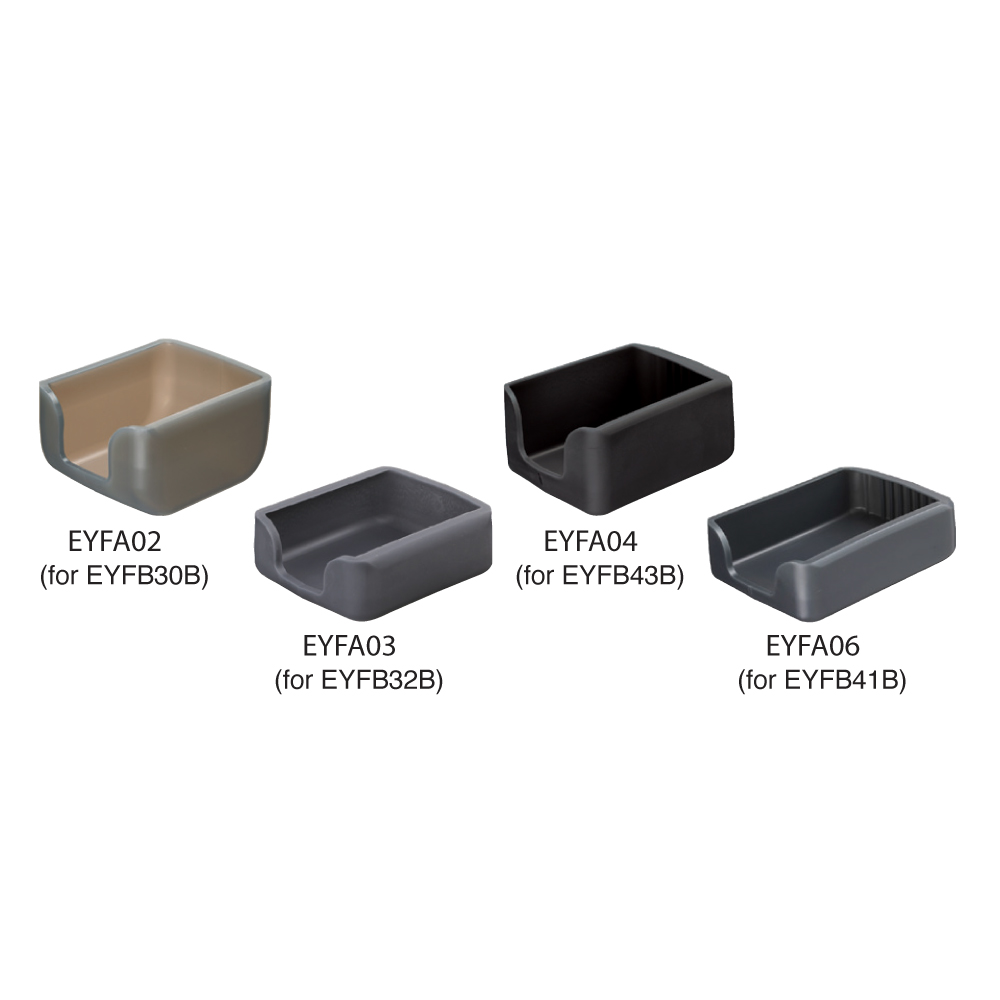

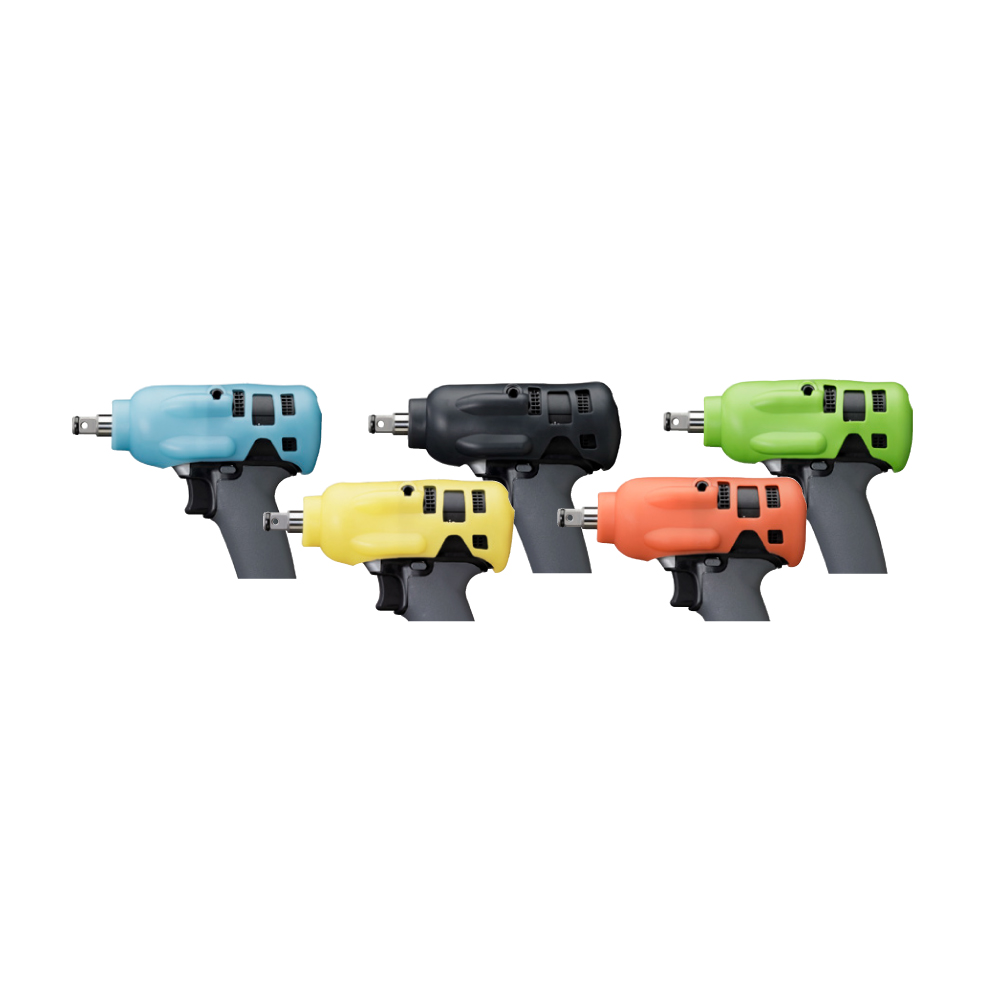

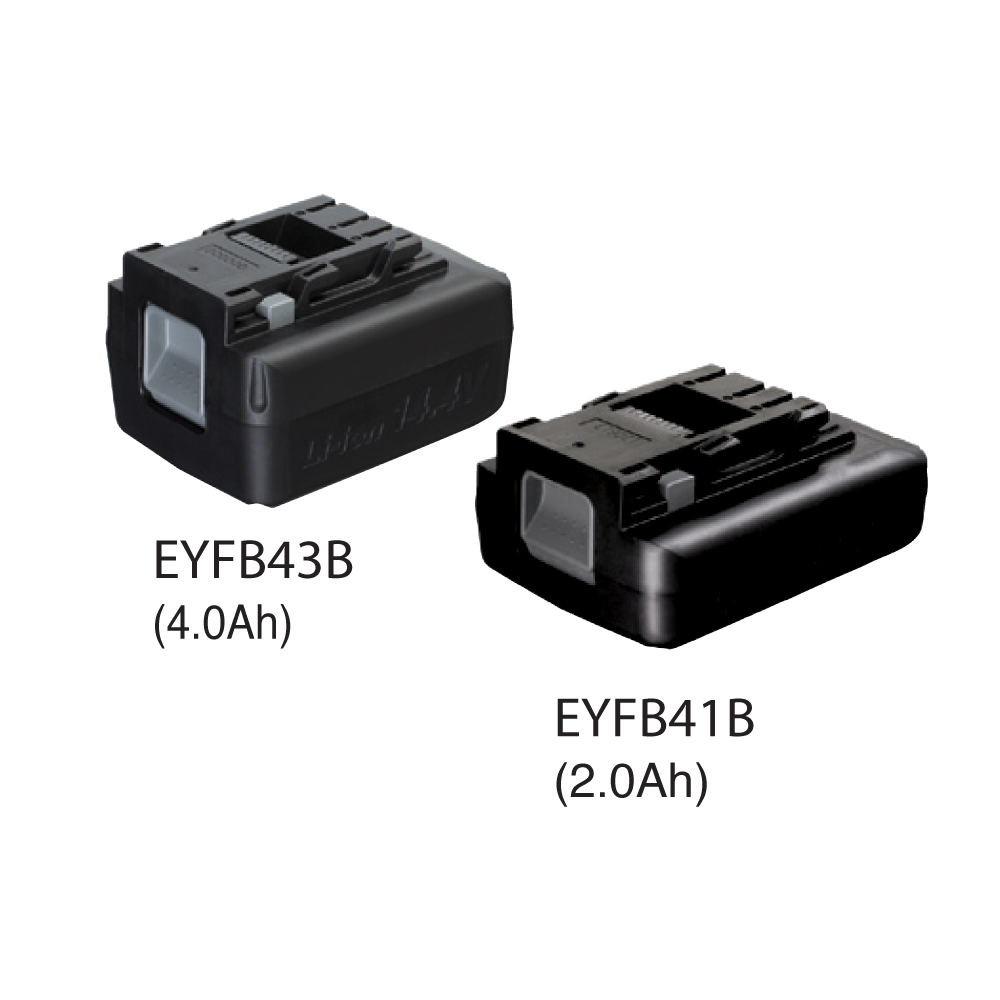

Optional Accessory
