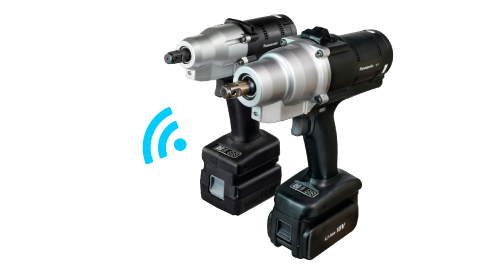

Electronic Mechanical Pulse Wrench and Wireless Communication
FEATURES
Precision You Can Trust
01

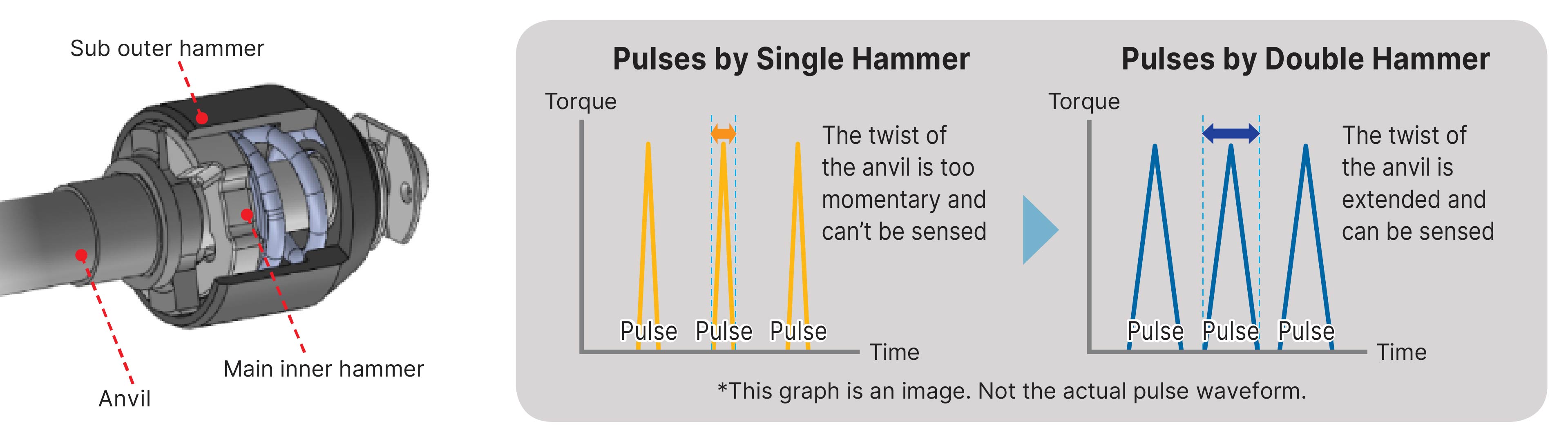

Panasonic Unique Technologies for
Mechanical Pulse Torque Sensing
Advanced Traceability Data Management
Optimize Your Data Management
The tool can output torque value, angle value, fastening curve and other
traceability data to PC・Tablet or your assembly management system.
Accurate Fastening Performance
Revolutionary Torque Sensing Technology

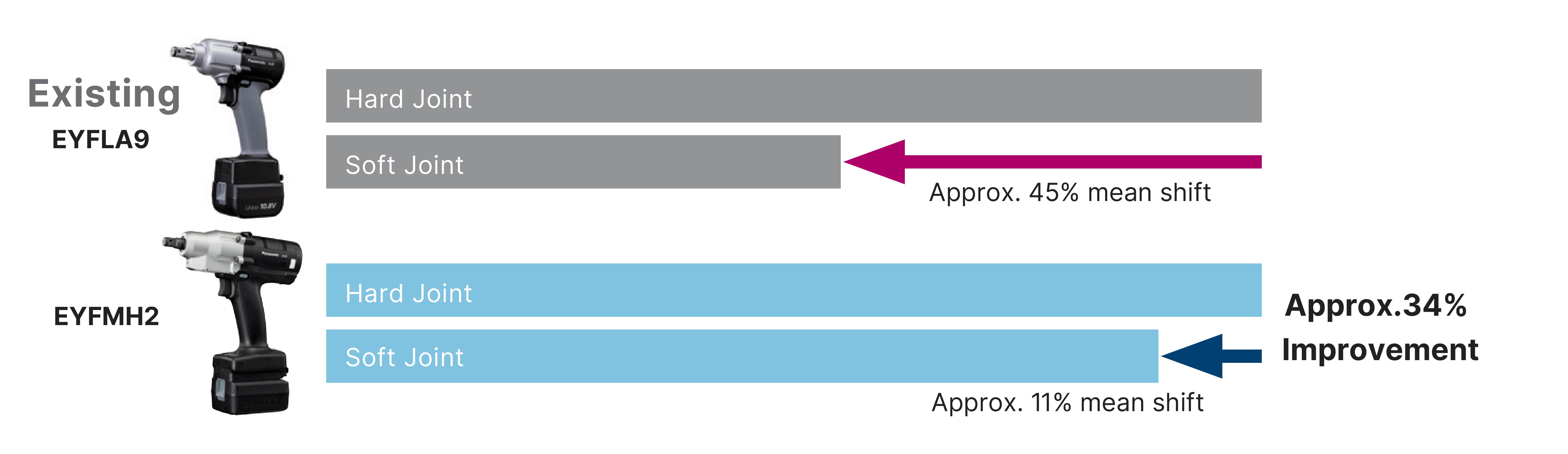

Less Mean-Shift (Bolt size: M12 Target torque: 71Nm)
Mean-shift is reduced by the torque sensing. In addition, the tool can offset the mean-shift by its unique algor
*The values in this chart were measured under Panasonic measuring condition and are provided only for reference purpose. Actual tightening torque may vary with ambient conditions.
Validation Data (Socket length: 40mm) (only for reference purpose)
| Model | Joint | Socket length | Bolt Size | Target | 1 | 2 | 3 | 4 | 5 | 26 | 27 | 28 | 29 | 30 | Average | Accuracy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14.4V  |
Hard | 40mm | M10 | 50Nm | 50 | 52 | 51 | 53 | 51 | ~ | 51 | 52 | 52 | 49 | 50 | 51.8 | 5.3% |
| M12 | 80Nm | 81 | 82 | 83 | 83 | 82 | 84 | 83 | 80 | 82 | 83 | 81.2 | 7.1% | ||||
|
18V  |
Hard | 40mm | M12 | 70Nm | 72 | 73 | 76 | 75 | 76 | 71 | 70 | 72 | 73 | 75 | 72.0 | 9.6% | |
| M14 | 140Nm | 138 | 139 | 137 | 142 | 145 | 144 | 138 | 135 | 142 | 133 | 137.6 | 8.0% | ||||
| M16 | 190Nm | 199 | 191 | 182 | 188 | 192 | 194 | 187 | 191 | 184 | 191 | 190.2 | 7.3% |
*The values in this chart were measured under Panasonic measuring condition and are provided only for reference purpose. Actual tightening torque may vary with ambient conditions.
High Work Efficiency and Low Running Cost
Powerful, Compact, and Economical

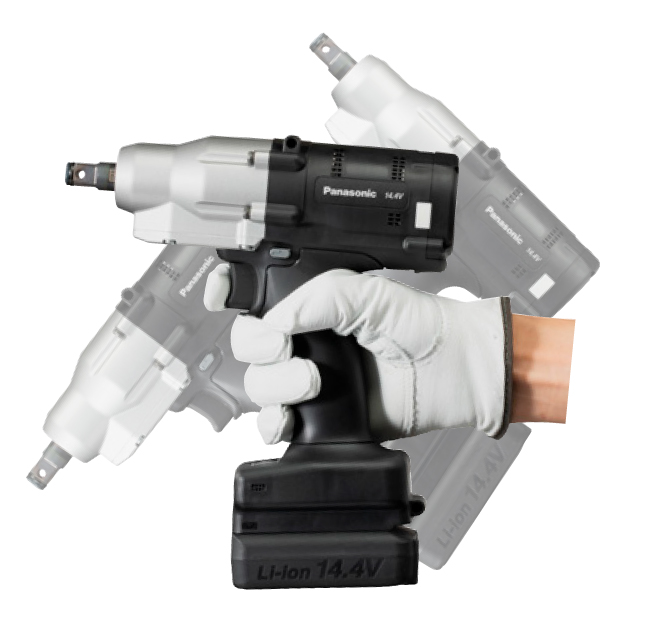

Up to 120Nm fastening with *1.85kg light weight body!
Possible to use with one hand.
*with EYFB41 battery pack

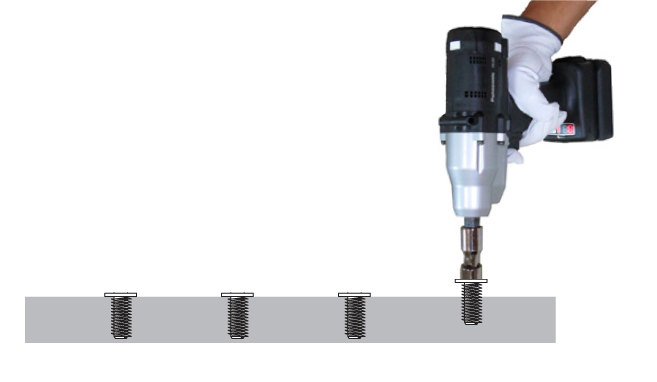

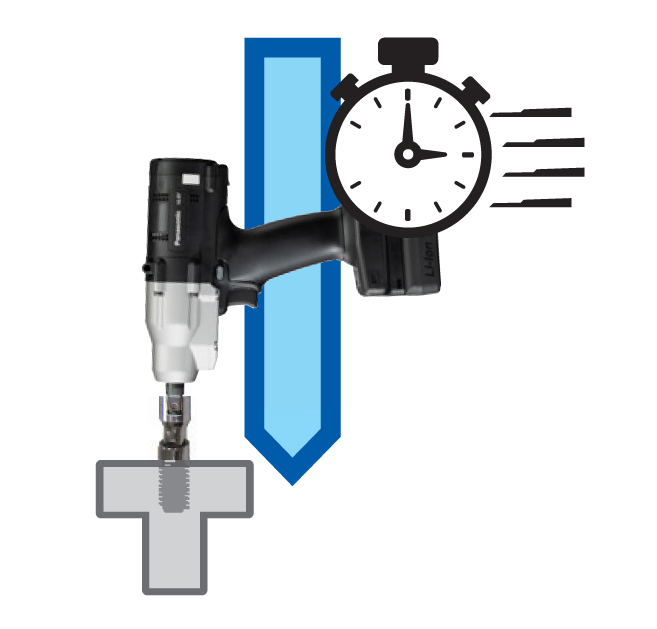

Powerful mechanical pulse for speedy fastening even after snug!
The tool can be used with confidence even in quick tack time.

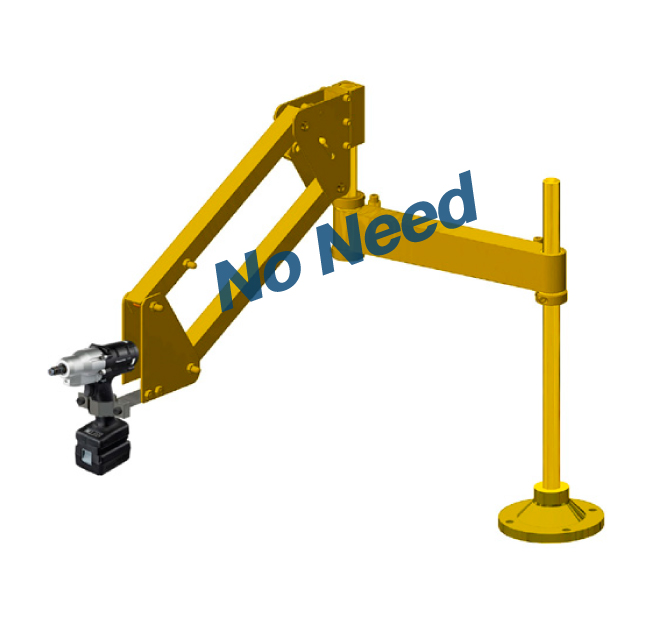

The tool causes no reaction and doesn't require reaction arm

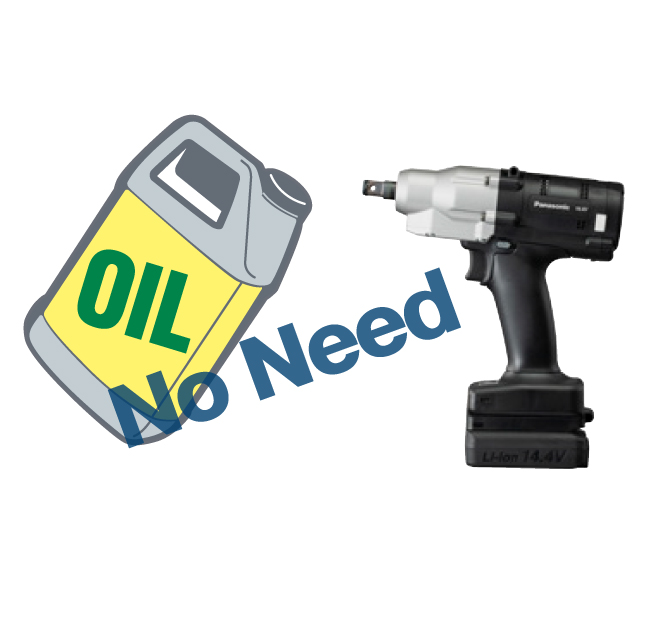

No oil in the pulse block and no worry for interruption due to its overheat even in continuous rundowns
Mechanical pulse block requires no oil change and can make stable torque

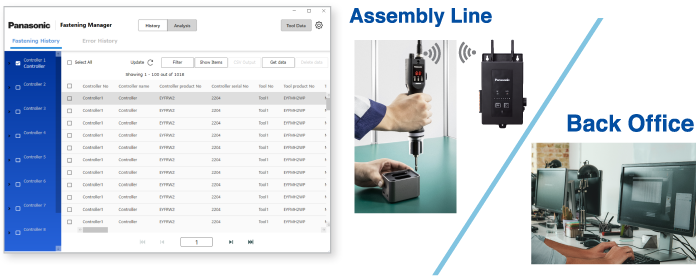

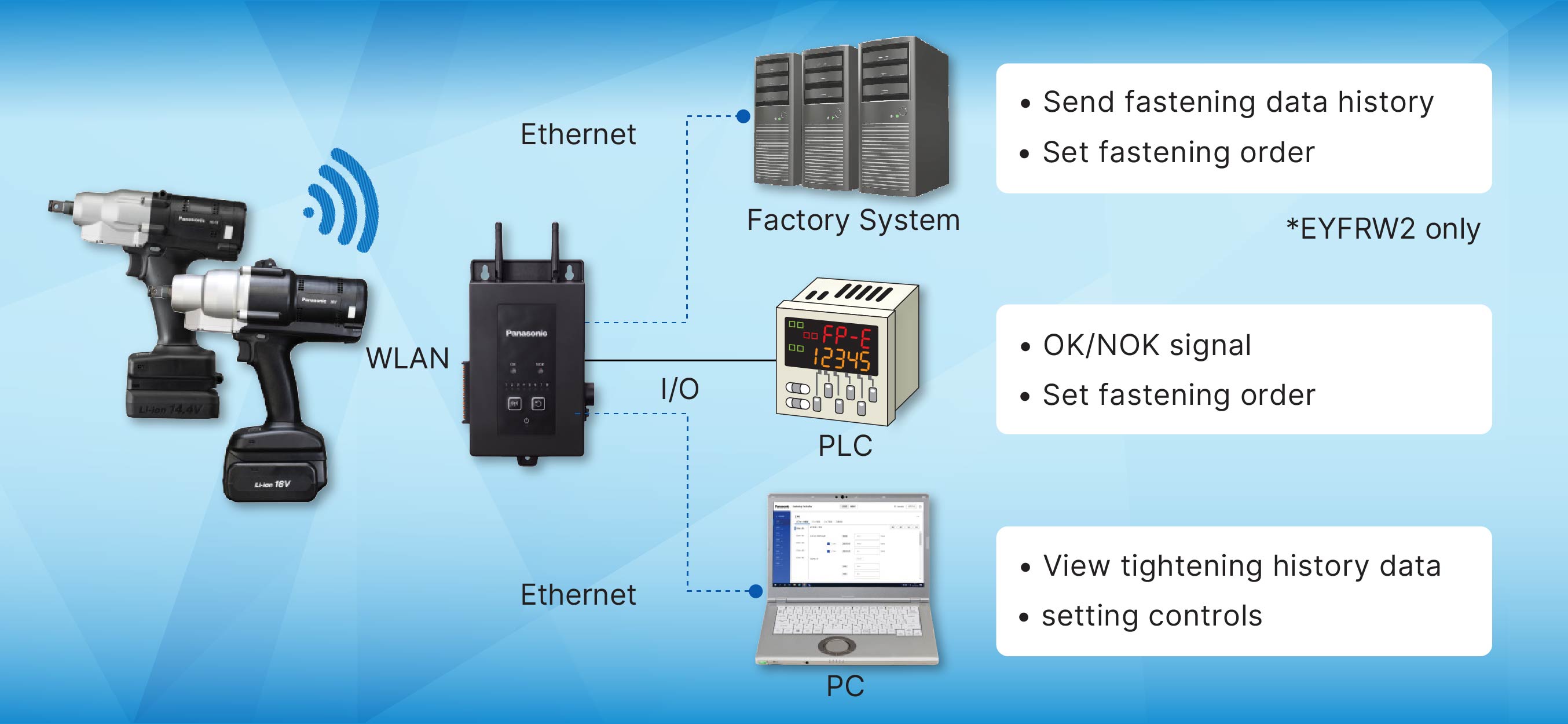

System Diagram
Visual Guide to the System
*USB Type-C is a trademark of USB Implementers Forum.
More Features
Explore Enhanced Functionality

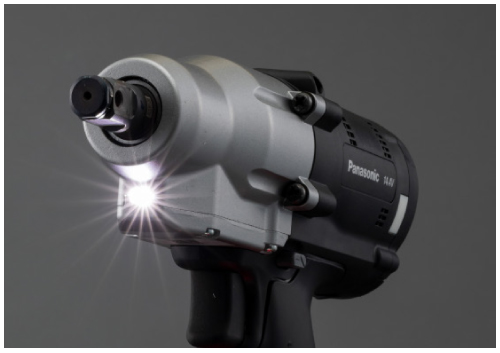

LED Light
For operations in dimly lit place.

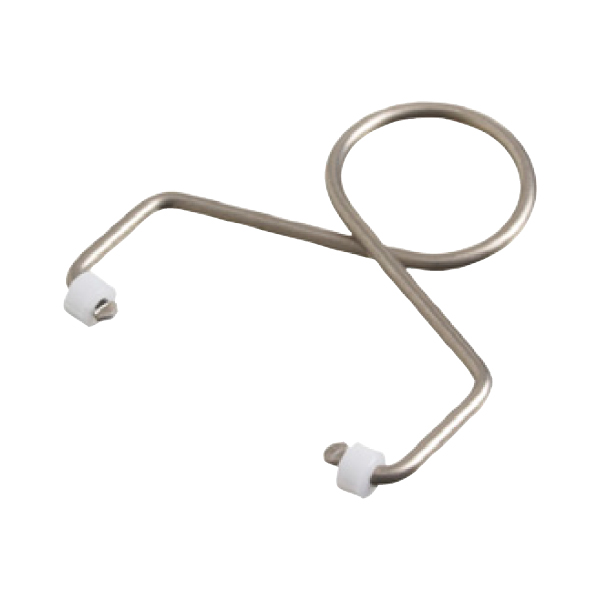

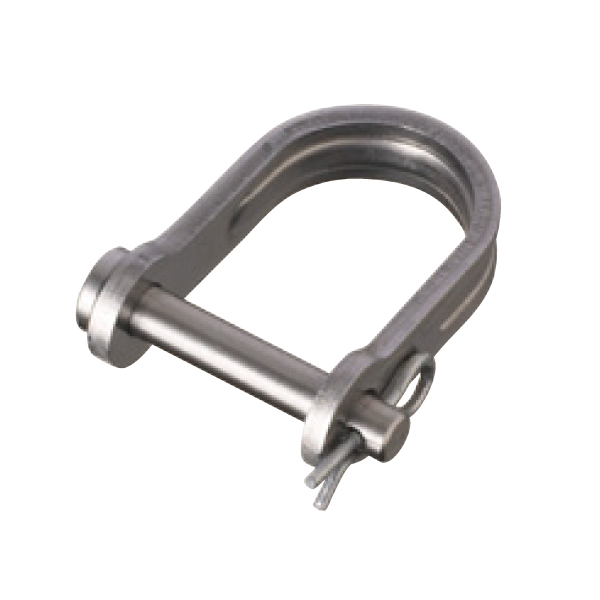

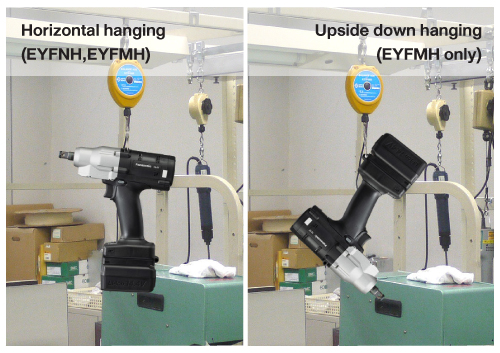

Tool Hanger
The tool can be hung on a balancer both horizontally and upside down with accessory tool hanger.

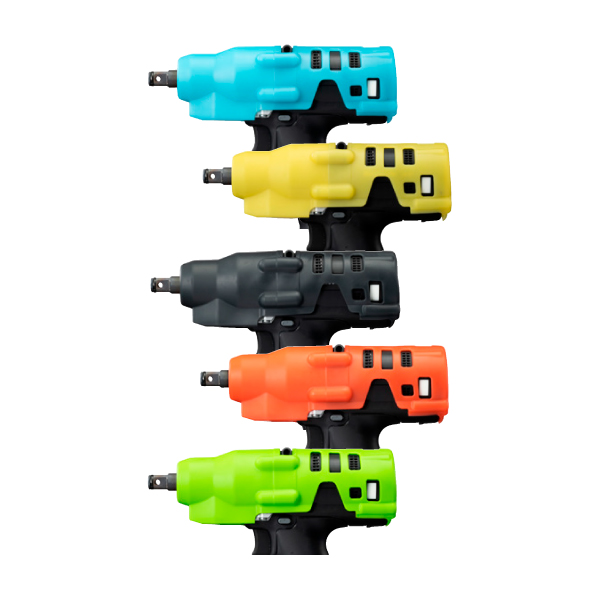

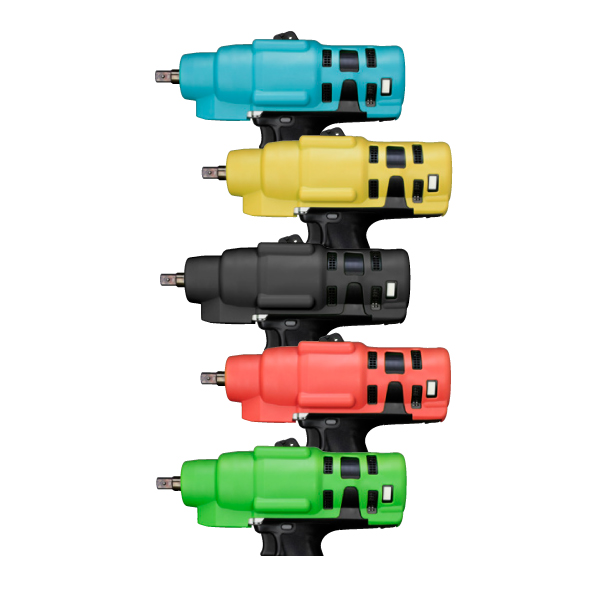

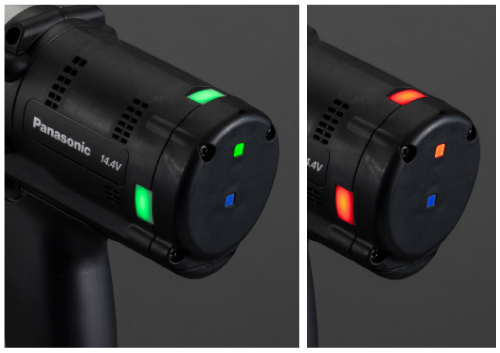

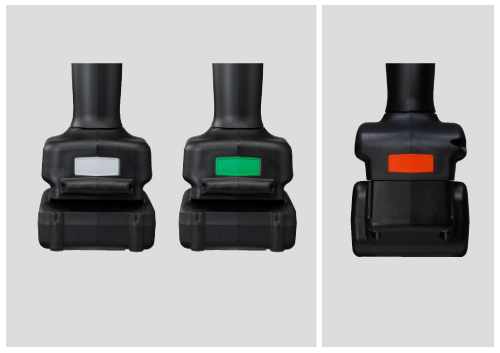

Color Plate for Differentiation
Each tool model is color coded for easy indentification.

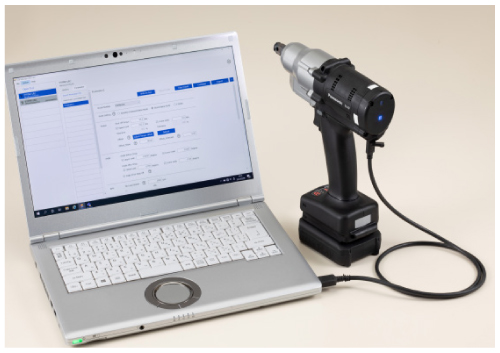

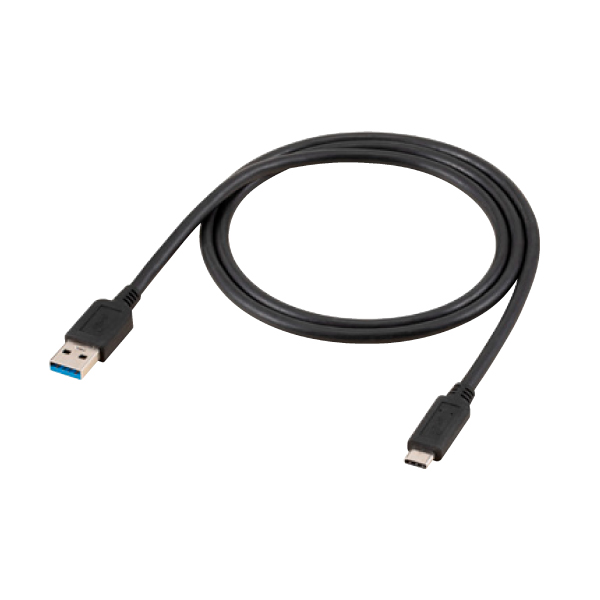

USB Connection
Easy connection with PC・tablet using “USB Type-C” on the tool.
PRODUCT SPECIFICATION
02

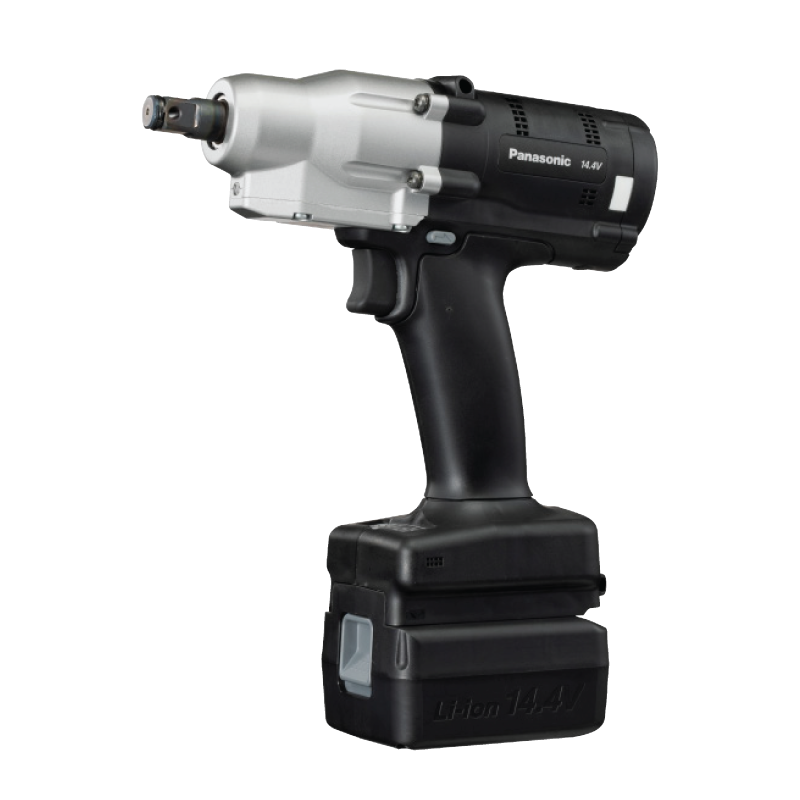

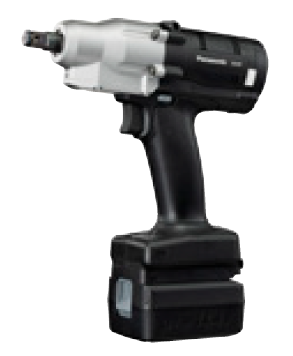

14.4V Electronic Mechanical Pulse Wrench
and Wireless Communication
|
Electronic Mechanical Pulse Wrench | ||
| EYFMH1WC | EYFMH2WC | ||
14.4V
Wireless Brushless
Motor 4.0Ah
2.0Ah
*Battery pack is not included |
|||
| Chuck / Anvil type | 12.7mm Sq. drive Retainer ring and Pin-hole | ||
|---|---|---|---|
| Application | M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal-Tensile bolt) M14 bolt (Normal bolt) |
|
| Shut-off range | 20 ~ 60 Nm | 50 ~ 120 Nm | |
| No load speed (unit: rpm) |
0 ~ 2,300 (Max. rpm is adjustable from 1,500 to 2,300 in 100 increments) |
||
| Impact per minutes | 0 ~ 2,700 | 0 ~ 2,600 | |
| Weight*¹ (inc. battery) |
EYFB43B | 2.05kg | |
| EYFB41B | 1.8kg | ||
| Size | Length | 215mm | |
| Height | 246mm (EYFB41), 264mm (EYFB43) | ||
| Width | 61mm (Width of battery pack: 75mm) | ||
| Function | Torque result | √ | |
| Angle result | √ | ||
| Fastening curve | √ | ||
| Number of preset | Wireless Communication Mode: 5 (with EYFRW2), Standalone Mode: 1 | ||
| Data storage |
√ (Standalone Mode: approx. 45,000 history data can be stored in case of 1.2 sec fastening work) |
||
| Wireless communication | √ (IEEE802.11a/b/g/n) | ||
| USB connection | √ (USB Type-C™) | ||
| Advanced fastening features | √ (For details of the feature, please refer to page 7) | ||
| Auto battery shutdown | √ | ||
| Work capacity / Fastening speed (approx.) |
<M8: 23Nm> (EYFB43) 940 pcs/pack, 0.5 sec/1pcs (EYFB41) 490 pcs/pack, 0.5 sec/1pcs <M10: 43Nm> (EYFB43) 670 pcs/pack, 0.7 sec/1pcs (EYFB41) 350 pcs/pack, 0.7 sec/1pcs |
<M12: 71Nm> (EYFB43) 450 pcs/pack, 0.9 sec/1pcs (EYFB41) 230 pcs/pack, 0.9 sec/1pcs |
|
| Charging time (approx.) |

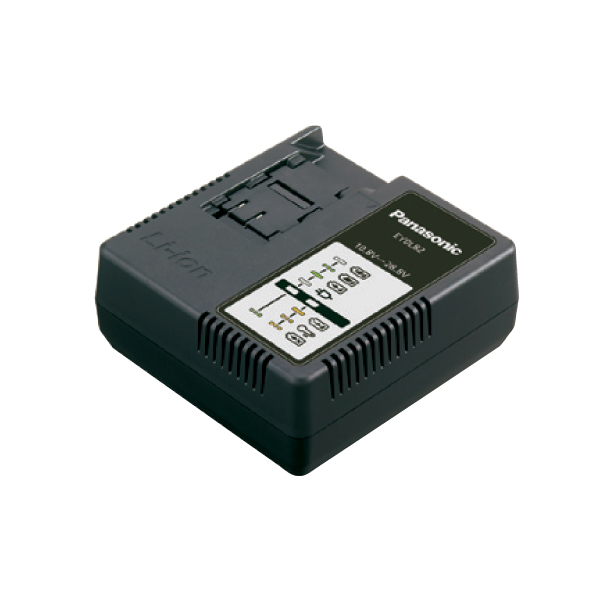

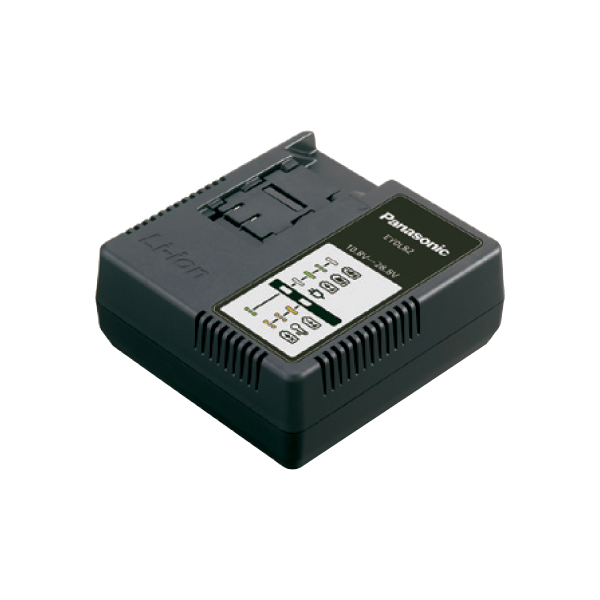

(Battery Pack EYFB43B, Charger EY0L82B) Usable Charge: 45min, Full Charge: 60min (Battery Pack EYFB41B, Charger EY0L82B) Usable Charge: 35min, Full Charge: 40min |
||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

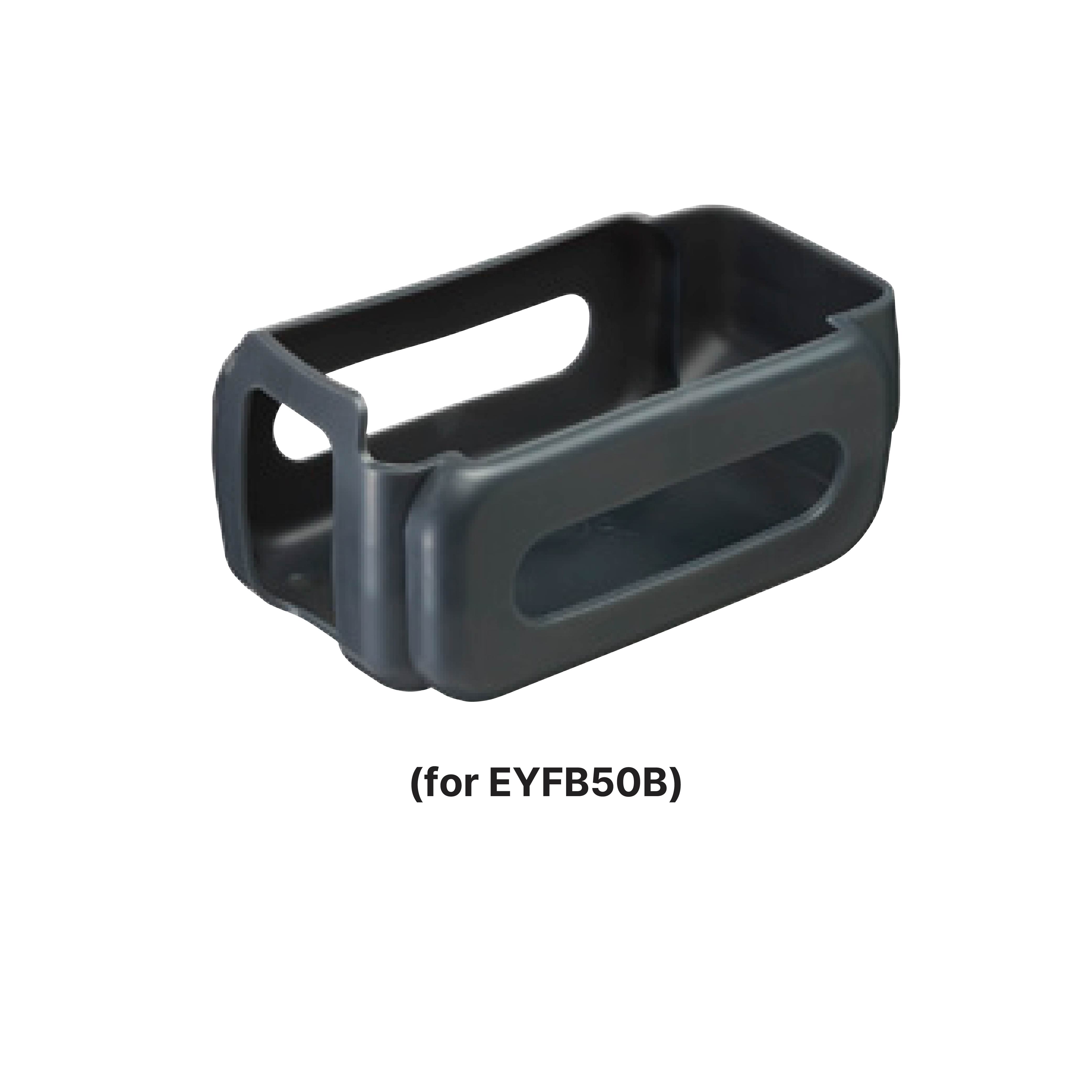

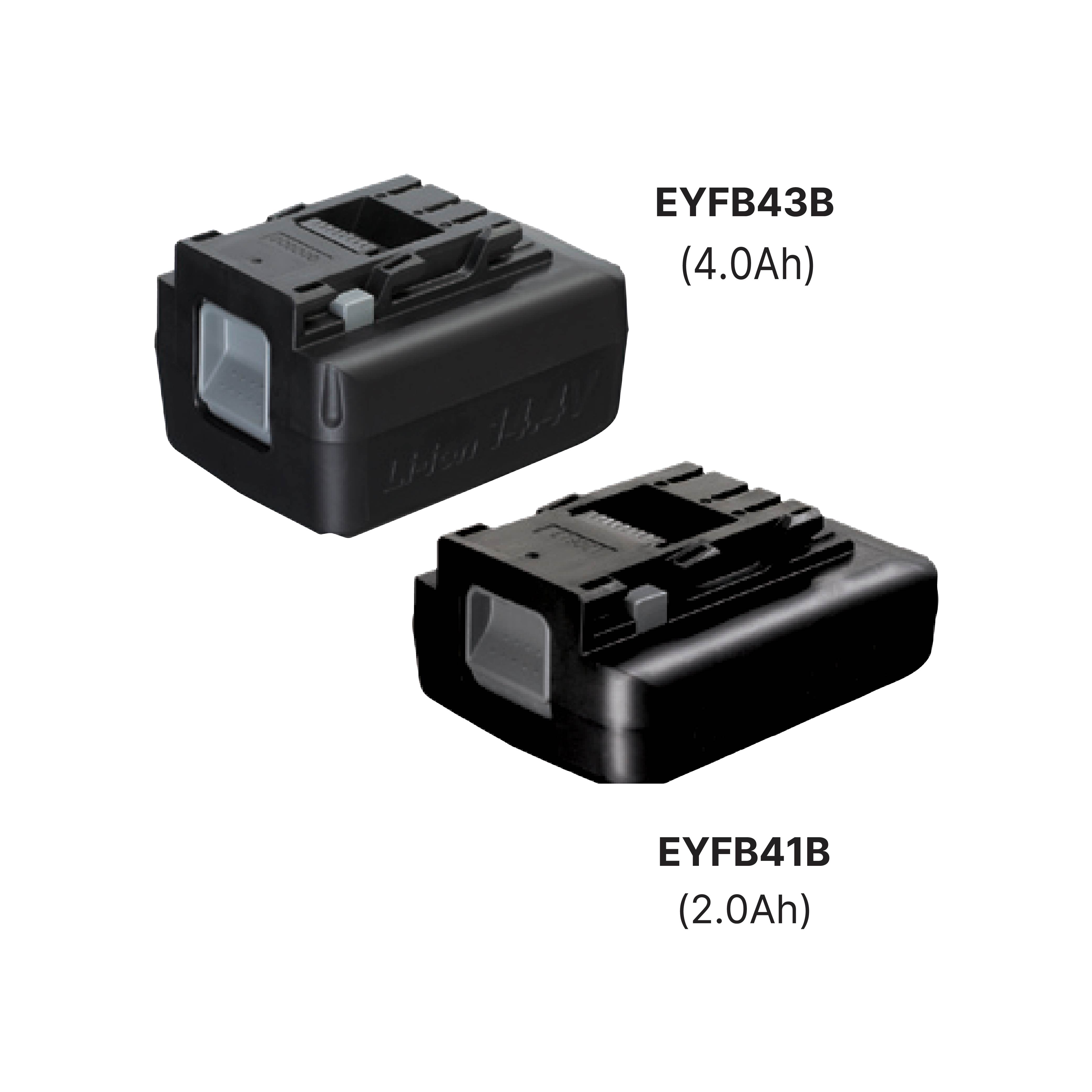

Optional Accessory

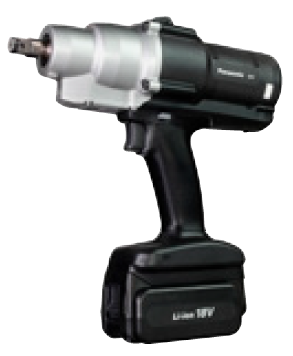

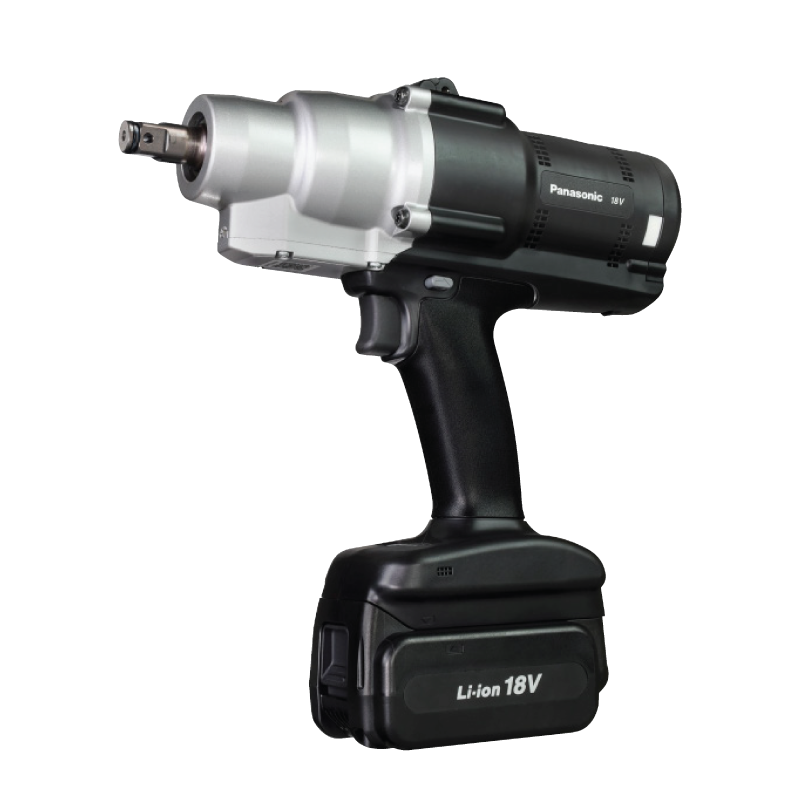

18V Electronic Mechanical Pulse Wrench
|
|
Electronic Mechanical Pulse Wrench | ||
| EYFNH1WC | |||
18V
Wireless Brushless
Motor 5.0Ah
*Battery pack is not included |
|||
| Chuck / Anvil type | 12.7mm Sq. drive Retainer ring and Pin-hole | ||
|---|---|---|---|
| Application | M12 • M14 bolt (Tensile bolt) M16 • M18 bolt (Normal bolt) |
||
| Shut-off range | 70-220 Nm | ||
| No load speed (unit: rpm) |
0-1,900 rpm (Max. rpm is adjustable from 1,300 to 1,900 in 100 rpm increments) |
||
| Impact per minutes | 0 ~ 2,400 | ||
| Weight*¹ (inc. battery) |
EYFB50B | 3.35kg | |
| Size | Length | 265mm | |
| Height | 294mm (EYFB50) | ||
| Width | 76mm (Width of battery pack: 76mm) | ||
| Function | Torque result | √ | |
| Angle result | √ | ||
| Fastening curve | √ | ||
| Number of preset | Wireless Communication Mode: 5 (with EYFRW2), Standalone Mode: 1 | ||
| Data storage |
√ (Standalone Mode: approx. 45,000 history data can be stored in case of 1.2 sec. fastening work) |
||
| Wireless communication | √ (IEEE802.11a/b/g/n ) | ||
| USB connection | √ (USB Type-C™) | ||
| Advanced fastening features | √ (For details of the feature, please refer to page 7) | ||
| Auto battery shutdown | √ | ||
| Work capacity / Fastening speed (approx.) |
<M12: 100Nm> (EYFB50) approx. 500 pcs/pack approx. 1.0 sec/1pcs |
||
| Charging time (approx.) |
(Battery pack EYFB50B, Charger EY0L82B)
Usable Charge: 65 min. Full Charge: 80 min |
||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

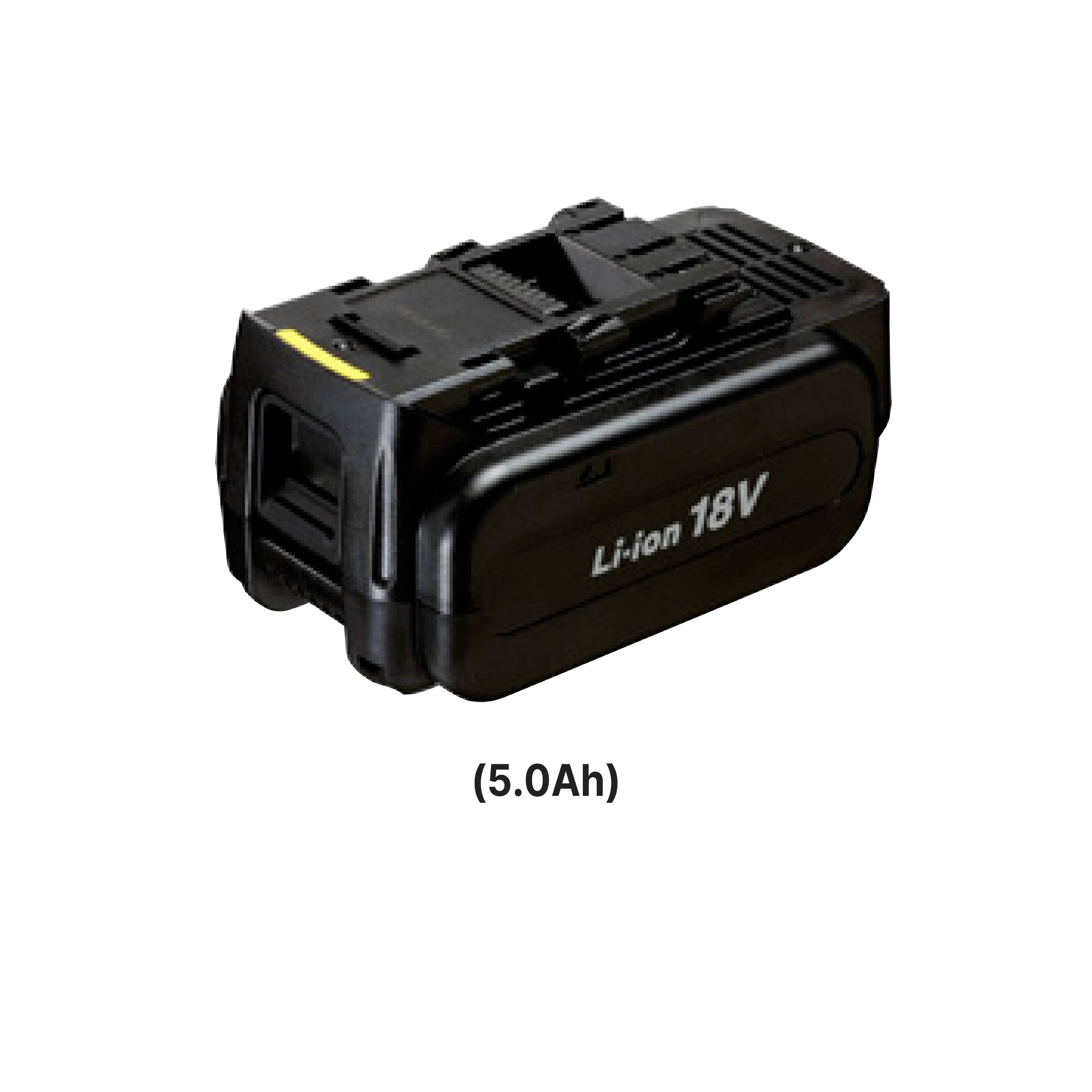

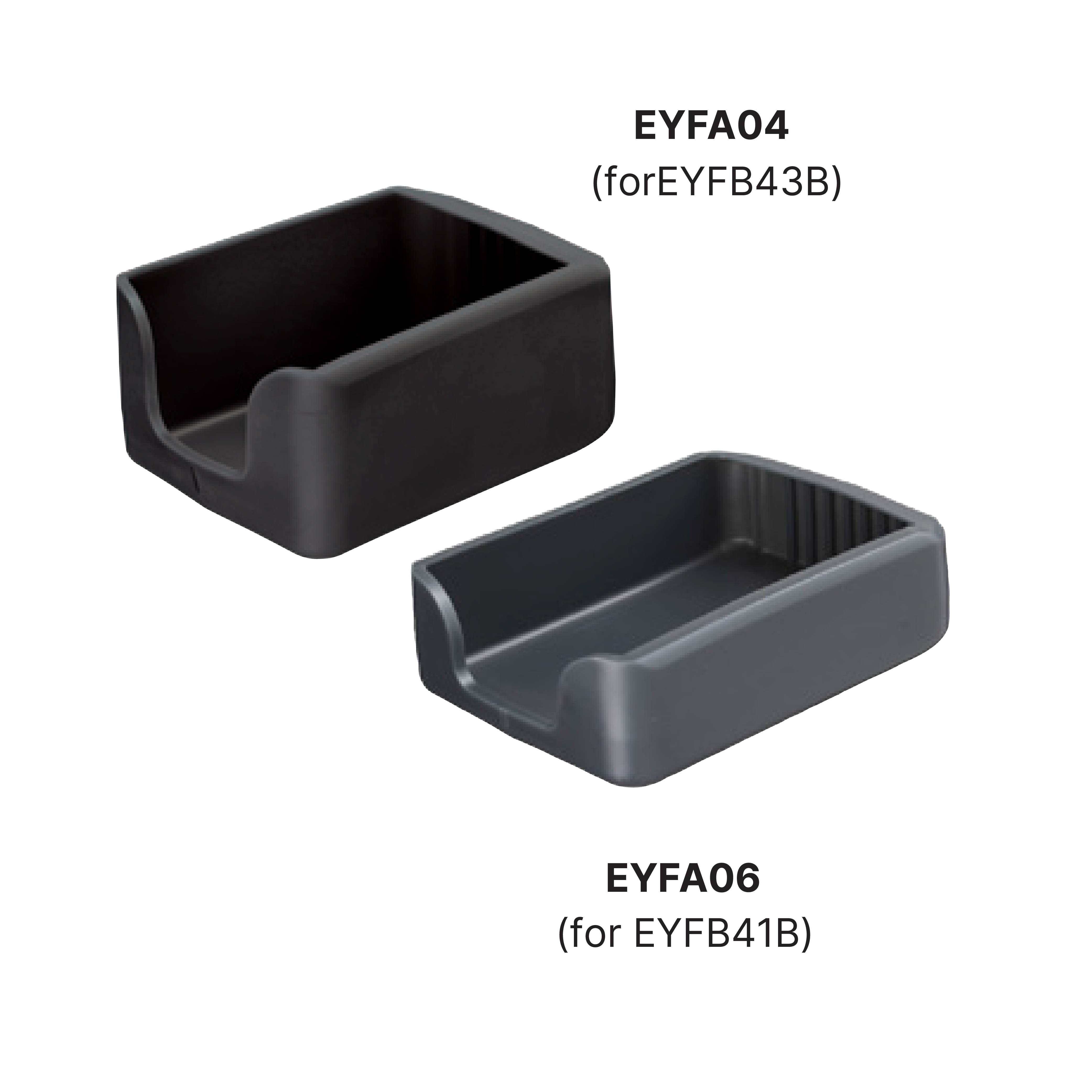

Optional Accessory

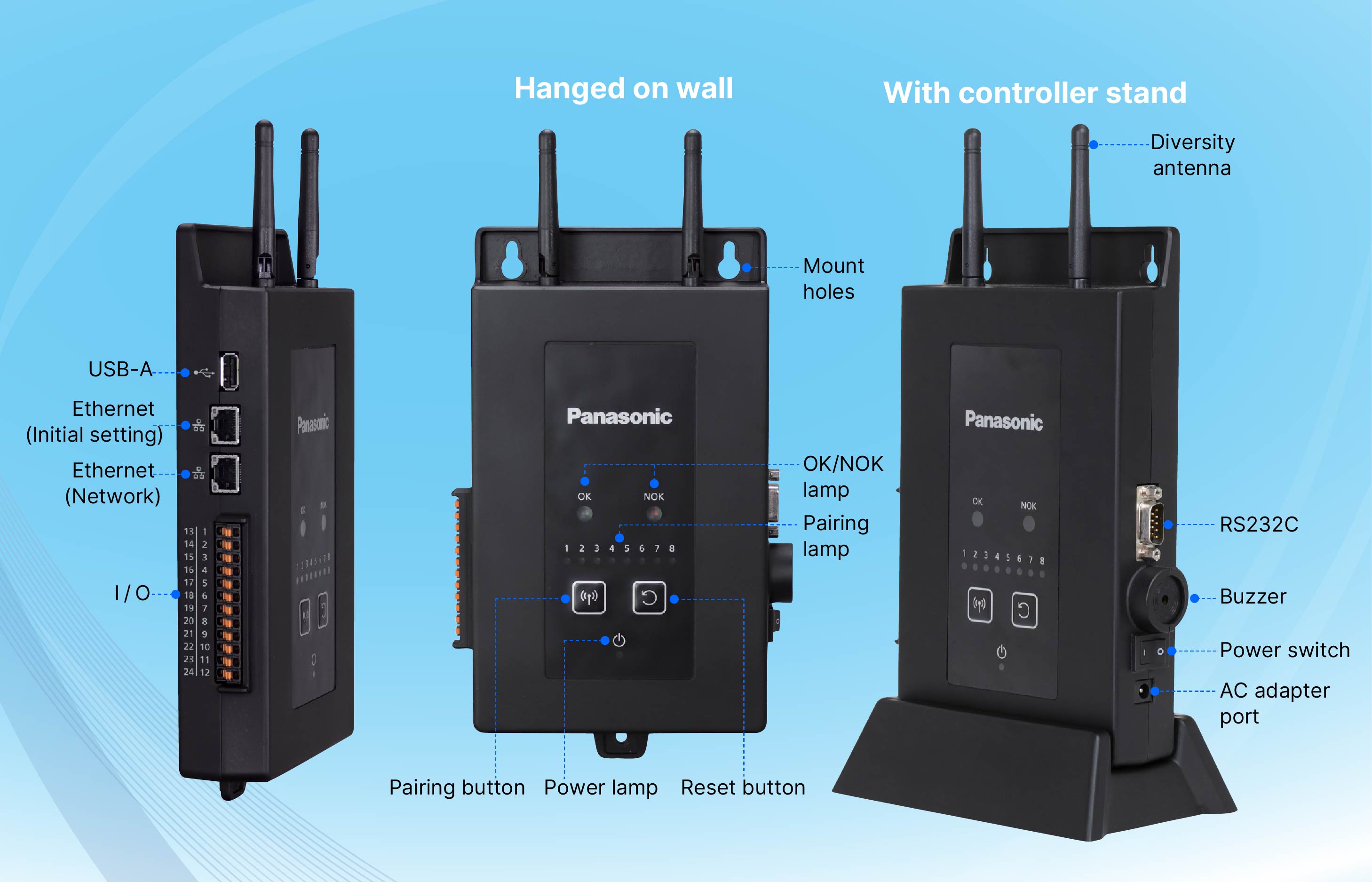

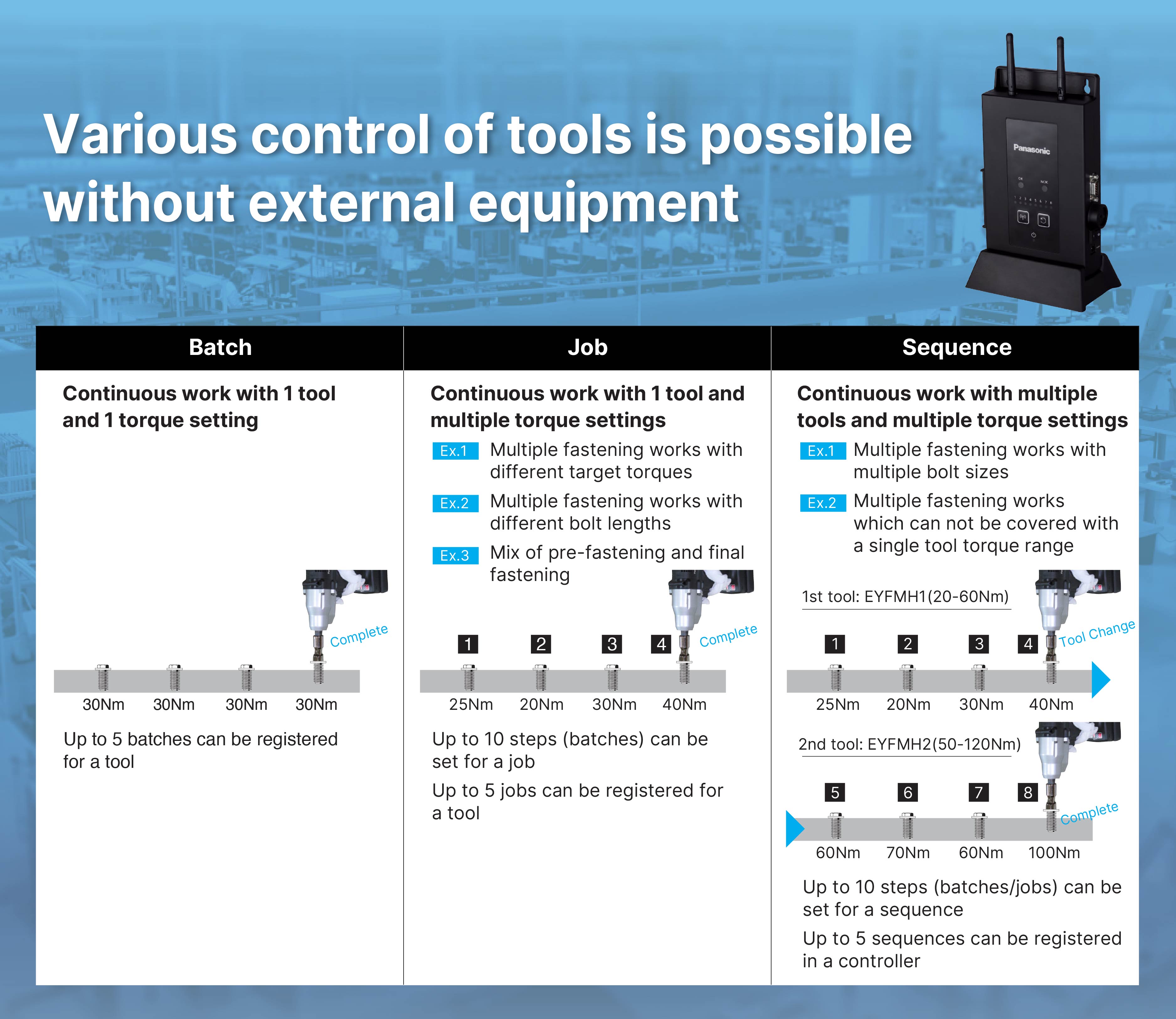

WLAN CONTROLLER
WLAN controller with maximum 8 tools
simultaneous control capability
03

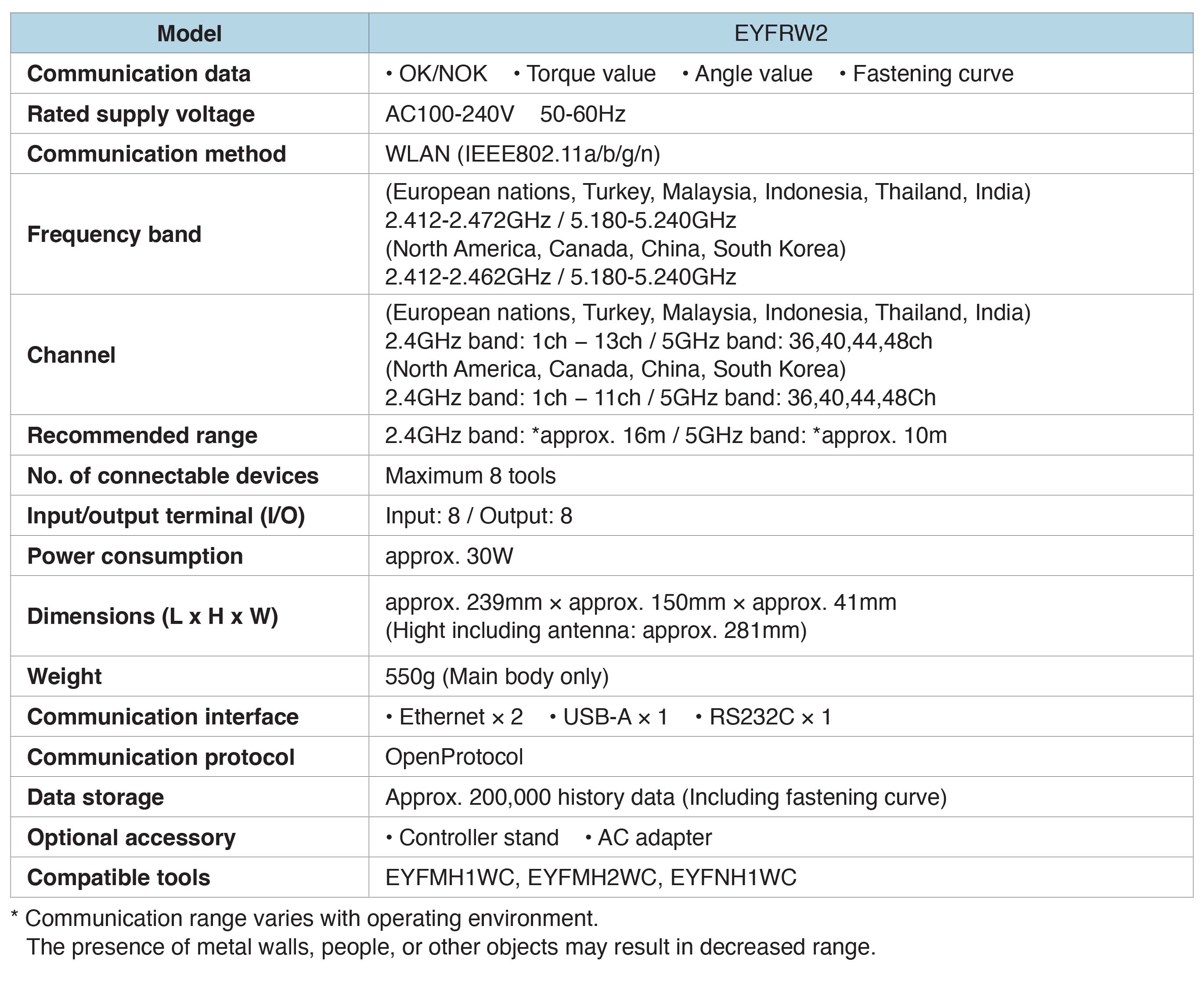

| Model | EYFRW2 |
|---|---|
| Communication data | • OK/NOK • Torque value • Angle value • Fastening curve |
| Rated supply voltage | AC100-240V 50-60Hz |
| Communication method | WLAN (IEEE802.11a/b/g/n) |
| Frequency band |
(European nations, Turkey, Malaysia, Indonesia, Thailand, India) 2.412-2.472GHz / 5.180-5.240GHz (North America, Canada, China, South Korea) 2.412-2.462GHz / 5.180-5.240GHz |
| Channel |
(European nations, Turkey, Malaysia, Indonesia, Thailand, India) 2.4GHz band: 1ch – 13ch / 5GHz band: 36,40,44,48ch (North America, Canada, China, South Korea) 2.4GHz band: 1ch – 11ch / 5GHz band: 36,40,44,48ch |
| Recommended range | 2.4GHz band: *approx. 16m / 5GHz band: *approx. 10m |
| No. of connectable devices | Maximum 8 tools |
| Input/output terminal (I/O) | Input: 8 / Output: 8 |
| Power consumption | approx. 30W |
| Dimensions (L × H × W) | approx. 239mm × approx. 150mm × approx. 41mm (Height including antenna: approx. 281mm) |
| Weight | 550g (Main body only) |
| Communication interface | • Ethernet × 2 • USB-A × 1 • RS232C × 1 |
| Communication protocol | OpenProtocol |
| Data storage | Approx. 200,000 history data (Including fastening curve) |

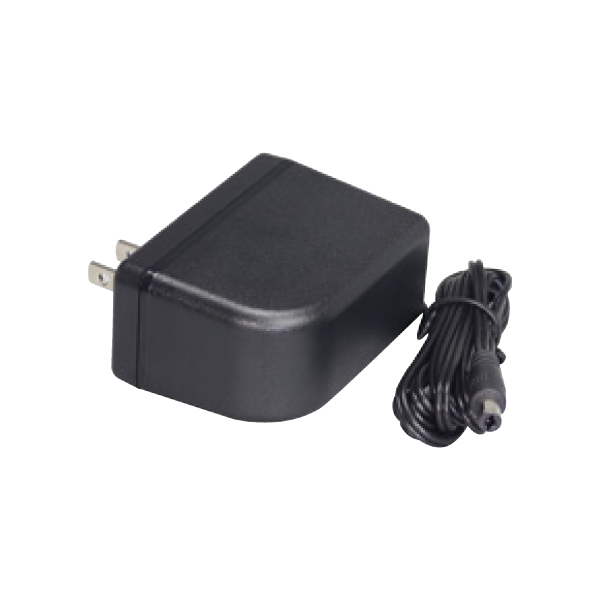

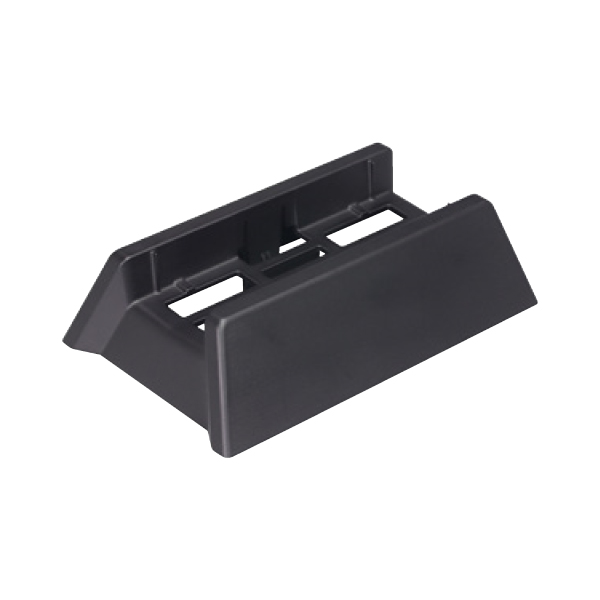

| Optional accessory | • Controller stand • AC adapter |
| Compatible tools | EYFMH1WC, EYFMH2WC, EYFNH1WC |
* Communication range varies with operating environment.
The presence of metal walls, people, or other objects may result in decreased range.
Optional Accessory
Various Technologies for Stable Wireless Communication
Reliable Wireless Solutions
Recommended range
Approx 16m
2.4GHz
Recommended range
Approx 10m
5GHz
Support for both 2.4GHz and 5GHz frequency
To avoid interference, the frequency can be selected according to the usage environment. There is also an auto channel function that automatically selects an empty channel.
High efficiency antenna design
Stable communication performance is achieved by the highly efficient antenna design (average -5dBi) of the diversity antenna on the controller and the transmission module on the tool. Demonstrates high performance with various tool positions and directions.
Safety function in case of communication disconnection
Work history data can be backed up in the tool and resent to the controller even when communication is temporarily disconnected, allowing work to continue.
High security
Communication data is encrypted and protected by TLS.

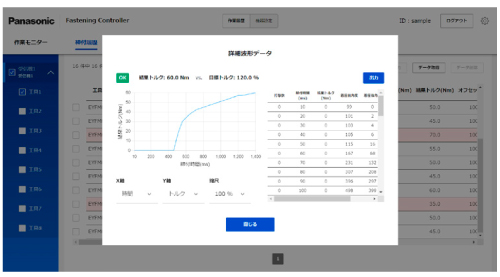

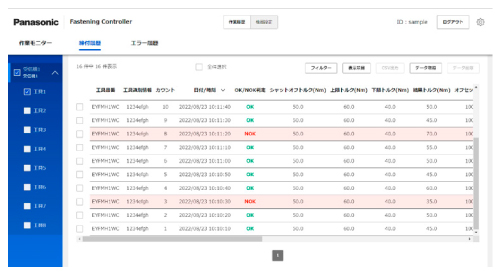

Manage Easily via Your Browser
Setting and viewing from a web browser
Tool/controller settings and work history data viewing can be done from a web browser.
No software installation required on your PC.

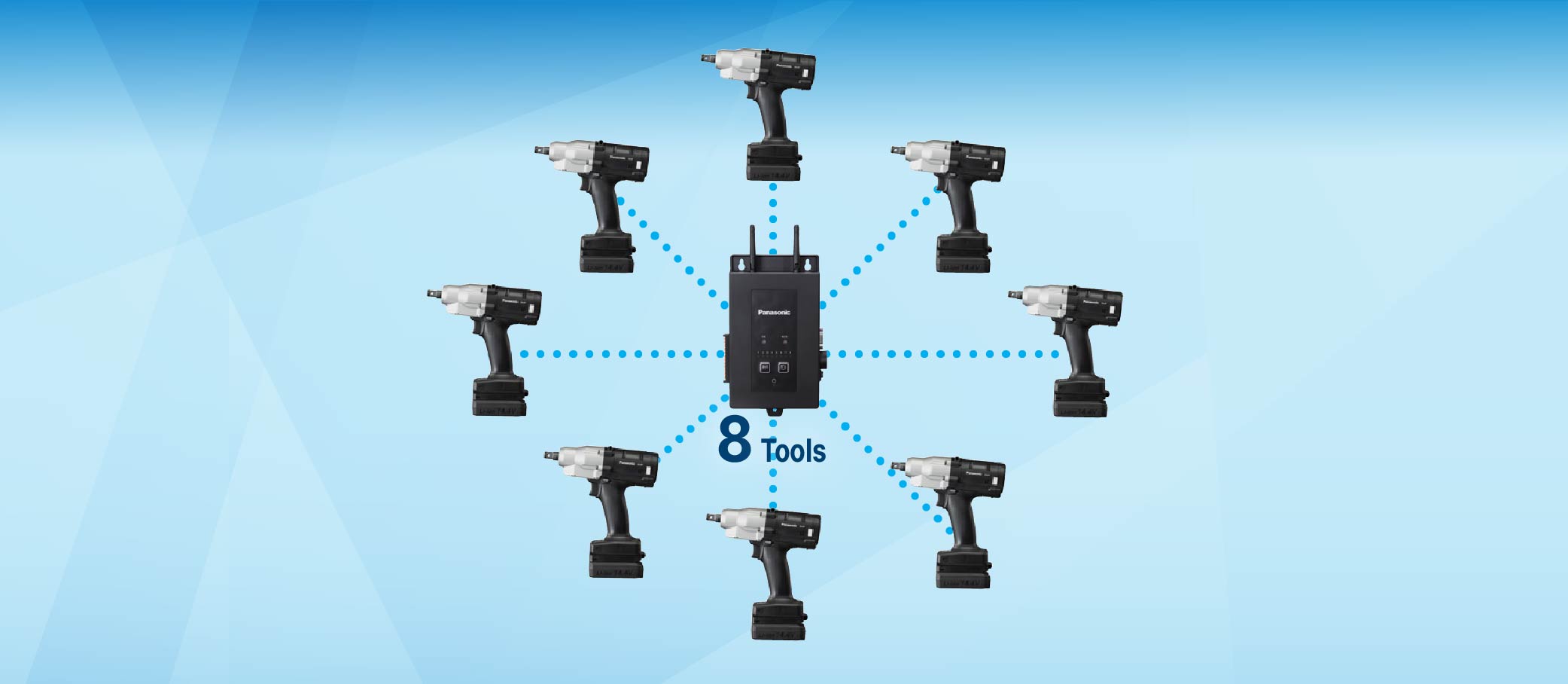

Manage 8 Tools at Once
Maximum 8 tools simultaneous control
Simultaneously control the operations of up to 8 tools and collect work history data.

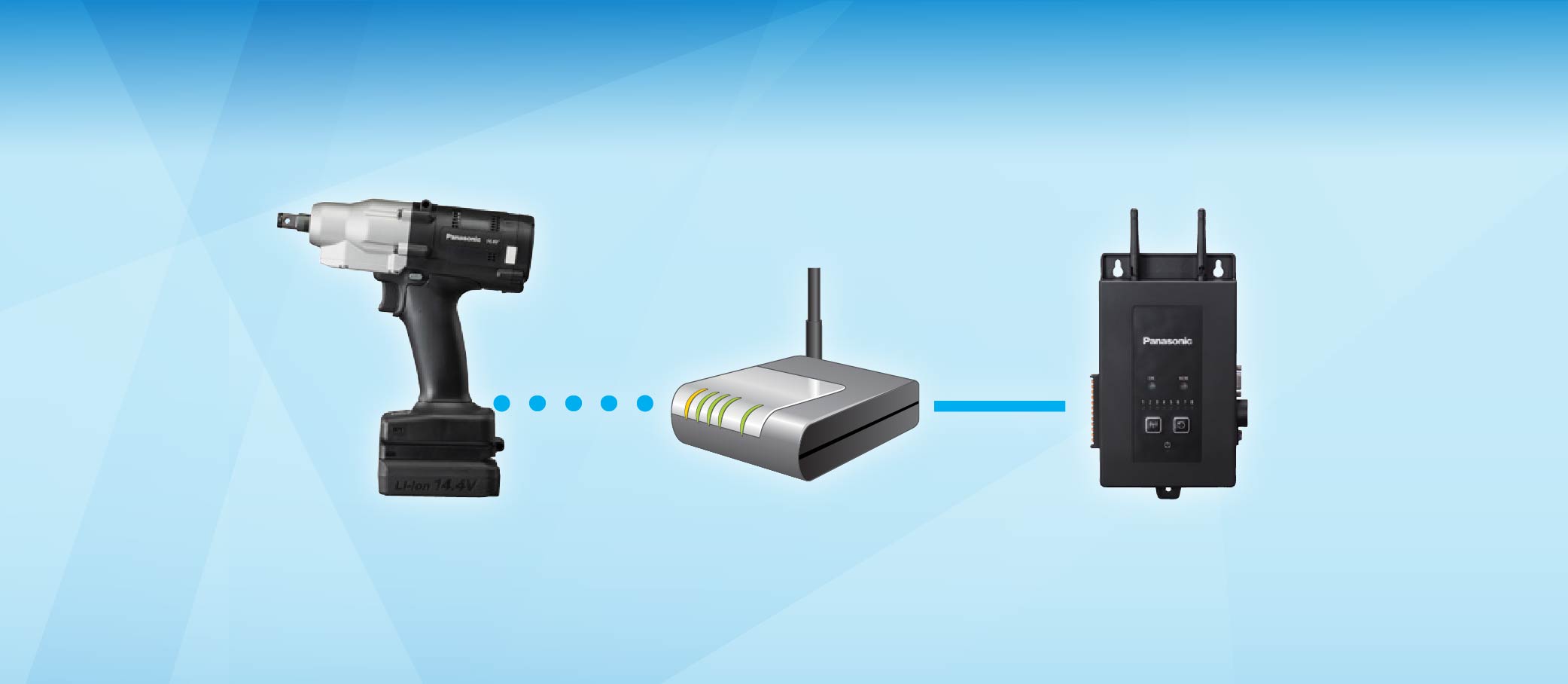

Access Point Ready
WLAN access point compatible
Supports communication via general WLAN access points.
Tools can be used regardless of where the controller is installed.
Compatible models:IEEE.802.11a/b/g/n compliant WLAN access points

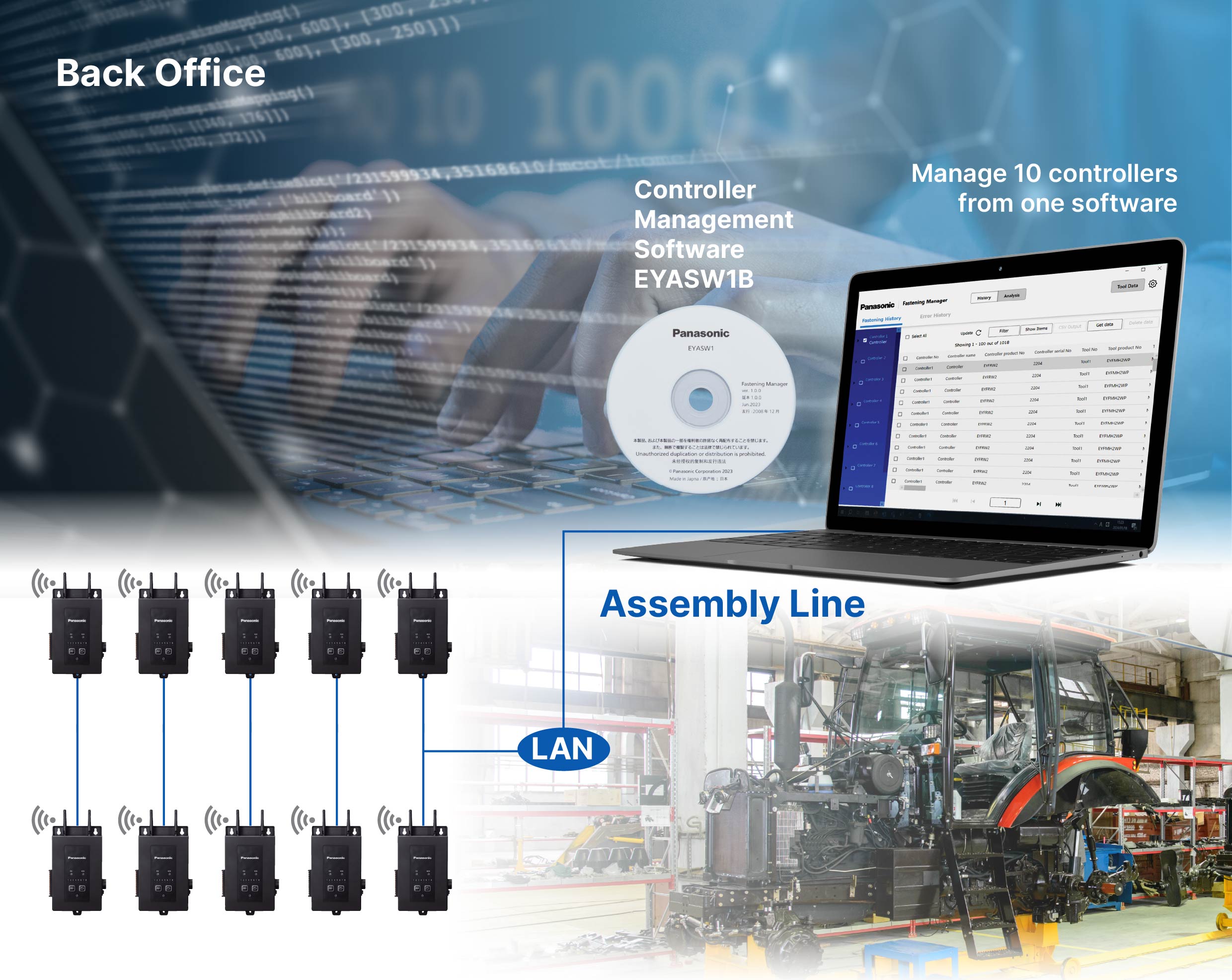

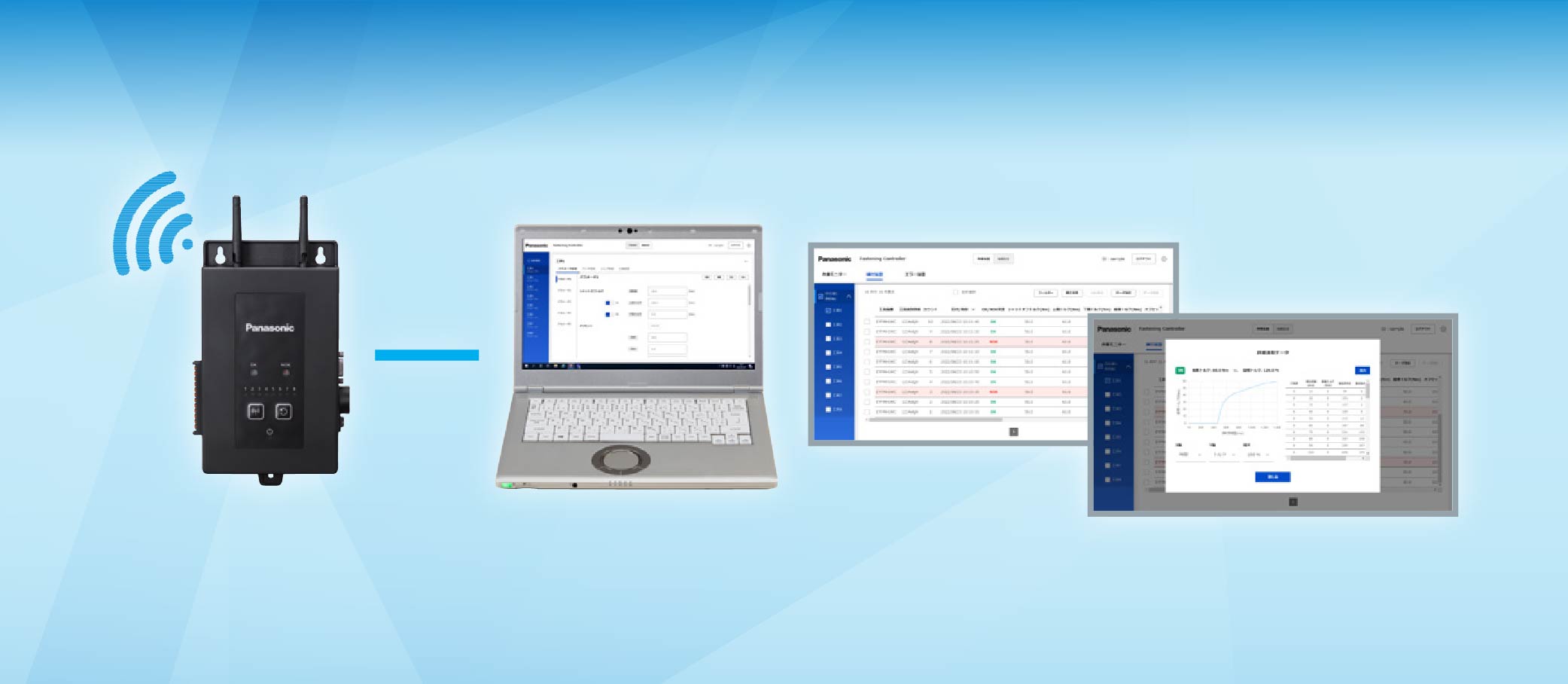

Controller Management Software
Optional software is available for
managing traceability data from up to 10 controllers
04
Operating environment and specifications
(Controller Management Software)
| Model | EYASW1B | |
|---|---|---|
| Operating environment | Compatible OS | Windows10 (64 bit) or later |
| Compatible PC (CPU) | 2.0 GHz, 4 or 2 cores, 4 or more logical processors | |
| Storage | 8 GB or more | |
| Recommended hard disk capacity | SSD 100 GB or more | |
| Recommended resolution | 1024 × 768 or more | |
| Interface |
Optical drive (for software installation) USB Type-A (for license authentication) Ethernet port (for communication with a controller) |
|
| Specifications | Software environment | .NET Core 3.1 |
| Number of storable data | Maximum 40 million fastening history data | |
| Number of registrable controllers | Maximum 10 controllers | |
| Security | USB key activation | |
| Supported language | English, Japanese | |
| Standard accessory | USB dongle key × 1 | |
| Applicable controllers | EYFRW2 *Including varieties | |
What you can do with the controller management software
01
Fastening History Data Management
Maximum 40 million fastening history data collected from up to 10 controllers (80 tools) can be stored in one software.
Your PC doesn't have to be in the same place with the controllers when the PC and controllers are in the same local area network.
02
Fastening History Data Analysis
The worst 5 tools with the highest NOK rate or number of reverse fastenings (reworks) can be shown and you can easily find the bottleneck tasks. Trend changes in torque, fastening time, number of rotation in a fastening, and OK rate can be monitored over time.
03
Tool Status Management

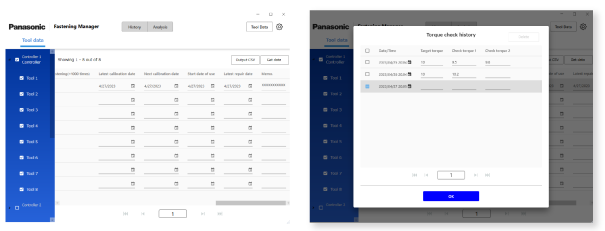

You can record the usage history of the tools such as its start date of use, cumulative number of fastening works and latest repair date. Also, torque check history of the tools can be recorded as the evidence of the tool performance check.
