Shut-off Impact Driver & Wrench with Wireless Communication
FEATURES
Precision You Can Trust
01
Panasonic Quality Control Monitoring
Realiable Quality Control System
With highly efficient tools and qualifiers, Panasonic offers a reliable Quality Control System

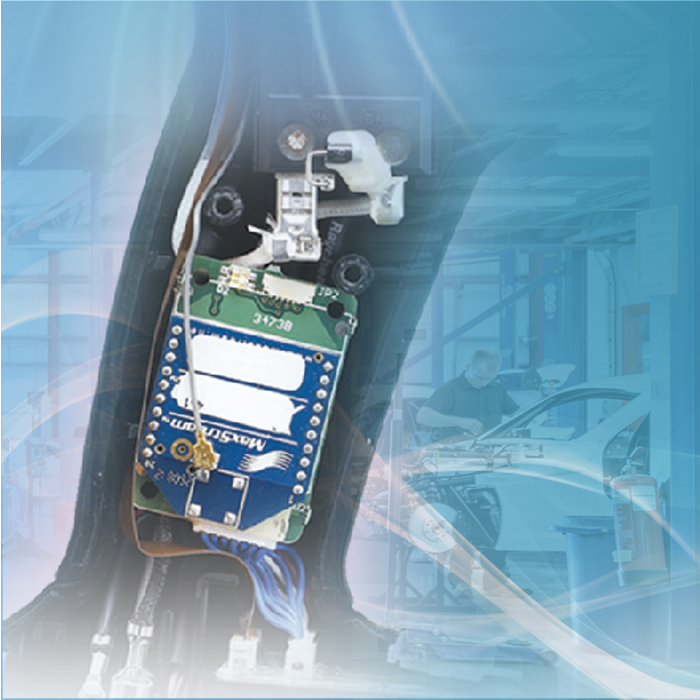

The transmitter is completely stored in the tool’sip part. Same tool body size and only approx. 15g more weight compared to the Non Wireless Communication model.

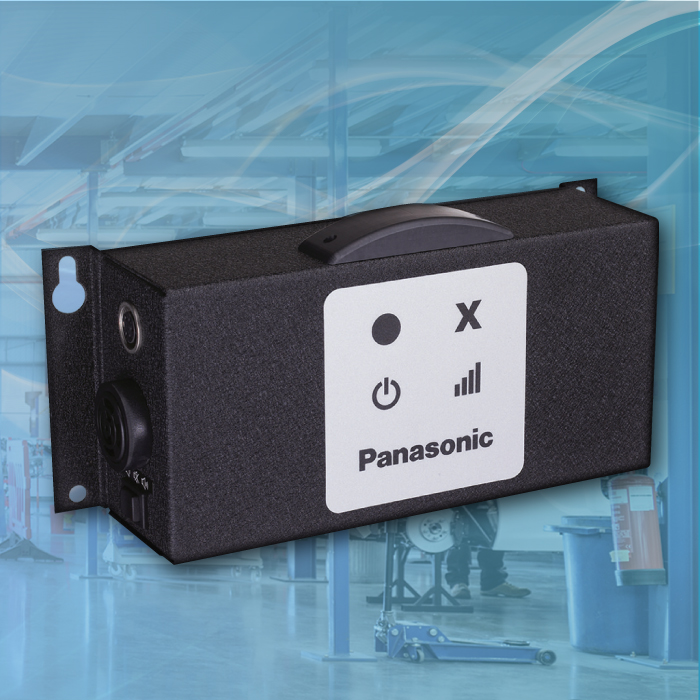

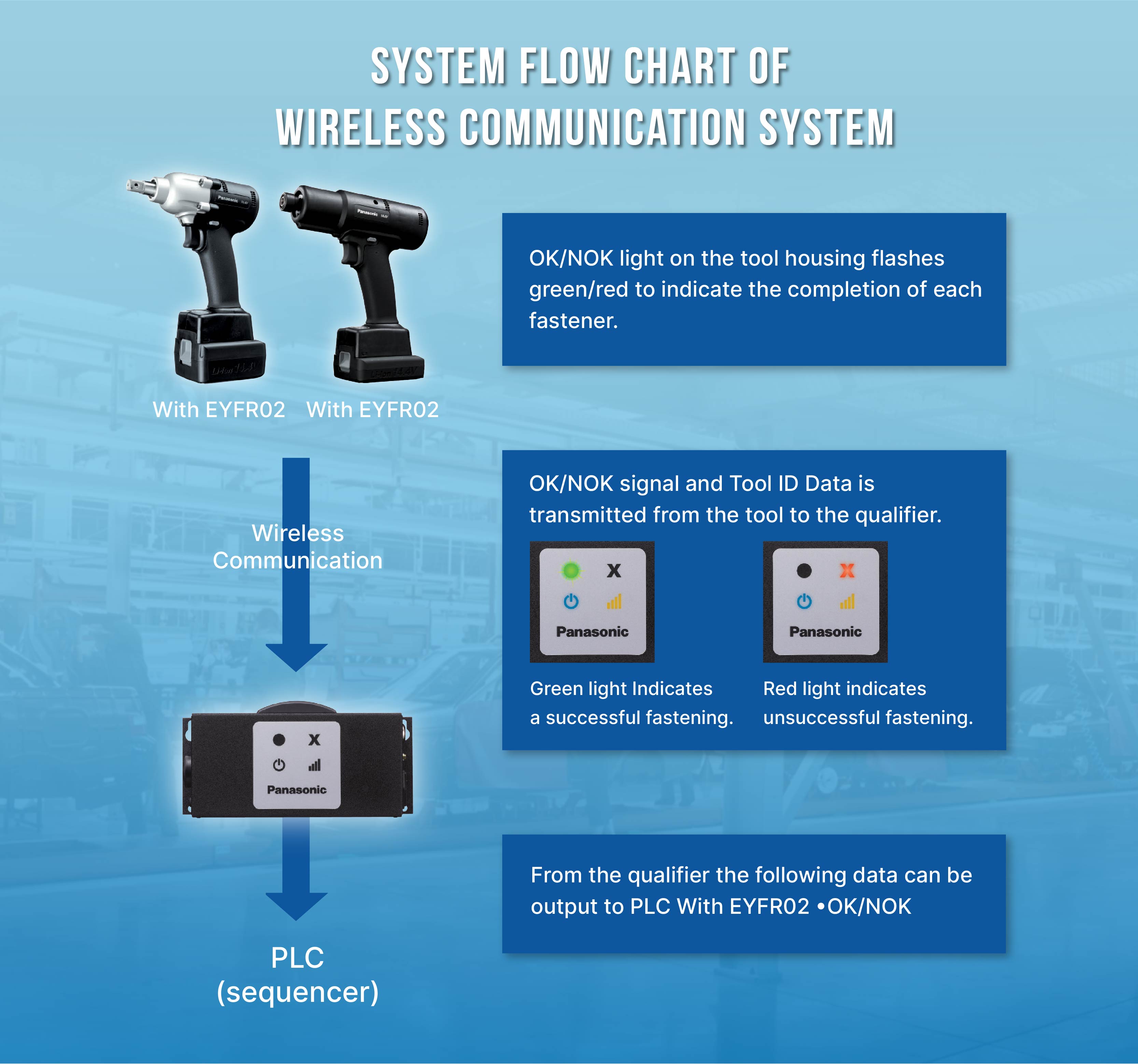

Panasonic Wireless Communication System
Seamless Wireless Connectivity
Functionality Chart
(Combination of tool body and accessories)
Optimize Your Tool Usage
| Improving fastening quality with Torque Control | Transmission of OK/NOK signal |
Storing the OK/NOK signal data *The data is stored in a computer |
|
|---|---|---|---|
|
Tool body +  +
 +
PLC |
|||
|
Tool body only
|
Advanced Wireless Communication Features
Ensuring Reliable Operation and Safety

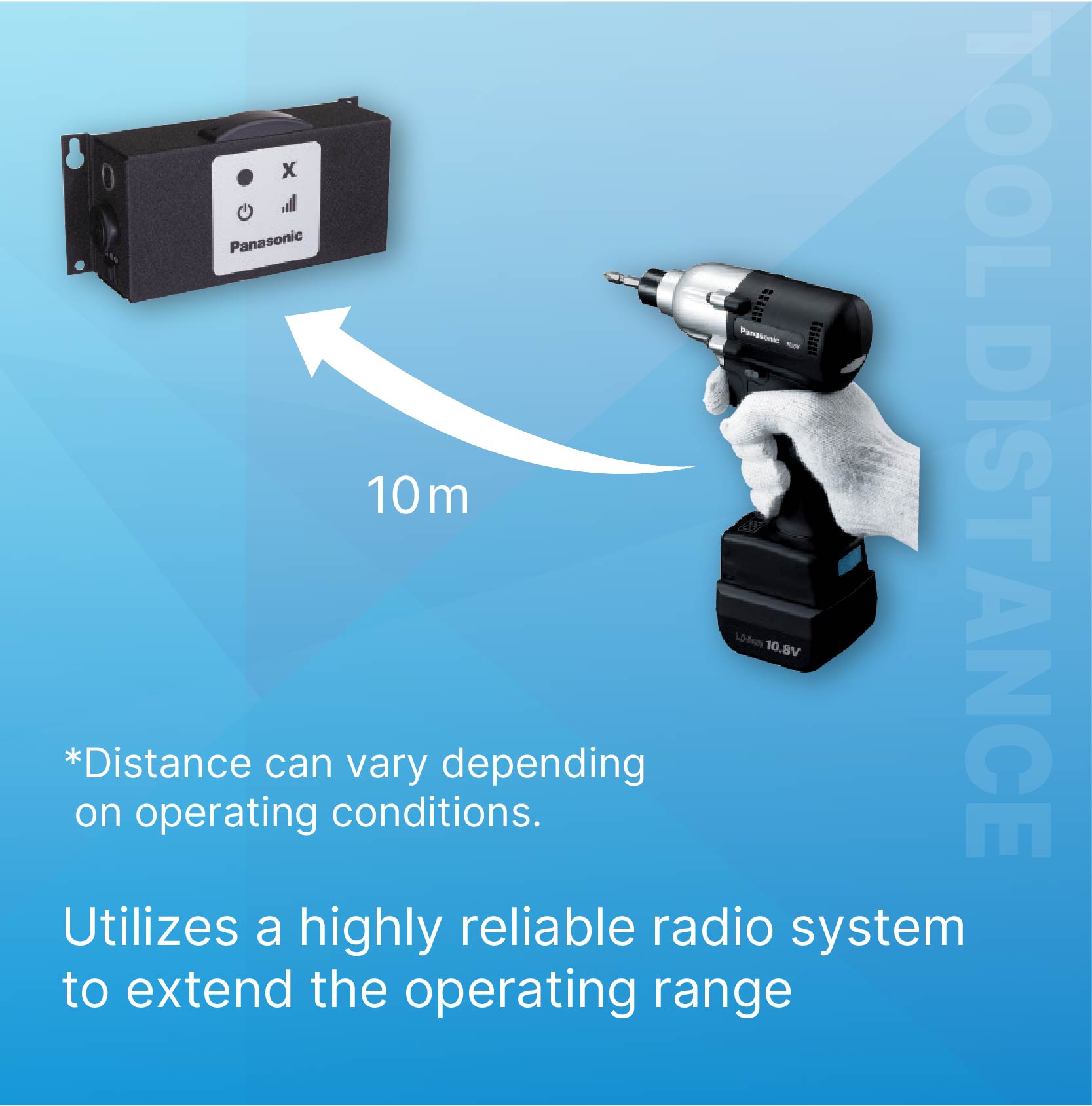

Tool Distance
A highly reliable data signal can be transmitted if the tool is within 10m of the assembly qualifier and if there are no barriers between the tool and qualifier.

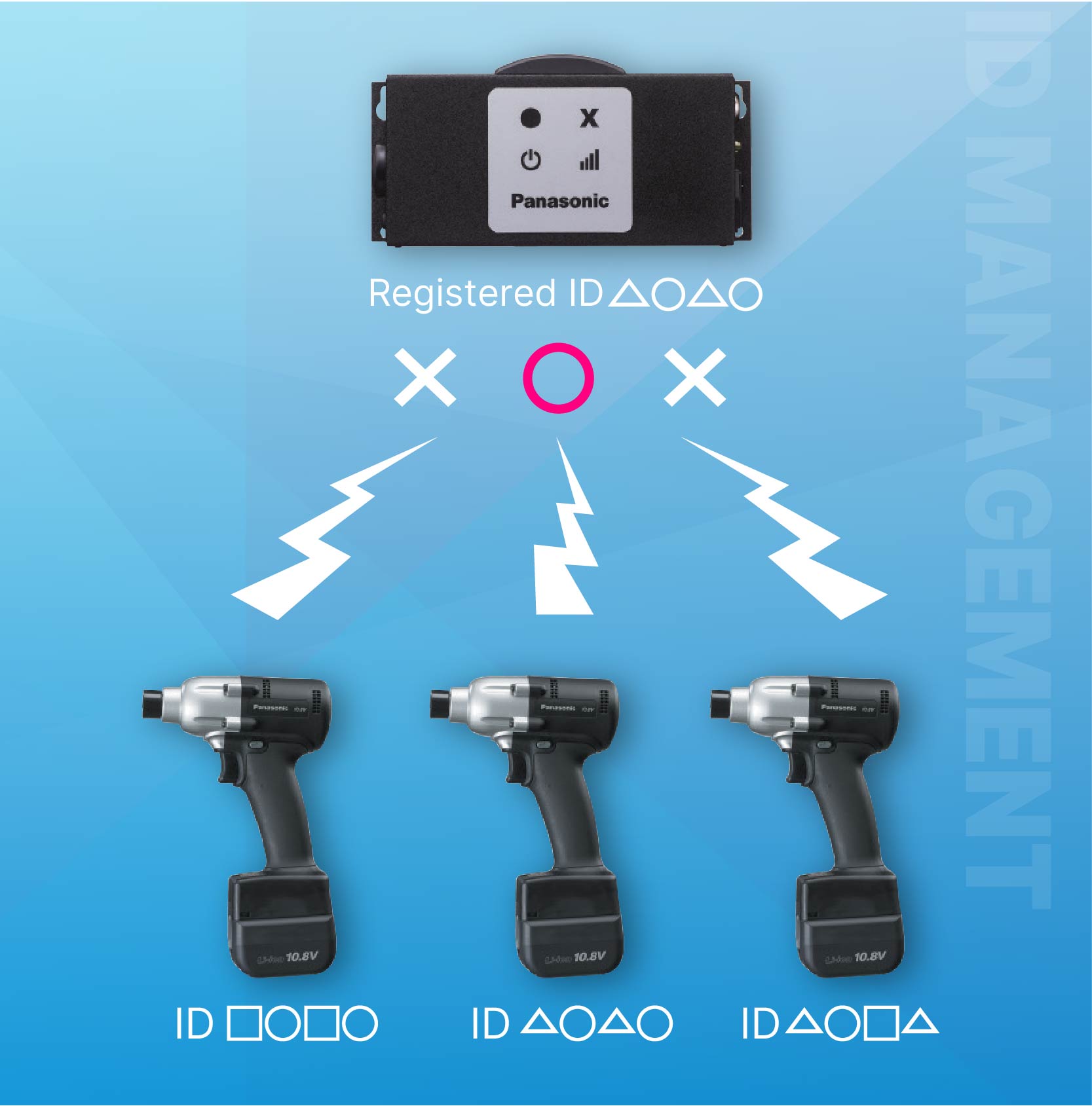

ID management is not required
The qualifiers accept only registered ID. There is no interference even when multiple tools are used on the production line.

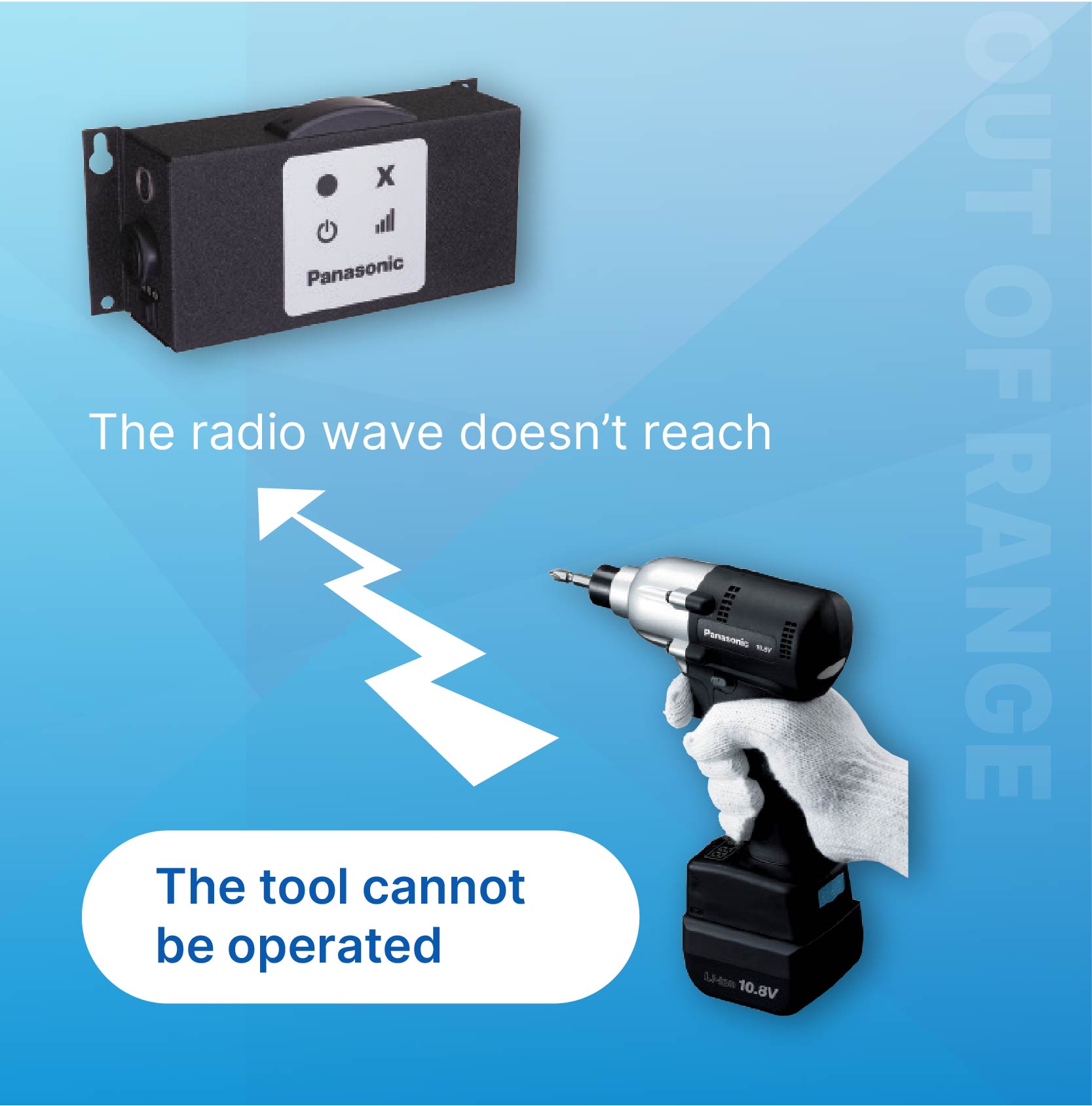

Out of Range Disable Function
In the event that wireless communication cannot be completed between the tool and the qualifier, the tool will be disabled and cannot be operated. Operation of this function is set on the tool body with remote control.

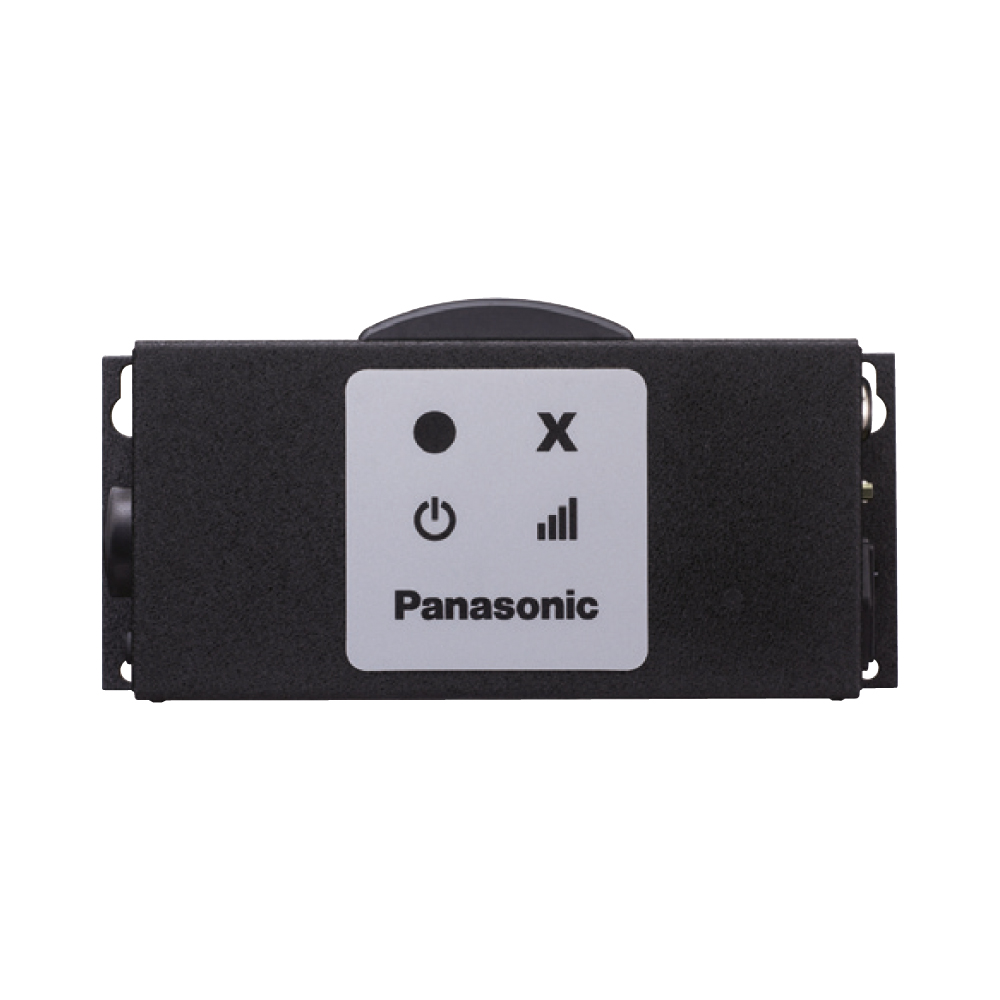

Wireless Communication System Specification
Convenient Specs for Reliable Performance
| EYFR02B | Recommended range | 10m* | |
|---|---|---|---|
|
Rated supply voltage | AC100-230V, 50/60Hz | |
| Power consumption | 4.4W – 4.6W | ||
| No. of connected devices | 1 | ||
| Communication Data | OK/NOK signal (Pokayoke) | ||
| Function settings | With PC | ||
| ID settings | With Soft key | ||
| Reset input | 60mA at 24V | ||
| External connection output | 5A at 250VAC or 5A at 30VDC | ||
| Operating temperature range | −10°C (14°F) ~ 60°C (140°F) | ||
| Weight | 1.15kg | ||
| Dimensions (LxHxW) | 254mm x 119mm x 73mm | ||
| Function | Out of range disable function | ● (On/Off of this function can be switched on the tool body) | |
| Fastener count function | – (Needed to be set by external device) | ||
| Compatible tools |
EYFLA4AR, EYFLA5AR, EYFLA5QR, EYFLA6JR, EYFMA1JR, EYFGA1NR, EYFGA2NR, EYFGA3NR |
||
*Communication range varies with operating environment. The presence of metal walls, people, or other objects may result in decreased range.
Important Communication Considerations
There is a risk of less communication range and/or communication error in conditions as below
- Obstacle to disturb radio wave such as metals and/or reinforced concrete between tool and qualifier
- Metal cover on qualifier's antenna
- Operator’s body between tool and qualifier
- Devices creating radio noise such as PC and/or mobile phone near tool and/or qualifier
*If strength of radio signal is weak and/or qualifier’s reaction speed is slow, change qualifier’s location and/or channel setting.
PRODUCT SPECIFICATION
02
10.8V/ 14.4V Shut-off Impact Driver & Wrench
with Wireless Communication
Applicable bit size for quick change chuck
|
Cordless Impact Driver | Cordless Impact Wrench | ||

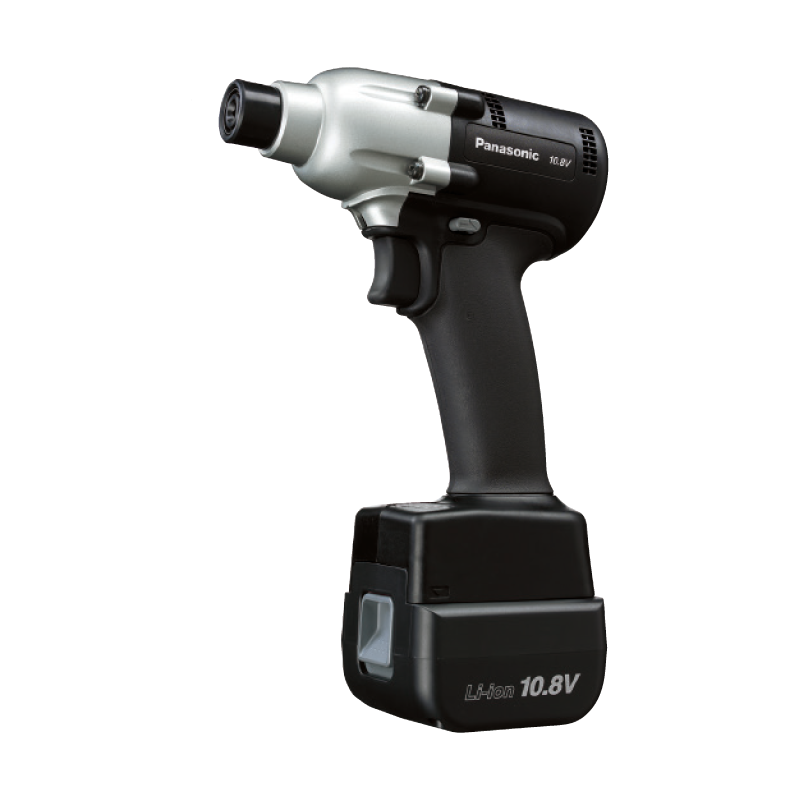

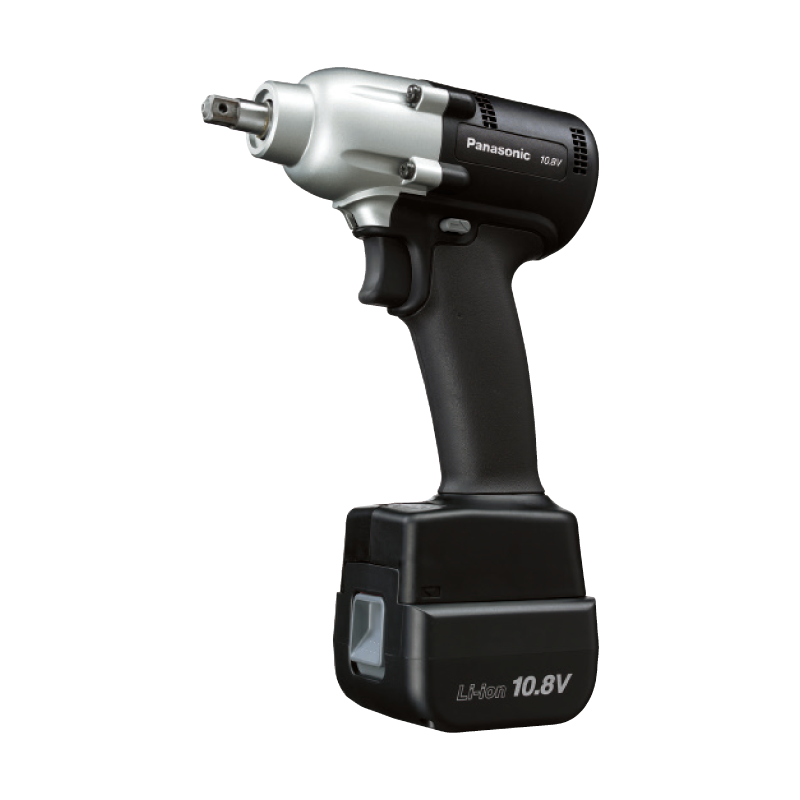

| EYFLA4AR | EYFLA5AR | EYFLA5QR | ||
10.8V
Wireless Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Wireless Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
10.8V
Wireless Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
||
| Chuck / Anvil type | 1/4” Hex quick change | 1/4” Hex quick change | 9.5mm Sq. drive Pin-hole | |
|---|---|---|---|---|
| Application | Screw M5•M6 (Normal-Tensile bolt) M8 bolt (Normal bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal bolt) |
M6 bolt (Tensile bolt) M8 bolt (Normal bolt) |
|
| Maximum torque (F mode, fastening 3 sec.) | approx. 40 N·m (M10 bolt) | approx. 90 N·m (M14 bolt) | approx. 90 N·m (M14 bolt) | |
| Shut-off range | approx. 3 ~ 22 N·m | approx. 6 ~ 30 N·m | approx. 6 ~ 30 N·m | |
| Torque setting | 30 stage + F (without torque setting mode) | |||
| Snug torque detection mode setting | L1: For lighter loads during fastener run down L2: For prevailing torque during run down and varying joint rate applications |
|||
| No load speed (unit : rpm) |
stage1: 0 ~ 950 stage2: 0 ~ 1300 stage3: 0 ~ 1450 stage4 ~ 8: 0 ~ 1550 stage9 ~ 30•F: 0 ~ 2300 |
stage1: 0 ~ 1300 stage2: 0 ~ 1450 stage3: 0 ~ 1550 stage4 ~ 30•F: 0 ~ 2300 |
stage1: 0 ~ 1300 stage2: 0 ~ 1450 stage3: 0 ~ 1550 stage4 ~ 30•F: 0 ~ 2300 |
|
| Impact per minute | stage1: 0 ~ 1900 stage2: 0 ~ 2500 stage3: 0 ~ 2800 stage4 ~ 8: 0 ~ 3000 stage9 ~ 30•F: 0 ~ 4000 |
stage1: 0 ~ 2500 stage2: 0 ~ 2800 stage3: 0 ~ 3000 stage4 ~ 30•F: 0 ~ 3600 |
stage1: 0 ~ 2500 stage2: 0 ~ 2800 stage3: 0 ~ 3000 stage4 ~ 30•F: 0 ~ 3600 |
|
| Weight*1 (inc. battery) |
EYFB30B | approx. 1.3kg | ||
| EYFB32B | approx. 1.15kg | |||
| EYFB43B | — | |||
| EYFB41B | — | |||
| Size | Length | 158mm | 158mm | 164mm |
| Height | 248mm (EYFB30B), 231mm (EYFB32B) | |||
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | |||
| Function | Wireless communication | ✓ | ||
| LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | |||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | |||
| Retightening prevention function | ✓ (Possible to set between 0 ~ 3 sec.. 0.1 sec. per stage) | |||
| Battery indication lamp | ✓ (3 stages) | |||
| Auto battery shutdown | ✓ | |||
| Work capacity / Fastening speed |
<M6: 10 N·m, Stage: 19> (EYFB30B) approx. 1200 pcs/pack approx. 0.7 sec/1pcs (EYFB32B) approx. 800 pcs/pack approx. 0.7 sec/1pcs |
<M8: 23 N·m, Stage: 22> (EYFB30B) approx. 800 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 540 pcs/pack approx. 0.8 sec/1pcs |
<M8: 23 N·m, Stage: 22> (EYFB30B) approx. 800 pcs/pack approx. 0.8 sec/1pcs (EYFB32B) approx. 540 pcs/pack approx. 0.8 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
|||
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.
Applicable bit size for quick change chuck
|
Cordless Impact Wrench | ||

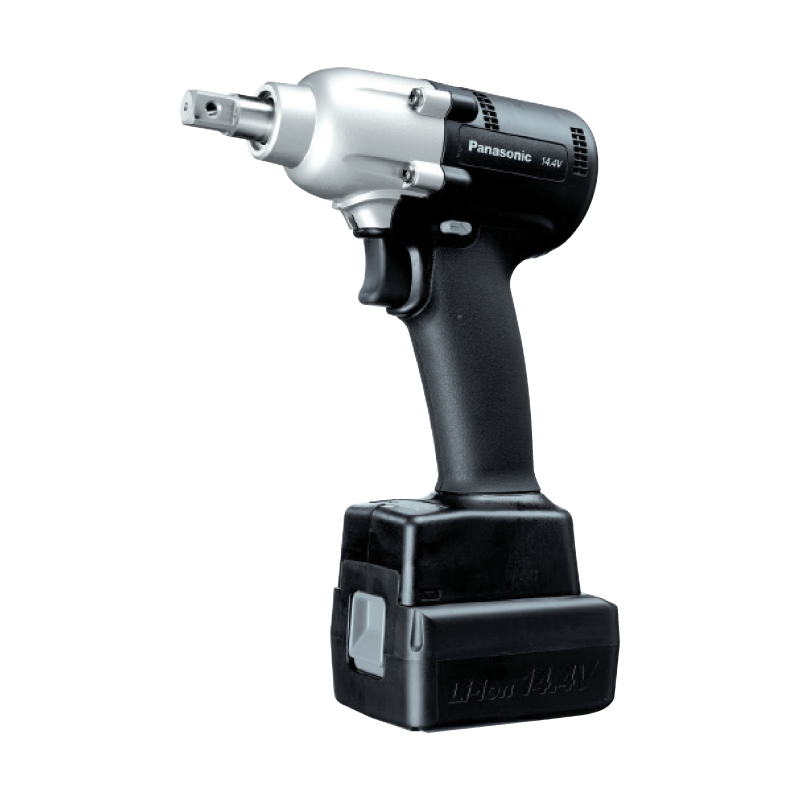

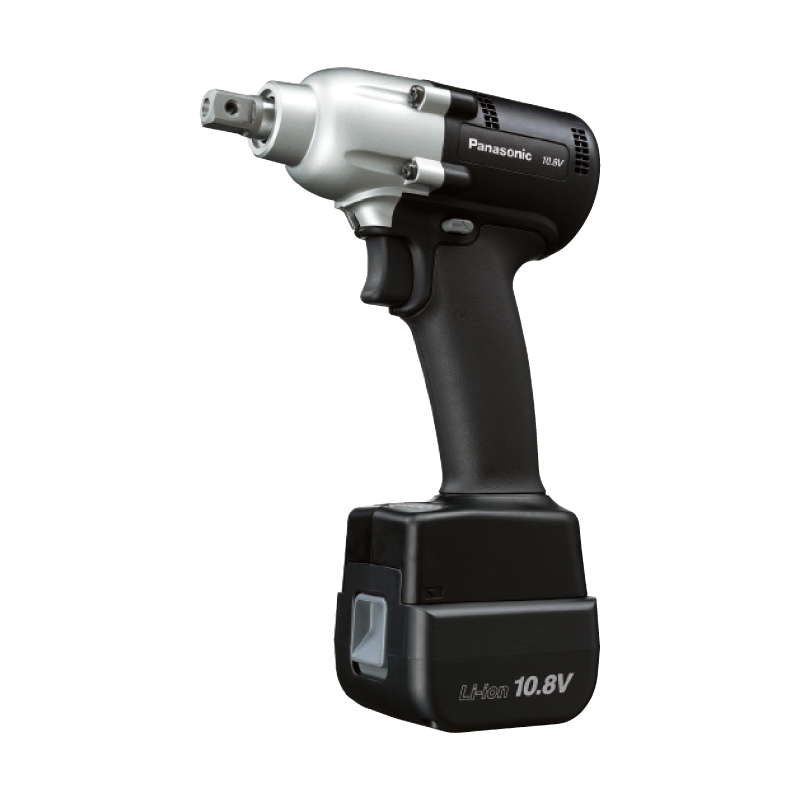

| EYFLA6JR | EYFMA1JR | ||
10.8V
Wireless Brushless
Motor 3.0Ah
2.0Ah
*Battery pack is not included |
14.4V
Wireless Brushless
Motor 4.0Ah
2.0Ah
*Battery pack is not included |
||
| Chuck / Anvil type | 12.7mm Sq. drive Pin-hole | 12.7mm Sq. drive Pin-hole | |
|---|---|---|---|
| Application |
M8 bolt (Tensile bolt) M10 bolt (Normal bolt) |
M10 bolt (Tensile bolt) M12 bolt (Normal-Tensile bolt) M14 bolt (Normal bolt) |
|
| Maximum torque (F mode, fastening 3 sec.) | approx. 120 N·m (M14 bolt) | approx. 185 N·m (M16 bolt) | |
| Shut-off range | approx. 16 ~ 53 N·m | approx. 25 ~ 100 N·m | |
| Torque setting | 30 stage + F (without torque setting mode) | ||
| Snug torque detection mode setting | L1: For lighter loads during fastener run down L2: For prevailing torque during run down and varying joint rate applications |
||
| No load speed (unit : rpm) |
0 ~ 2300 | 0 ~ 2300 | |
| Impact per minute | 0 ~ 3000 | 0 ~ 3200 | |
| Weight*1 (inc. battery) |
EYFB30B | approx. 1.4kg | — |
| EYFB32B | approx. 1.25kg | — | |
| EYFB43B | — | approx. 1.5kg | |
| EYFB41B | — | approx. 1.3kg | |
| Size | Length | 172mm | |
| Height | 248mm (EYFB30B), 231mm (EYFB32B) | 248mm (EYFB43B), 231mm (EYFB41B) | |
| Width | approx. 59mm (Width of battery pack: approx. 75mm) | ||
| Function | Wireless communication | ✓ | |
| LED light | ✓ (ON/OFF switch, Light turns off after five minutes automatically) | ||
| Tightening confirmation lamp | ✓ (OK fastening: Green lamp, NOK fastening: Red lamp) | ||
| Retightening prevention function | ✓ (Possible to set between 0 ~ 3 sec.. 0.1 sec. per stage) | ||
| Battery indication lamp | ✓ (3 stages) | ||
| Auto battery shutdown | ✓ | ||
| Work capacity / Fastening speed |
<M10: 43 N·m, Stage: 23> (EYFB30B) approx. 500 pcs/pack approx. 0.9 sec/1pcs (EYFB32B) approx. 330 pcs/pack approx. 0.9 sec/1pcs |
<M12: 71 N·m, Stage: 22> (EYFB43B) approx. 670 pcs/pack approx. 0.9 sec/1pcs (EYFB41B) approx. 350 pcs/pack approx. 0.9 sec/1pcs |
|
| Charging time |
(Battery pack EYFB30B, Charger EY0L82B) Usable charge: approx. 35 min. Full charge: approx. 45 min (Battery Pack EYFB32B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
(Battery pack EYFB43B, Charger EY0L82B) Usable Charge: approx. 45 min. Full Charge: approx. 60 min (Battery Pack EYFB41B, Charger EY0L82B) Usable Charge: approx. 35 min. Full Charge: approx. 40 min |
|
√ Available *1 Weights are described in 0.05kg increment. *There are models limited to particular region.

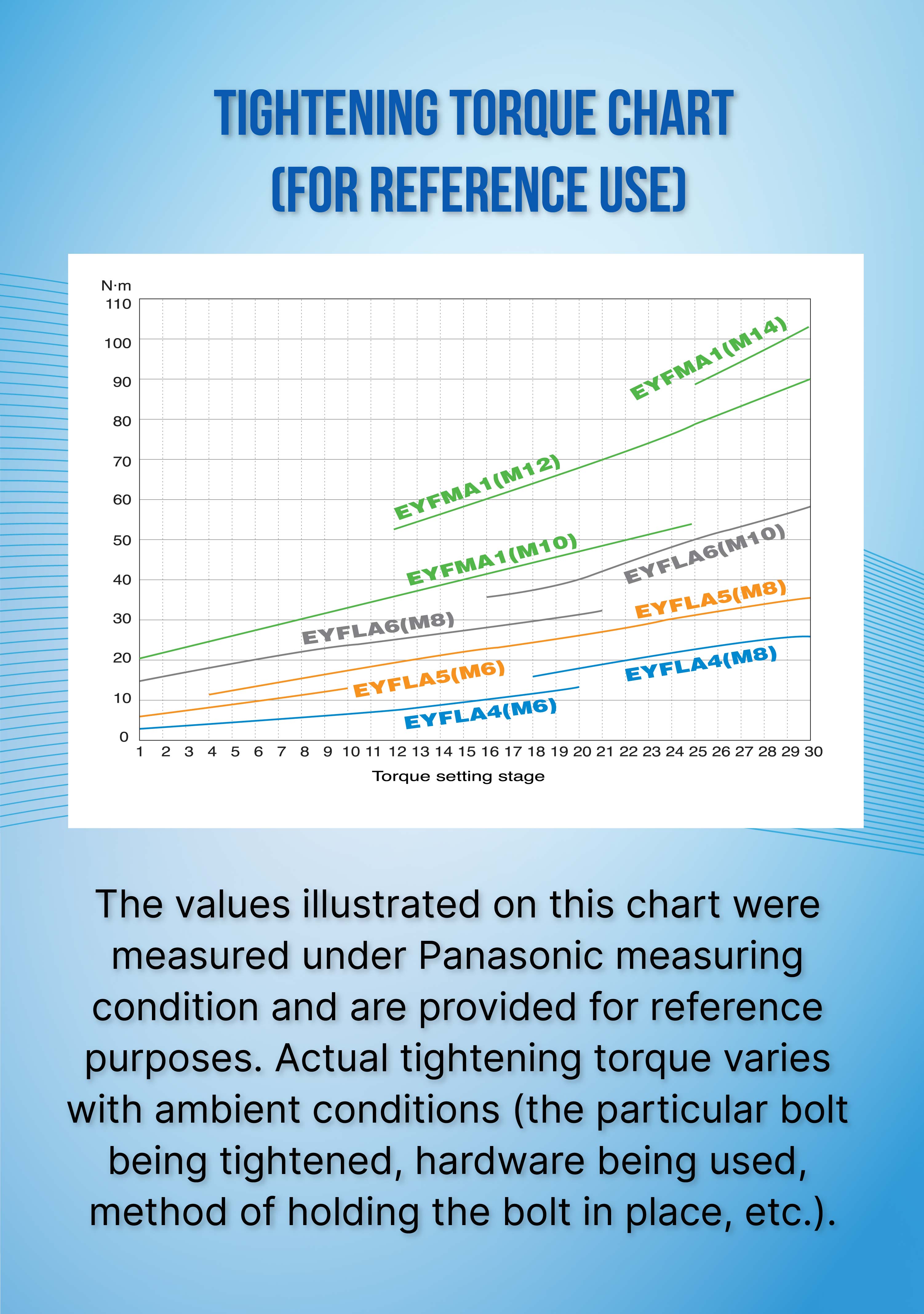

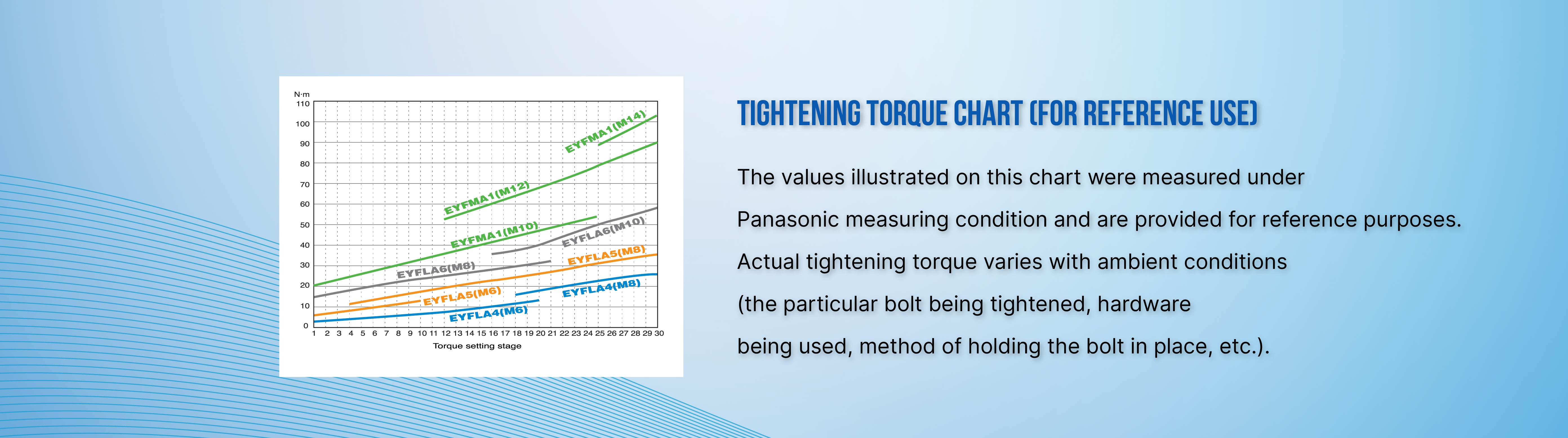

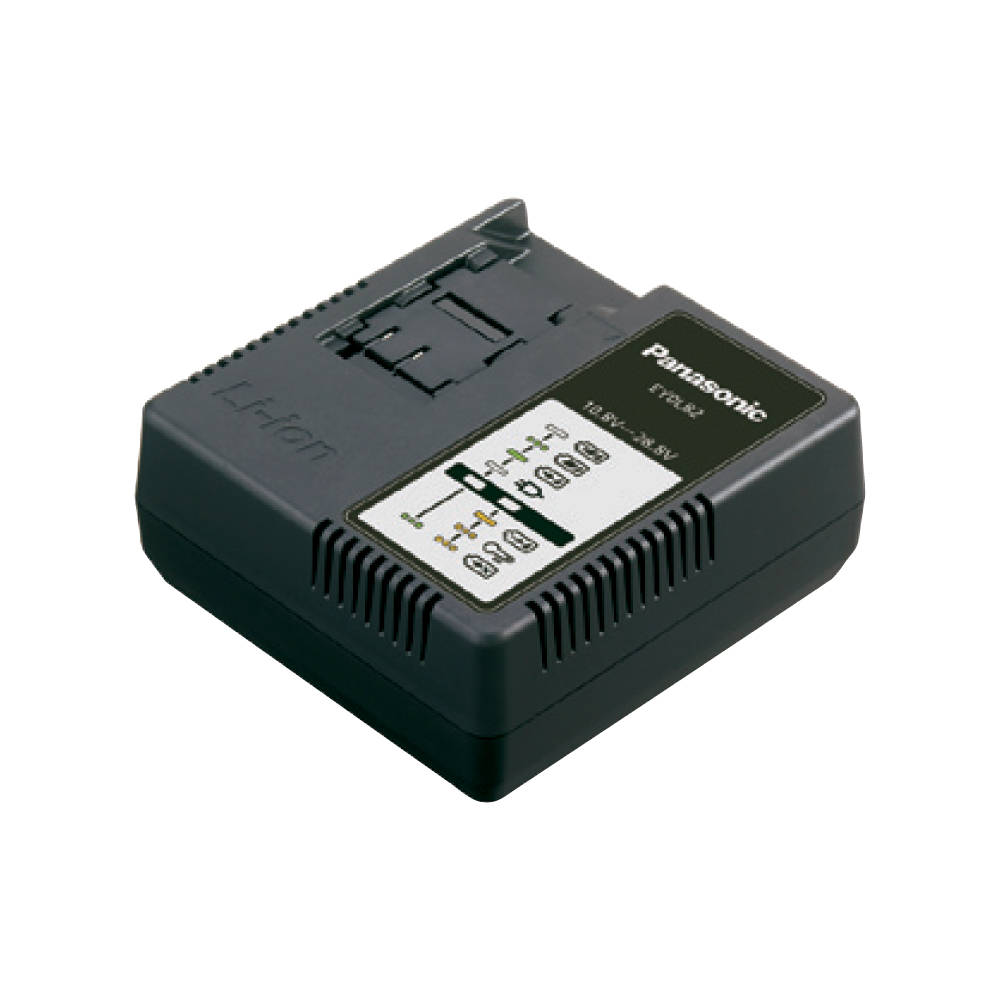

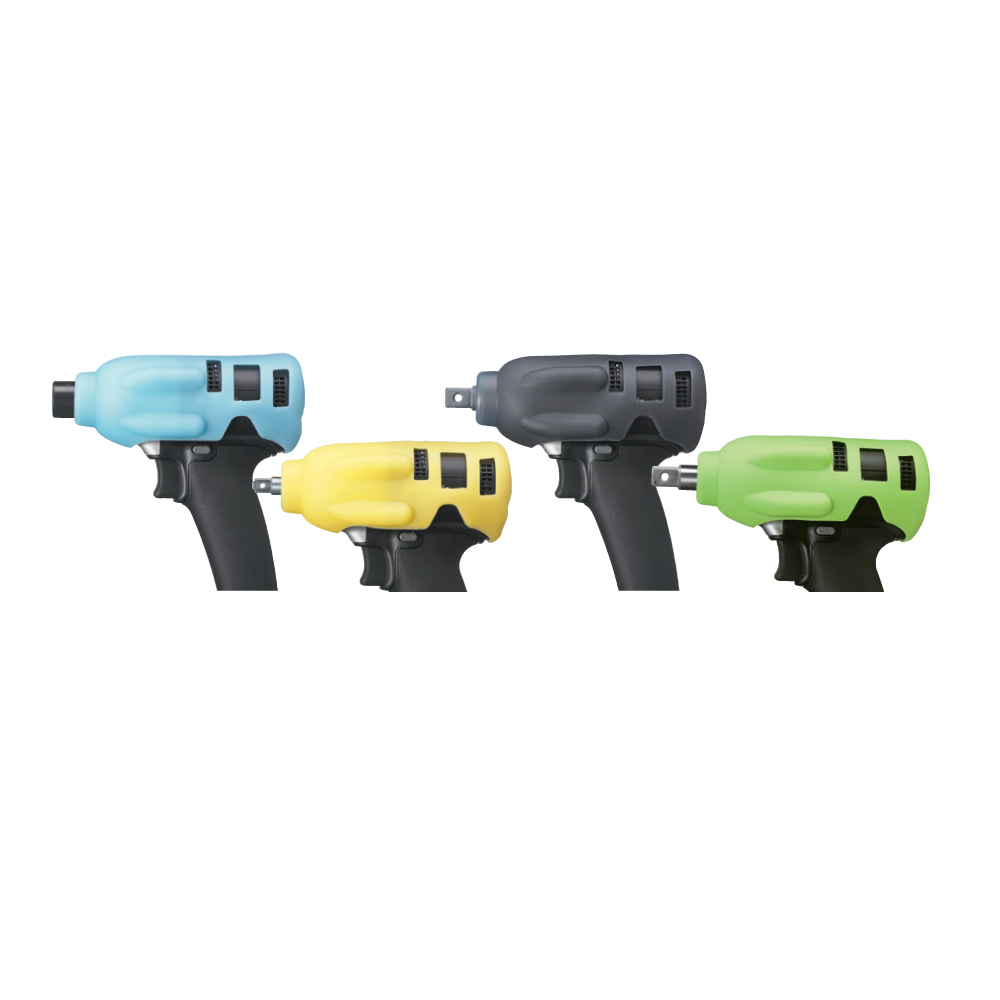

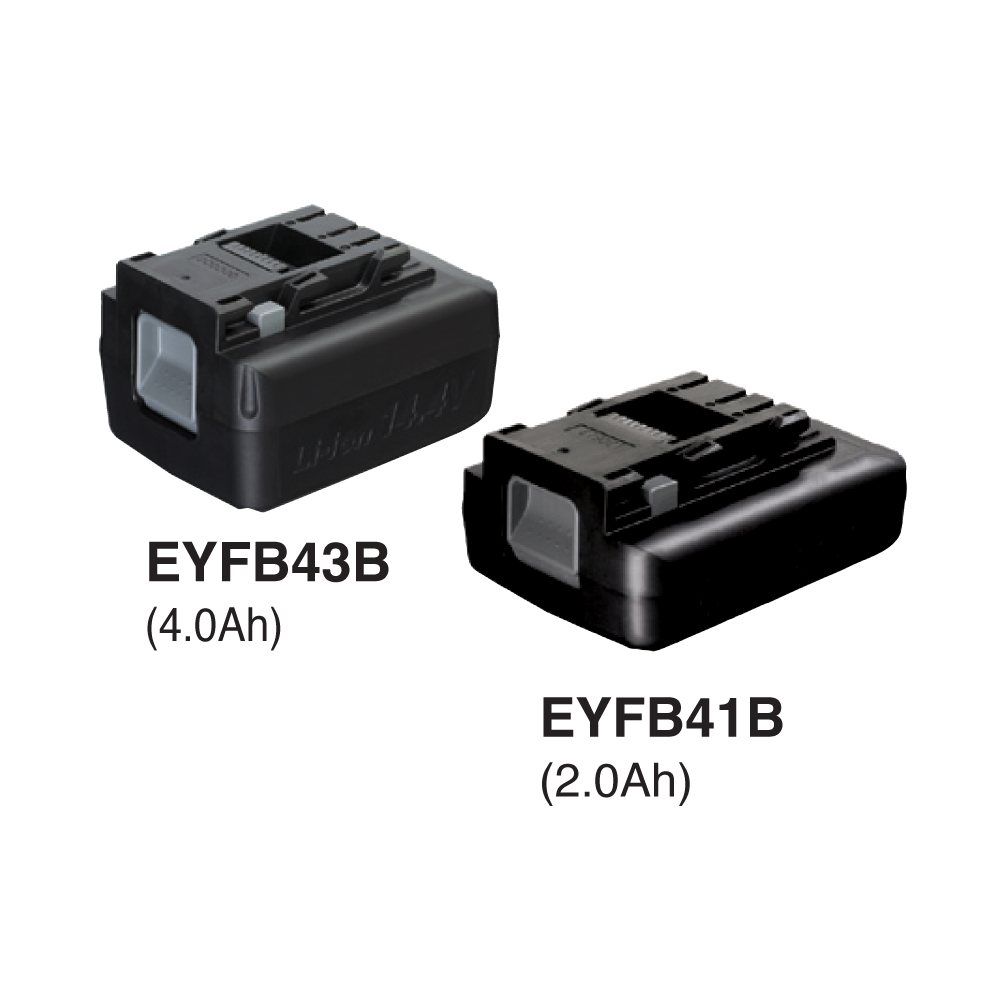

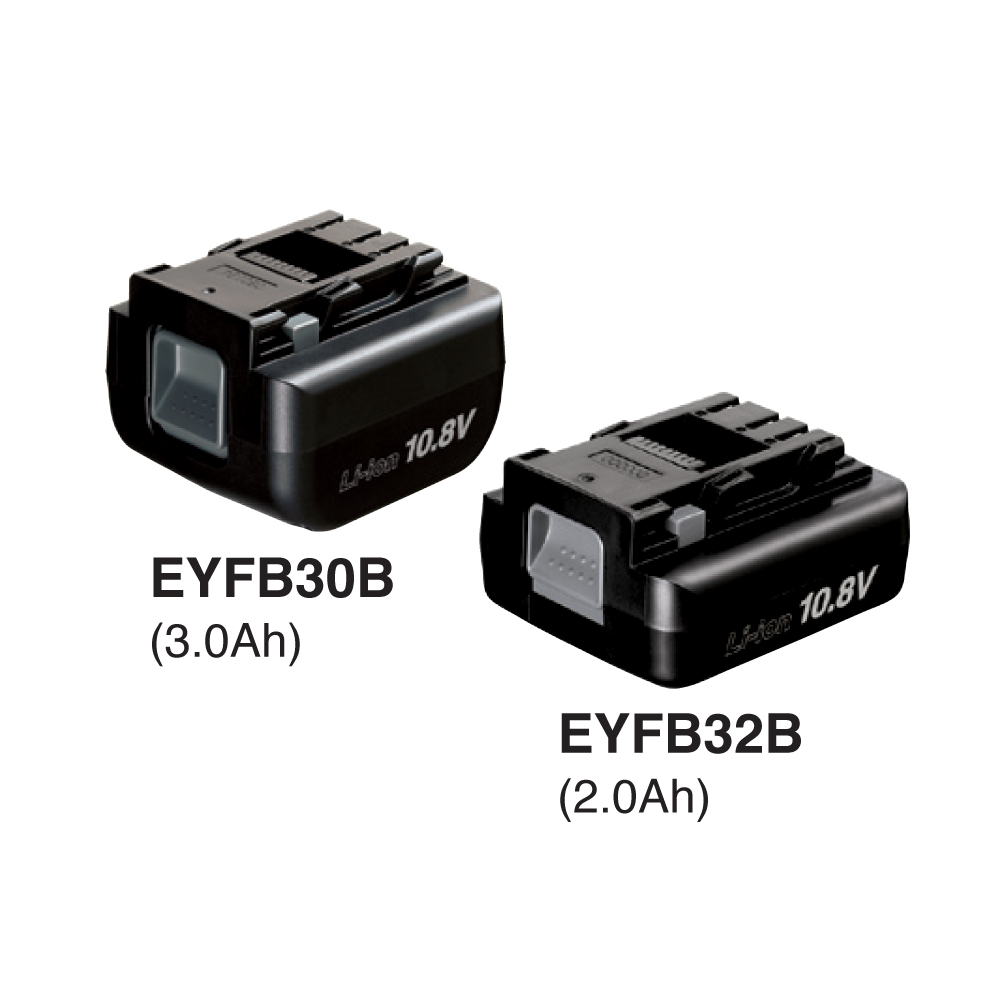

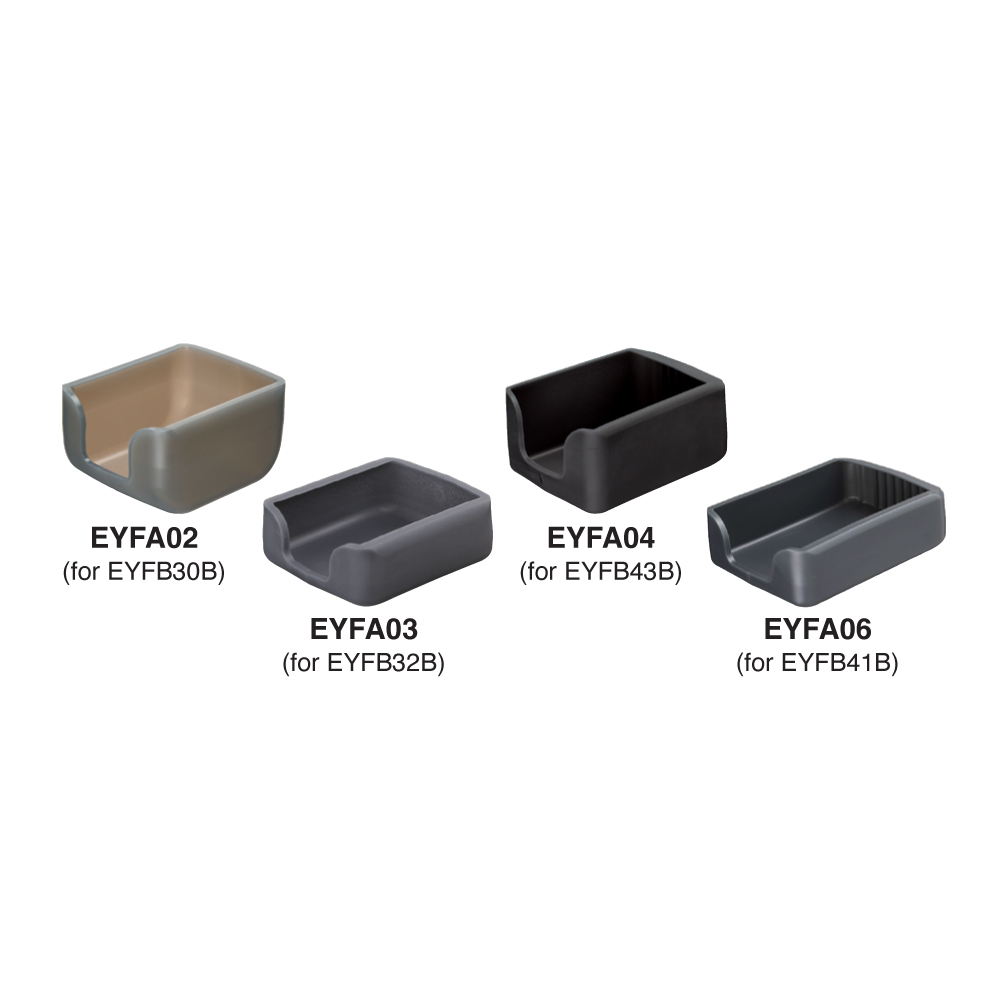

Optional Accessory
